Manage Device Security
331
Insight Managed 28-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP 1G & 2 SFP+ 10G Fiber Ports

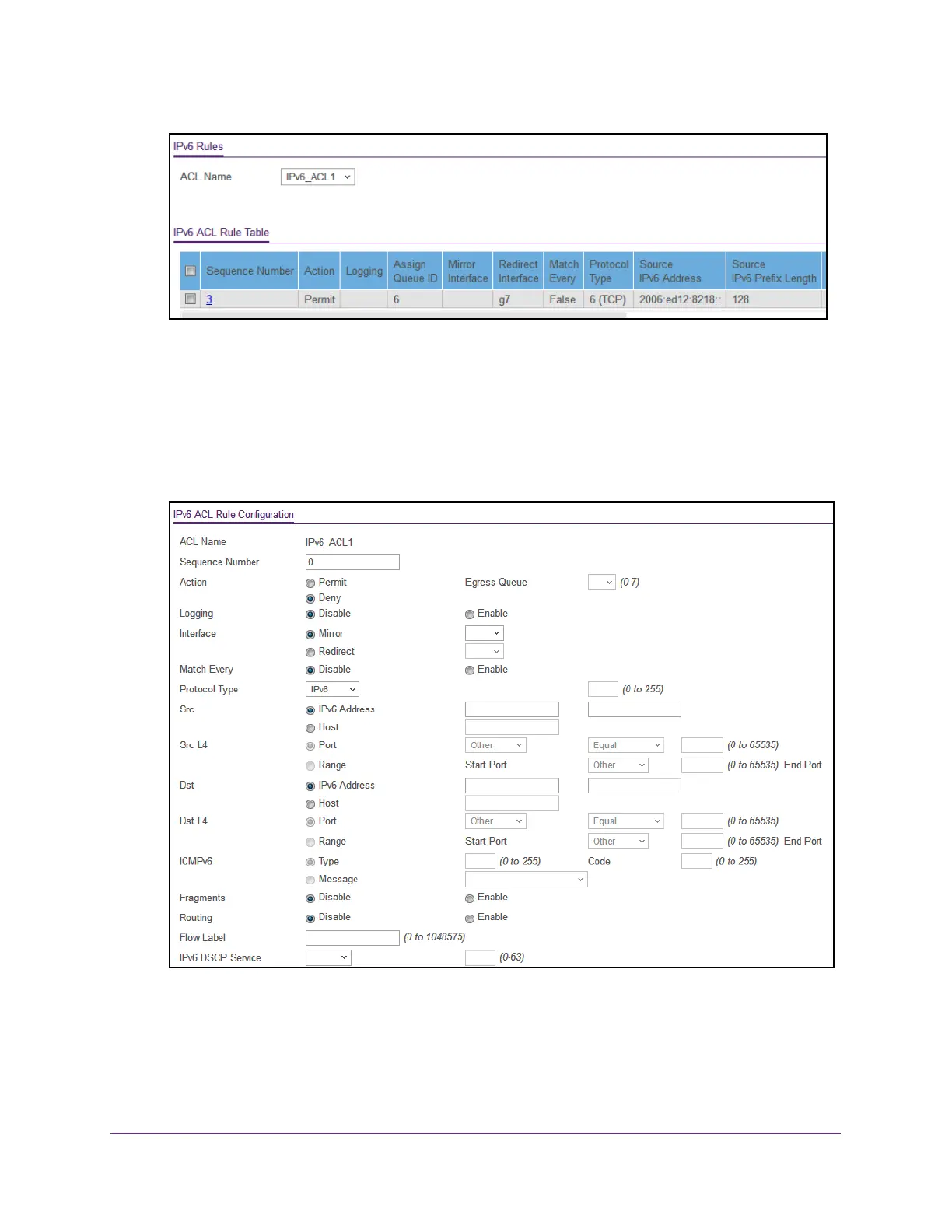

The previous figure does not show all columns.
If no rules exists, the IPv6 ACL Rule Table shows the message No rules have been
configured for this ACL. If one or more rules exist for the ACL, the rules display in the
IPv6 ACL Rule Table.
6. From the ACL Name menu, select the IPv6 ACL for which you want to add a rule.
7. Click the Add button.
The previous figure does not show the rightmost fields.
8. Configure the following match criteria for the rule:
• Sequence Number. Enter a whole number in the range of 1 to 2147483647 that is
used to identify the rule. An extended IP ACL can contain up to 50 rules.
