NETGEAR M4500 Series User Manual

Hardware Installation
27 NETGEAR M4500 Series Switches Hardware Installation Guide

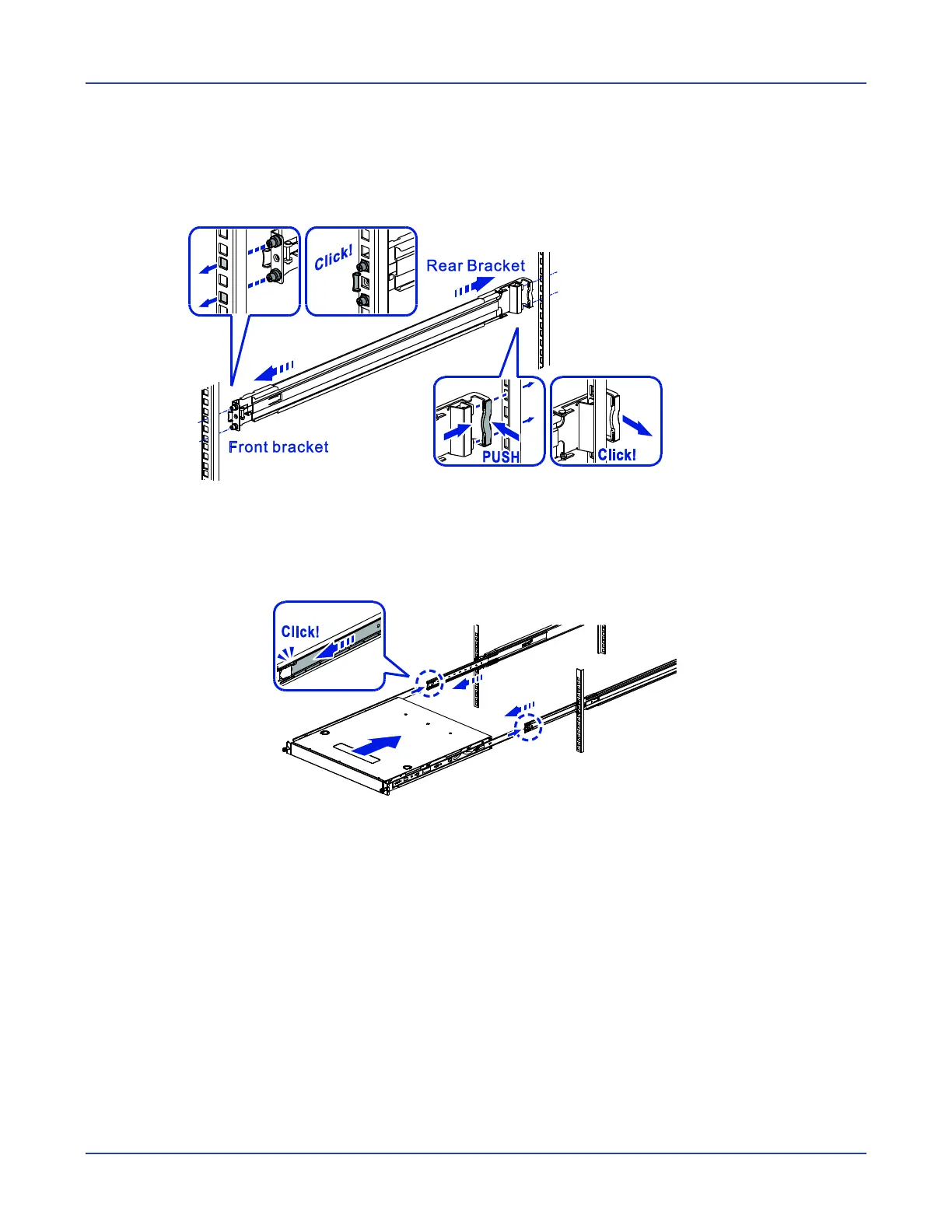

9 Install the outer rails to the rack.
 To install the front bracket: Pull the latch and install the rail by aligning the hooks
with the front rack holes, and then release the latch to lock the hooks into place.
 To install the rear bracket: Align and push the rail firmly into the rear rack until it
clicks into place. Make sure that the L-shaped bracket is facing inward.
10 Pull the middle rails out until they are fully extended, ensuring that the ball bearing
retainers are locked at the front of the middle rails.
11 Slide the inner rails on the switch into the middle rails until the movement stops.
