S350 Series 24-Port (PoE+) and 48-Port Gigabit Ethernet Smart Managed Pro Switches
Configure Switching User Manual128
If you do not know the IP address of the switch, see Discover or Change the Switch IP
Address on page 12.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is
password.
The System Information page displays.
5. Select Switching > VLAN >
Advanced > VLAN Status.

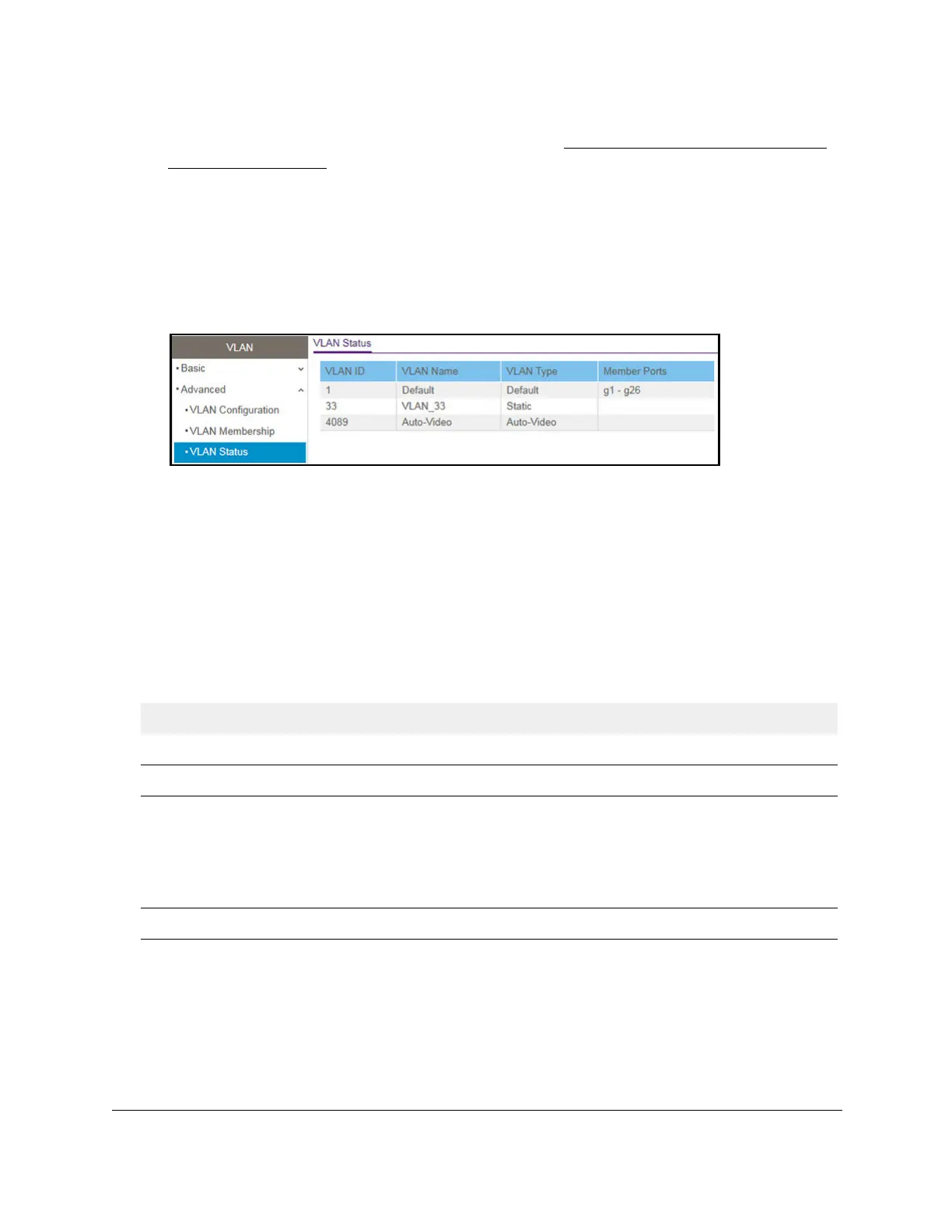

The previous figure includes one manually configured VLAN (VLAN ID 33).
Note: A nonoperational LAG is excluded from the VLAN Status page. Only
when the member LAG is operationally up, is the LAG port displayed
on the VLAN Status page. For example, LAG1 (ch1) is not listed in the
Member Ports column for VLAN1 because LAG1 is not operationally
up.
The following table describes the nonconfigurable information displayed on the page.
Table 30. VLAN status
Field Definition
VLAN ID The VLAN identifier (VID) of the VLAN. The range of the VLAN ID is from 1 to 4093.
VLAN Name The name of the VLAN.
VLAN Type The VLAN type:
• Default (VLAN ID = 1).
Always present.
• Auto-VIdeo (VLAN ID = 4089). Always present.
• Static. A VLAN that you configured.
• Dynamic. A dynamically created
VLAN.
Member Ports The ports, LAGs, or both that are included in the VLAN.
