NETGEAR S350 Series User Manual

S350 Series 24-Port (PoE+) and 48-Port Gigabit Ethernet Smart Managed Pro Switches
Configure Switching User Manual138
To configure protocol-based port settings for VoIP:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see
Discover or Change the Switch IP
Address on page 12.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is
password.
The System Information page displays.

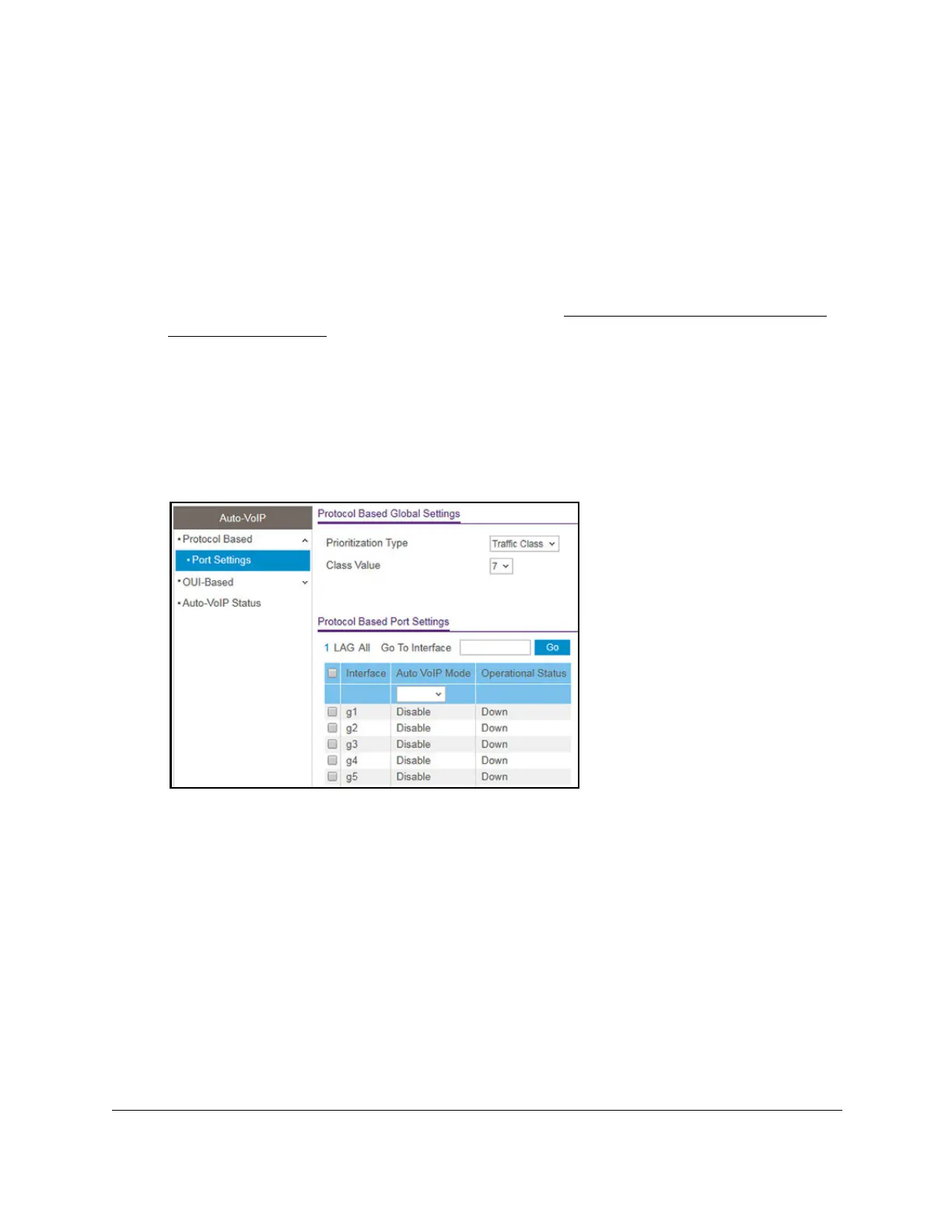

5. Select Switching >
Auto-VoIP > Protocol-based > Port Settings.
6. From the Prioritization Type menu, select Traffic Class or Remark.
This selection specifies the type of prioritization.
7. From the Class Value menu, specify the CoS class value to be reassigned for packets that
the voice VLAN receives.
8. Click the Apply
button.
Your settings are saved.
9. Select whether to display physical interfaces, LAGs, or both by clicking one of the following
links above the table heading:
•1 (the unit ID of the switch). Only physical interfaces are displayed. This is the default
setting.
• LAG
. Only LAGs are displayed.
• All. Both physical interfaces and LAGs are displayed.
