Reference Manual for the 54 Mbps Wall-Plugged Wireless Range Extender WGX102
Maintenance 6-5
September 2004 202-10042-01
Click the Show Statistics button to display access point usage statistics, as shown below.

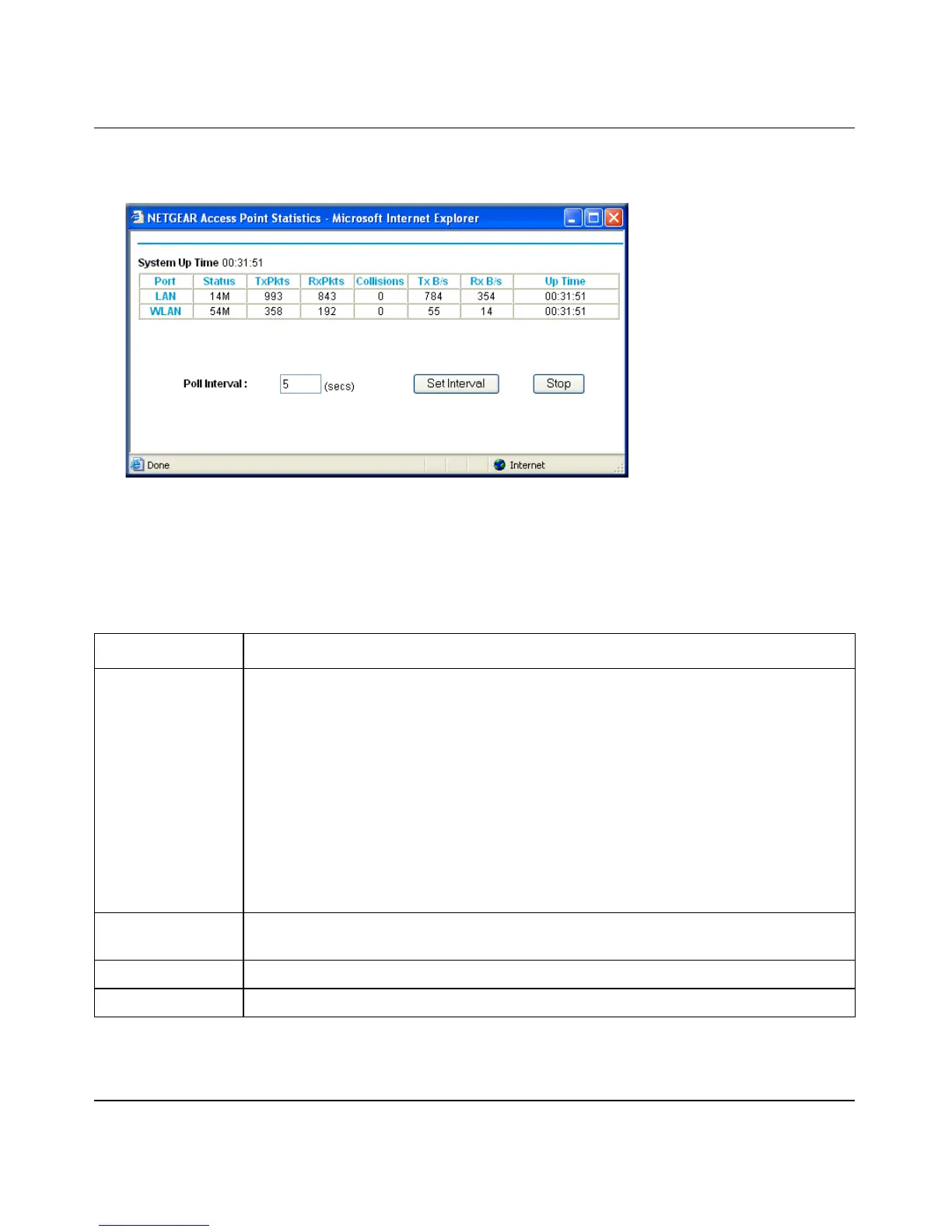

Figure 6-4: Access Point Statistics screen
The Access Point Statistics screen fields are described in the table below:
Table 6-3: Access Point Statistics Items
Item Description
Port The statistics for the LAN (local powerline) and WLAN (wireless) ports. For each port,
the screen displays:
Status The maximum link speed of the port.
TxPkts The number of packets transmitted on this port since reset or manual clear.
RxPkts The number of packets received on this port since reset or manual clear.
Collisions The number of collisions on this port since reset or manual clear.
Tx B/s The current transmission (outbound) bandwidth used on the WLAN and LAN ports.
Rx B/s The current reception (inbound) bandwidth used on the WLAN and LAN ports.
Up Time The time elapsed since this port acquired the link.
Poll Interval Specifies the intervals at which the statistics are updated in this window. Click Stop to
freeze the display.
Set Interval Enter a time and click the button to set the polling frequency.
Stop Click the Stop button to freeze the polling information.
