is a drawer mechanism that is pulled out of the
scale in order to load new label rolls or service the printer.
The Thermal Print Head
is the printing element that prints the thermal
labels. Never touch this part as it can get extremely hot
print cycle. From time to time you may need to clean the print head;
see Proper Operation, Maintenance section.
The Peel Sensor
is used by the printer to determine if you have
removed a printed label that is sitting on the peel-off bar. If t
becomes blocked, the scale will not print.
The Platter
is used to place commodity items to be weighed and/or
labeled. The platter may need cleaning from time to time; however,
you must remove the platter from the scale platform whenever you
clean it.

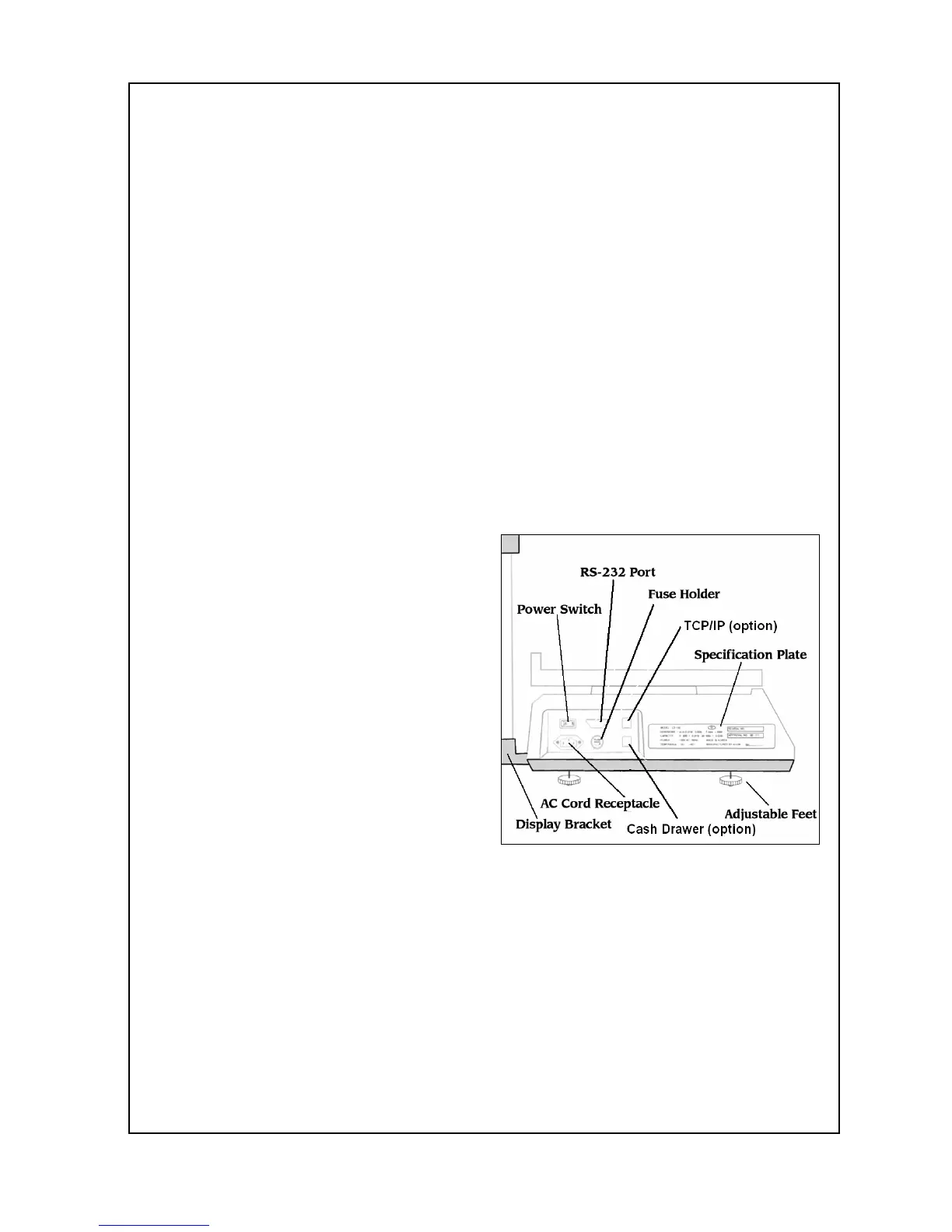

Left Side View:
The Display Bracket is where the
display pole is attached to during
installation.
The Power Switch is used to turn
the scale on or off; however, even
though the switch is in the off
position it is best to unplug the
scale whenever working on any
wiring or during installation.
TCP/IP and Cash drawer must be
illustrated as network option
The AC Cord Receptacle is where the power cord is plugged into.
The Adjustable Feet
can be adjusted to affect the level of the scale.
3 adjustable feet and 1 unadjustable foot which is located
under the printer towards the front of the scale.
The Specification Plate
contains scale data like capacity, serial
number, version, approval numbers, power requirements, and other
