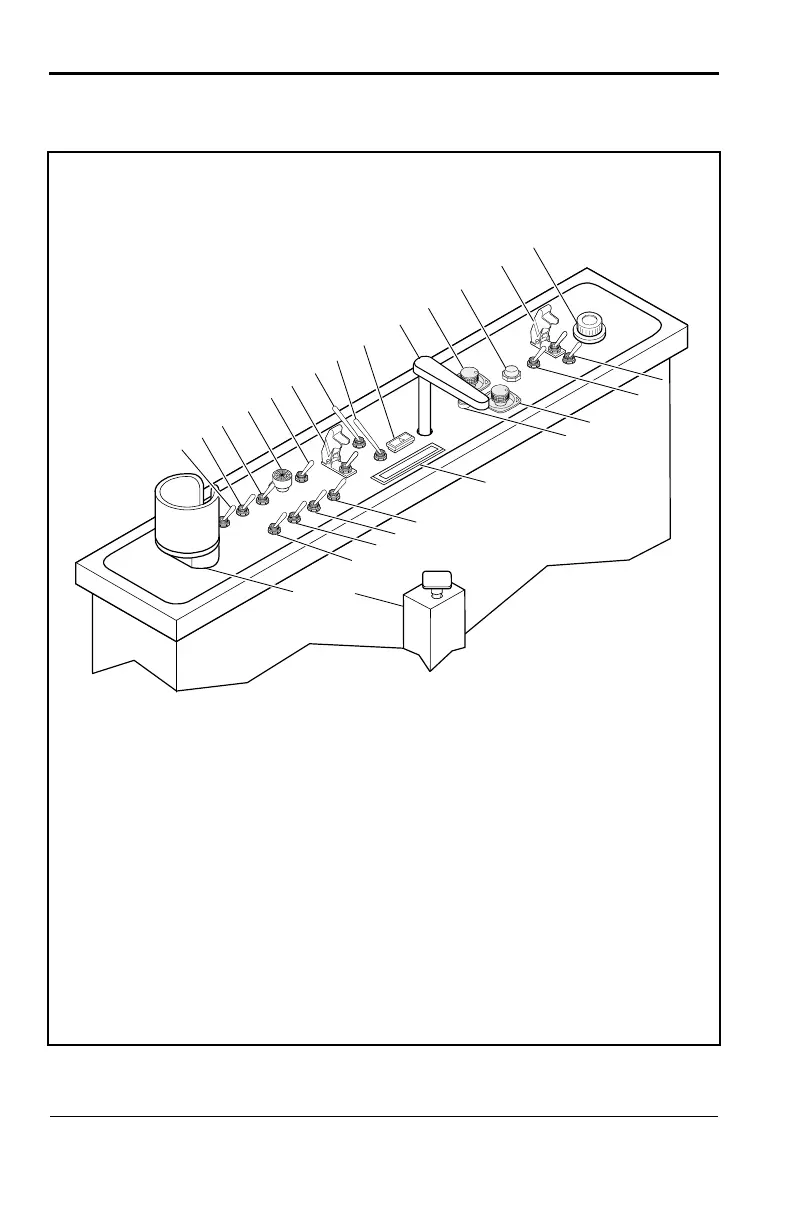

Figure 20: Side Console Panel
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
25
1. Farebox Light Switch
2. LH Dash Fan Switch
3. Aisle Lights Switch
4. Driver’s Light Knob
5. Stop Request Switch
6. Sander Switch
7. Hill Holder Switch
8. Hazard Light Switch
9. Hazard Light Indicator
10. Door Controller
11. LH Remote Mirror Controller
12. Start Push Button
13. Engine Test Switch
14. Master Run Switch
15. Increment/Decrement Switch
16. Idle Speed Switch
17. RH Remote Mirror Controller
18. Mirror Heater Button
19. Recessed Handle
20. Speaker Select Switch
21. Vent Mode Fan Switch
22. Climate Control Switch
23. RH Dash Fan Switch
24. Parking Brake Valve
25. Cup Holder
