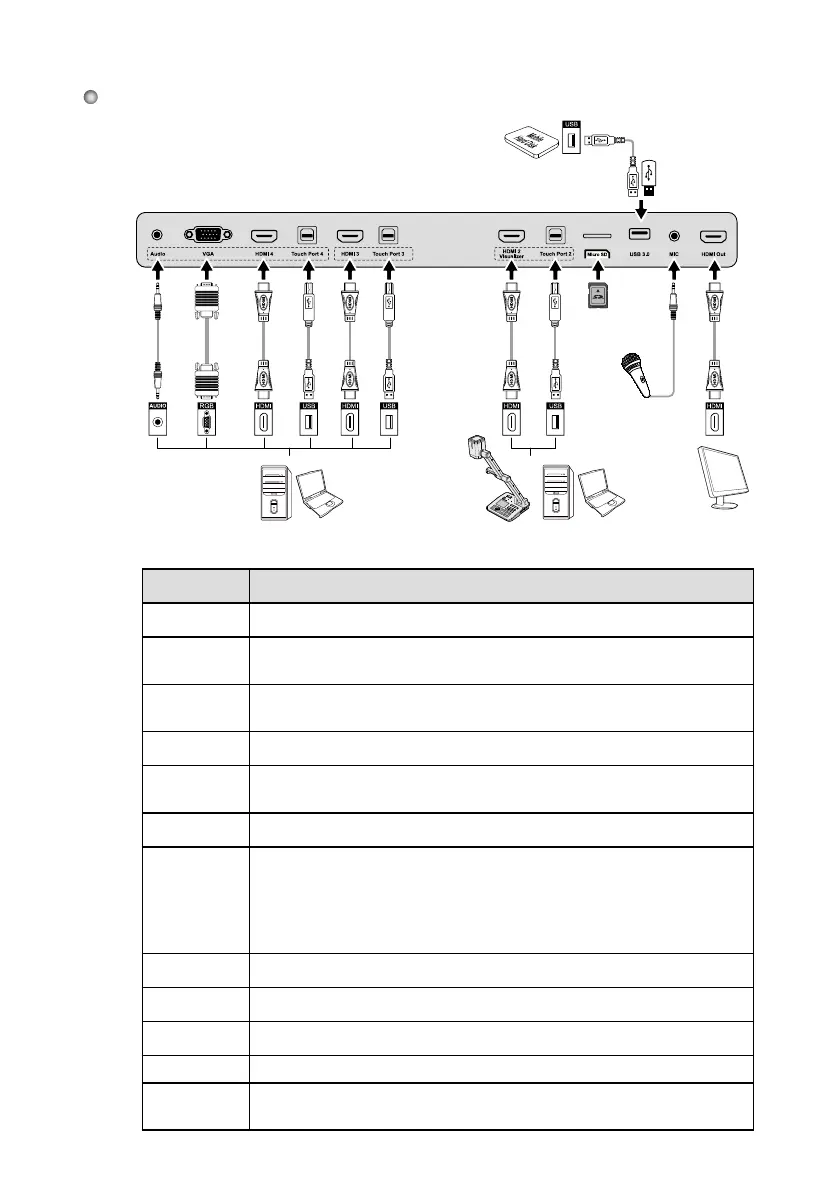

Connection Panel 2
Name Function Description
Audio Audio input port.
VGA
TVGA port for an external PC, which corresponds with Touch Port 4
to operate external PC with touch control.
HDMI4
Input terminal 4 for high definition signal, which corresponds
with Touch Port 4 to operate PC through touch control.
Touch Port 4
Terminal 4 for touch control.
HDMI 3
Input terminal 3 for high definition signal, which corresponds
with Touch Port 3 to operate external PC with touch control.
Touch Port 3
Terminal 3 for touch control.
HDMI 2
Visualizer
Input terminal 2 for high definition signal, which corresponds with
Touch Port 2 to operate PC or Visualizer through touch control.
Note:
Connect a visualizer for touch display control function and HD display mode;
please use the HDMI 2 Visualizer port.
Touch Port 2
USB terminal 2 for touch control.
Micro SD
E
xternal port for a micro SD card.
USB 3.0
USB 3.0 port
MIC
E
xternal microphone port.
HDMI Out
Output terminal for high definition signal, which can transmit the
signal to other display equipment with high definition resolution.
