Specifications
8

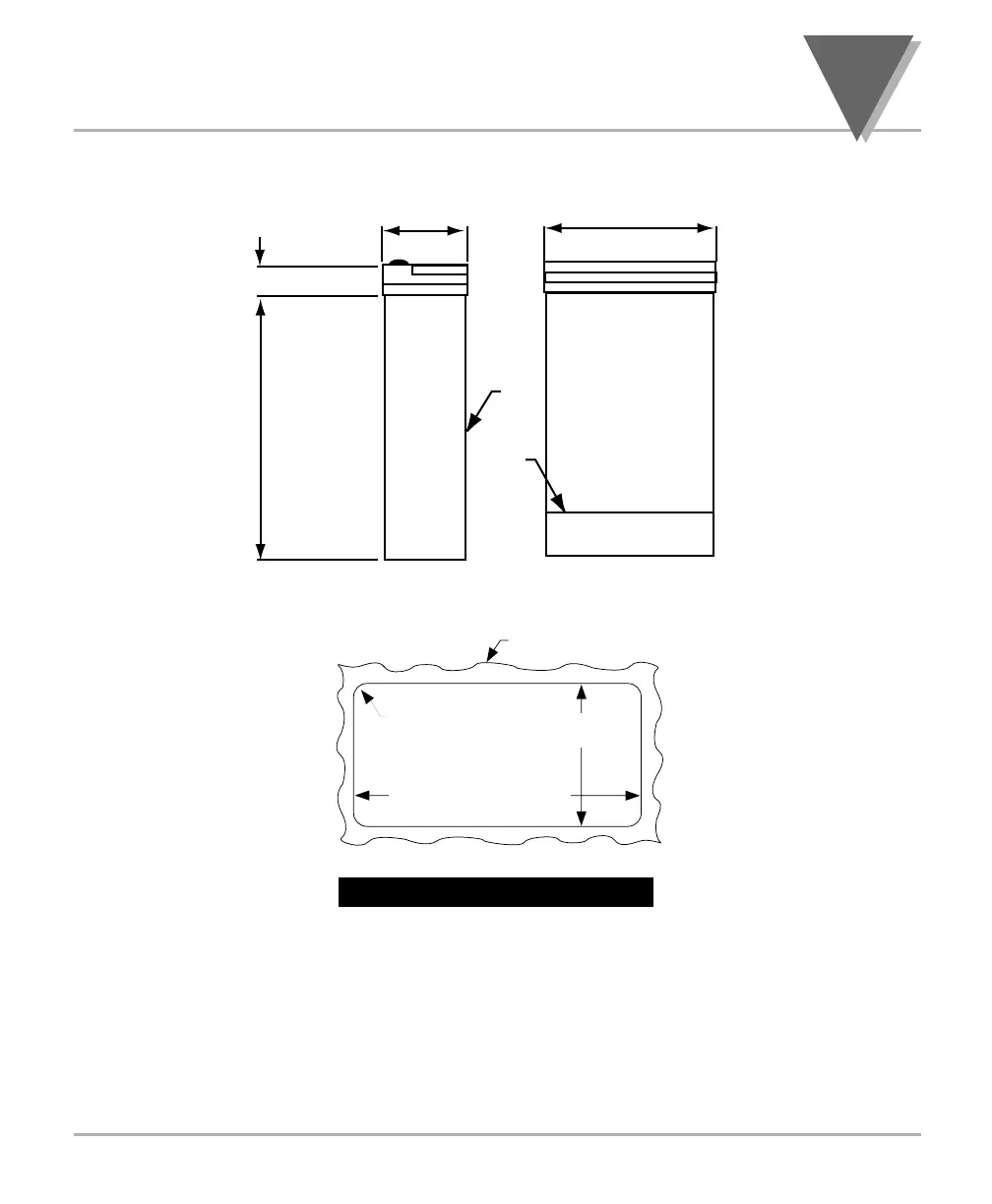

Figure 8-1. Meter Dimensions
SIDE VIEW TOP VIEW
CASE
REAR
COVER
96,00 (3.780)48,00 (1.890)
17,78 (.700)
150,00 (5.905)
45,00 + 0,61/-0,00
(1.772 + .024/–.000)
92,00 + 0,81/–0,00
(3.622 + .032/–.000)
PANEL THICKNESS
1,5
R
(.06)
4 PLCS
6,4 (.25) MAX
0,8 (.03) MIN
NOTE: Dimensions in Millimeters (Inches)
