NDiS M535 User Manual

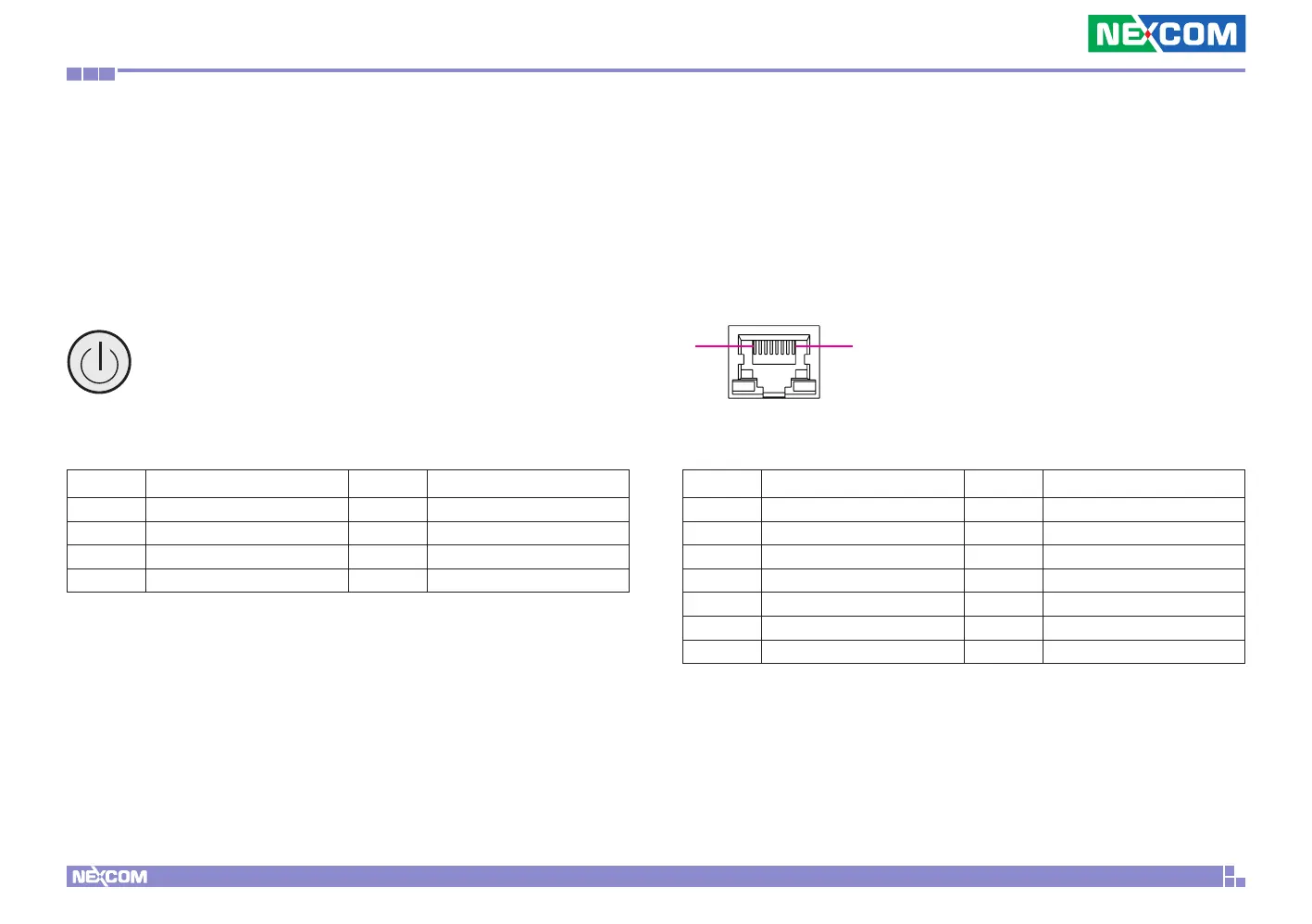

Chapter 2: Jumpers and Connectors
Connector Pin Definitions
External I/O Interfaces
Power Button
Connector location: SW1
Pin Definition Pin Definition
1 GND 2 PBT_PU
3 PBT_PU 4 GND
A1 PWRLED_N C1 PWRLED_P
MH1 NC MH2 NC
LAN Port
Connector type: RJ45 port with LEDs
Connector location: CN5
Pin Definition Pin Definition
1 TCT 2 MID3-
3 MID3+ 4 MID2-
5 MID2+ 6 MID1-
7 MID1+ 8 MID0-
9 MID0+ 10 GND
11 LED+ 12 LAN_ACTLED#_C
13 LAN1_LED2P 14 LAN1_LED3P
1 8
