NDiS M535 User Manual
Chapter 2: Jumpers and Connectors
12
51 52
Pin Definition Pin Definition
1 PCIE_WAKE# 2 +3.3B_MINI
3 NC 4 GND
5 NC 6 D15VS
7 CLKREQ# 8 UIM_PWR
9 GND 10 UIM_DATA
11 MC_PCIE_CLK_N 12 UIM_CLK
13 MC_PCIE_CLK_P 14 UIM_RESET
15 GND 16 UIM_VPP
17 NC 18 GND
19 NC 20 MINICARD1_DIS#
21 GND 22 WLAN_RESET#
23 mPCIE_RX_N 24 +3.3B_MINI
25 mPCIE_RX_P 26 GND

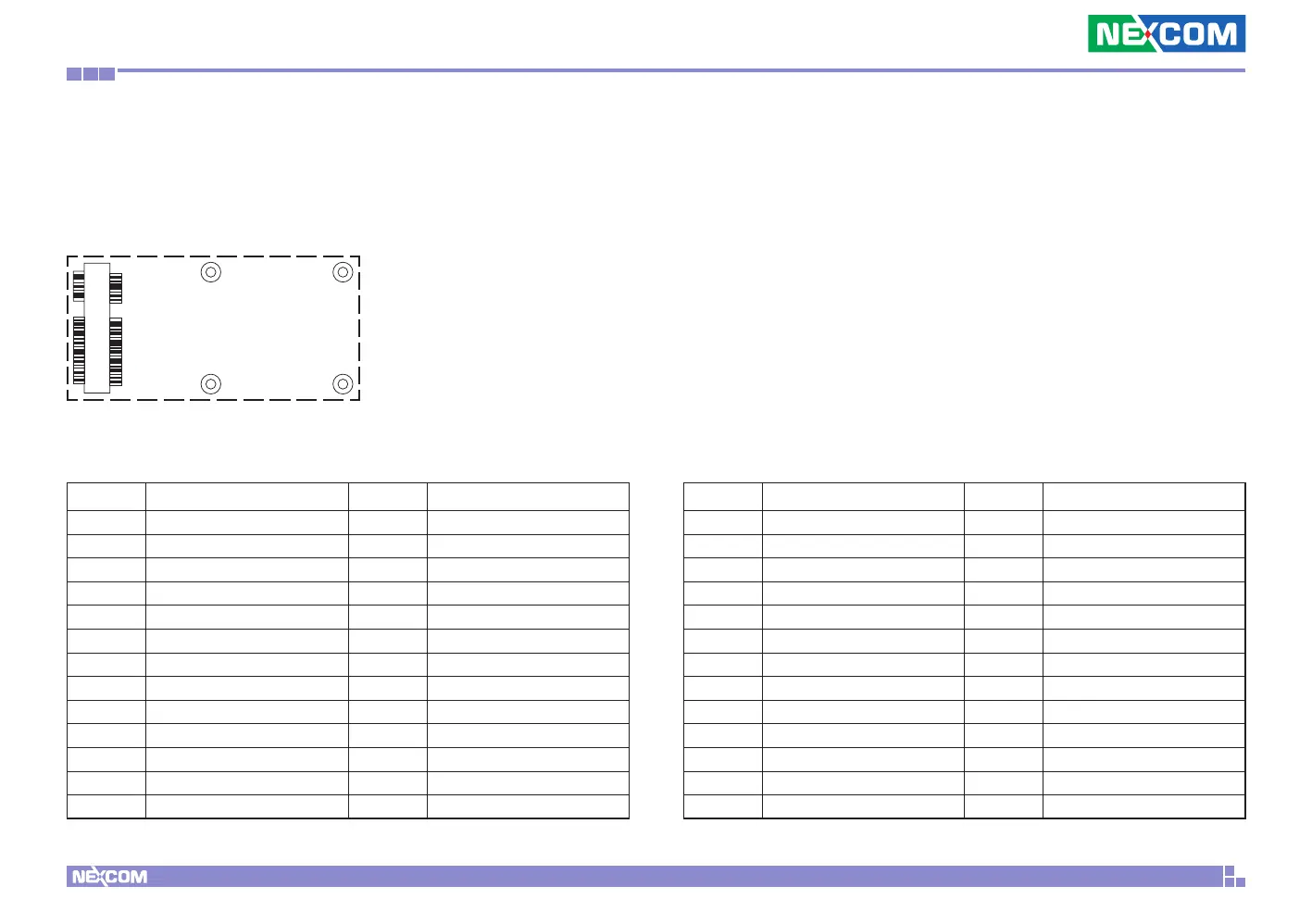

Mini-PCIe Connector
Connector location: CN3
Pin Definition Pin Definition
27 GND 28 D15VS
29 GND 30 SMB_CLK
31 mPCIE_TX_N 32 SMB_DATA
33 mPCIE_TX_P 34 GND
35 GND 36 USB_IN
37 NC 38 USB_IP
39 +3.3B_MINI 40 GND
41 +3.3B_MINI 42 NC
43 GND 44 LED_WLAN#
45 NC 46 NC
47 NC 48 D15VS
49 NC 50 GND
51 PRE-DEC 52 +3.3B_MINI
