NDiS M535 User Manual
Chapter 2: Jumpers and Connectors

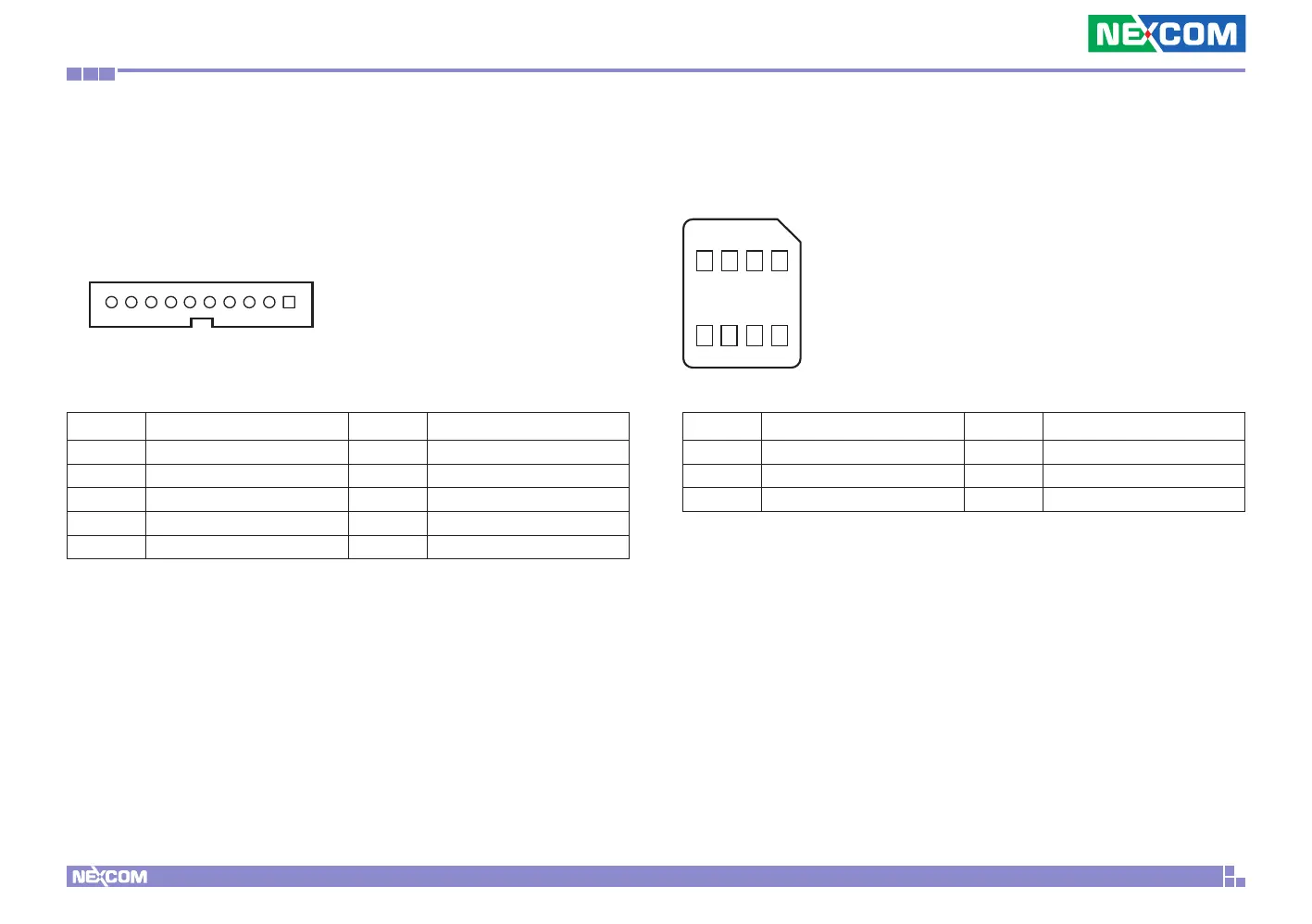

Port 80 Connector
Connector type: 1x10 10-pin header JST, 1.0mm pitch
Connector location: J2
Pin Definition Pin Definition
1 VCC3 2 VCC3
3 LPC_AD0 4 LPC_AD1
5 LPC_AD2 6 LPC_AD3
7 LPC_FRAME# 8 LPC_CLK0
9 SIO_RST# 10 GND
110
SIM Card Reader
Connector location: CN9
Pin Definition Pin Definition
C1 UIM_PWR C2 UIM_RST
C3 UIM_CLK C4 UIM_DAT
C5 GND
C1 C2 C3 C4
C5 C6 C7 C8
