NDiS M535 User Manual
Chapter 2: Jumpers and Connectors

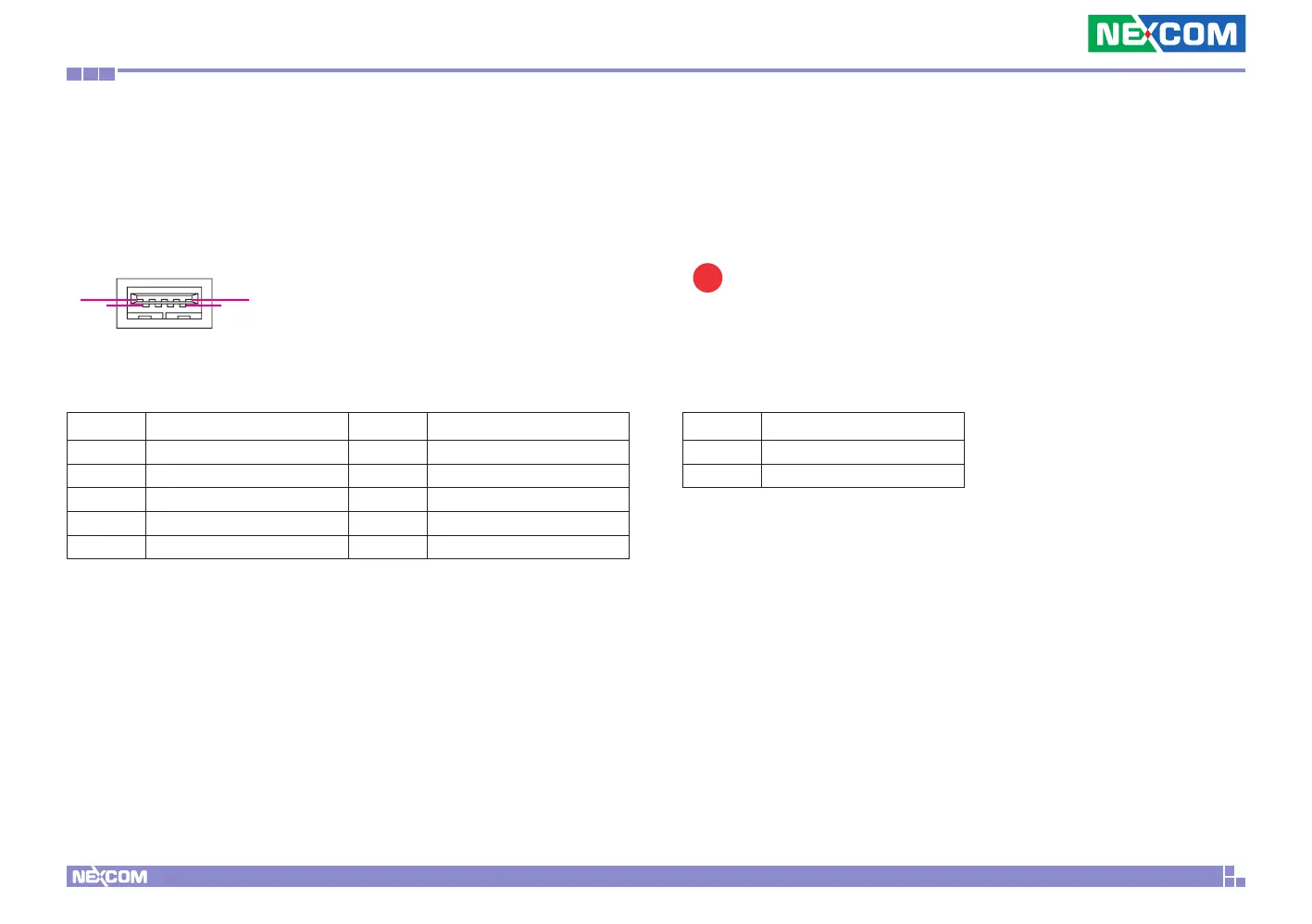

USB 3.0 Ports
Connector type: USB 3.0 port, Type A
Connector location: CN6 and CN7
Pin Definition Pin Definition
1 VBUS 2 D-
3 D+ 4 GND
5 SSRX- 6 SSRX+
7 GND 8 SSTX-
9 SSTX+
4
5
1
9
LED Connector
Connector location: LED1
Pin Definition
A POWER
C HD_LEDN
HDD
