NDiS M535 User Manual
Chapter 2: Jumpers and Connectors

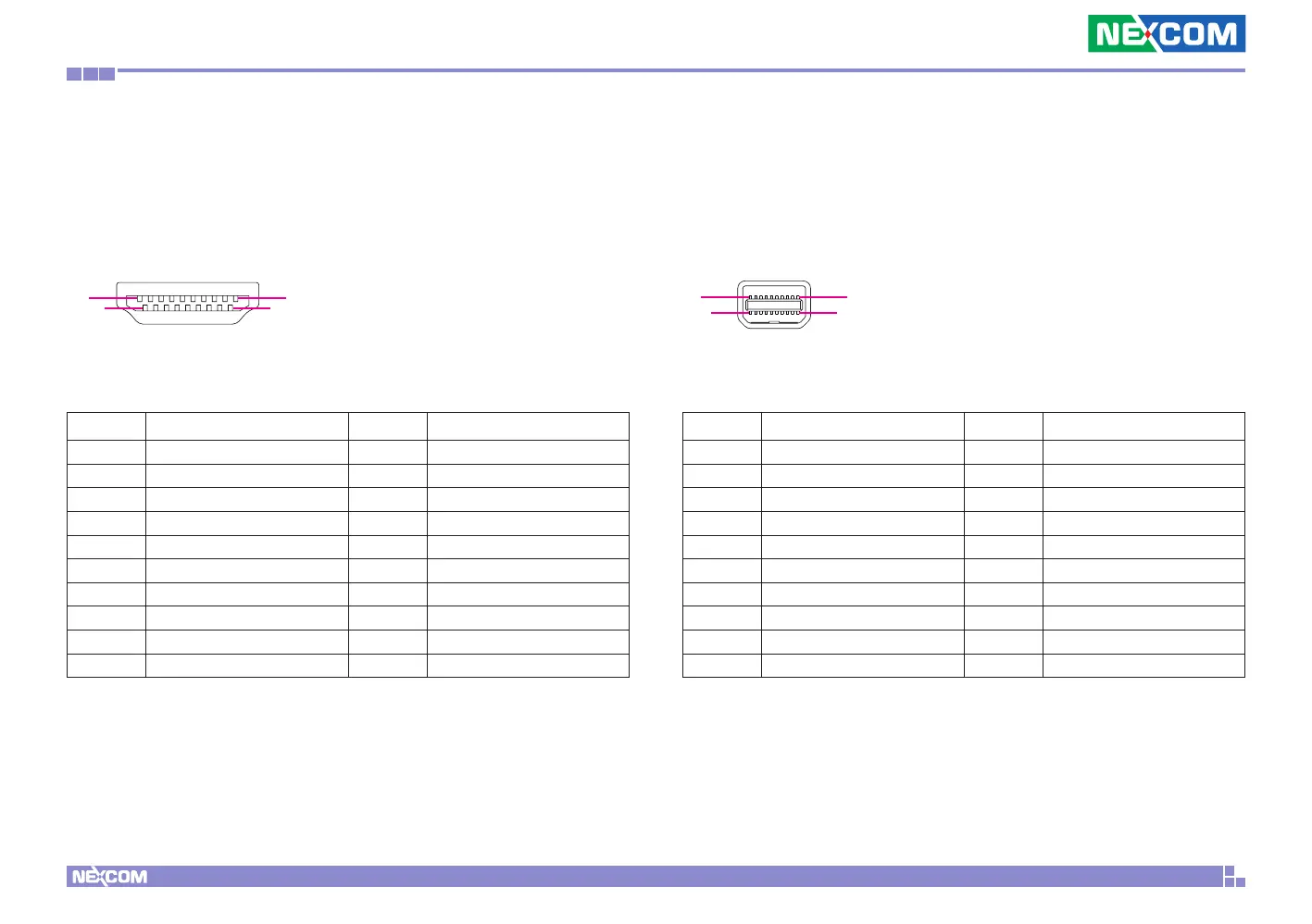

HDMI Port
Connector type: HDMI port
Connector location: CN8
Mini DisplayPort
Connector type: Mini DisplayPort
Connector location: J4
Pin Definition Pin Definition
1 TMDS DATA2+ 2 GND
3 TMDS DATA2- 4 TMDS DATA1+
5 GND 6 TMDS DATA1-
7 TMDS DATA0+ 8 GND
9 TMDS DATA0- 10 TMDS CLOCK+
11 GND 12 TMDS CLOCK-
13 CEC 14 NC
15 SCL 16 SDA
17 DDC 18 +5V
19 HOT PLUG DETECT
Pin Definition Pin Definition
1 GND 2 HPD
3 LANE0_P 4 CONFIG1
5 LANE0_N 6 CONFIG2
7 GND 8 GND
9 LANE1_P 10 LANE3_P
11 LANE1_P 12 LANE3_N
13 GND 14 GND
15 LANE2_P 16 AUXP
17 LANE2_N 18 AUXN
19 GND 20 PWR
2
119
18
2
119
20
