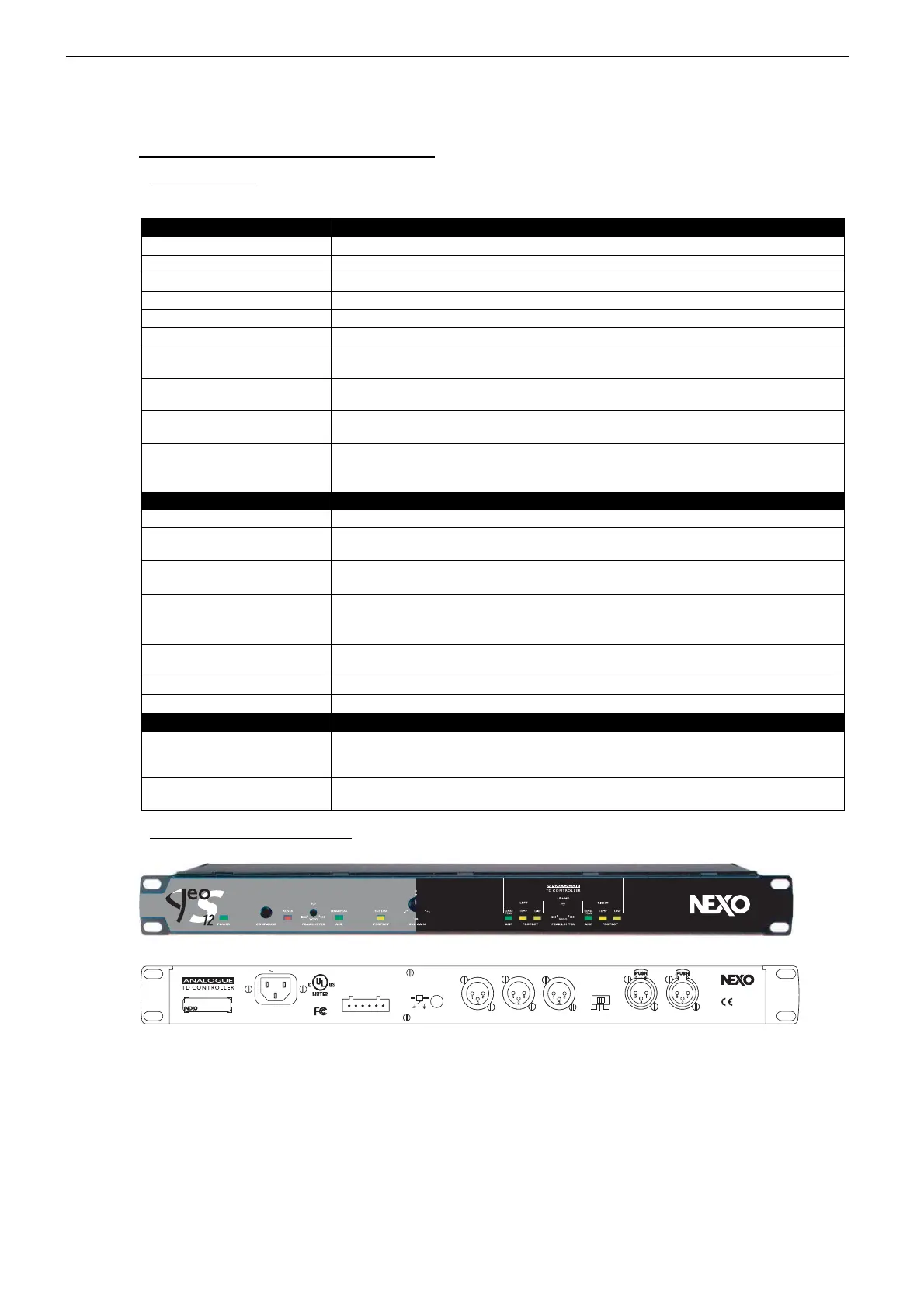

13.5 GEO S12 Analogue TDcontrollers
13.5.1 Specifications
SPECIFICATIONS
Output Section +22 /+16/+10 dBm typ. into 600 Ohm load. Back Panel switch on +6/0/-6dB respectively.
Input Section Maximum input Level : 22dBu. CMRR 80dB @ 1kHz typ.
THD+N 0.1% @ 1kHz Typ. for +10dBm Output
Noisefloor S12TD -100 dBV for 0dB switch position (22 Hz - 22 kHz, UnWeighted)
Dynamic Range 111 dB UnWeighted (THD+N at-60dBr sine wave @1kHz rel.max. output)
Crosstalk 104dB
Filtering & EQ. L&R: 12dB/oct Low Pass, 12dB/oct High pass (crossover or overlap), 4 Parameter EQs.
All factory tuned
Protections VCA temp. (SUB,LF & LF), VCEQ disp. (SUB & LF), Peak Limiter (all chanels), Power
compression regulation
Power Supply 100-250 Volts (continuous operation), 50/60Hz. Power 9W. Peak Inrush current 0.5A.
Earth-Lift.
Conformity Comply with safety objective of 73/23/EEC & 89/336/EEC directives. (EN60065-12/2001,
EN55103-1996).
CB scheme DK-8371, cULus 60065 AZSQ E241312, FCC part15 class B
PRODUCT FEATURES
Audio Inputs Two differential non floating L&R Audio inputs, 50 kOhm. Two XLR-3F connectors.
Sense Inputs Three Amplifier Sense Inputs (S12 L&R, LS). 400 kOhm. 6 Pole Removable Strip
Terminal
Audio Outputs Two L&R S12 Audio outputs. Balanced, non floating, 51 Ohm. Two XLR-3M.
One Mono (L+R) LS400 Audio output. Balanced, non floating, 51 Ohm. One XLR-3M.
Controls Gain switch (back panel), 3 positions : -6 / 0 /+6dB.
Peak Limiter trimmer (1200W-600W/8 Ohms) for S12 & Subbass
Sub Overlap / Crossover switch & Sub Gain Control (-/+ 6dB).
Indicators LF speakers Protect Yellow LED's (Temp. & Disp), Power ON (green), Amp Sense &
Peak LED's (green/Red)
Dimensions 1U 19" Rack. 165mm (6.5") Depth
Weight : 2.9 kg (6.6 lbs) net
SYSTEM OPERATION
Applicable Products The S12 TDcontroller is precisely matched to the S12 & associated Subbass and includes
sophisticated protection systems. Use of either product without a properly connected
Controller will result in poor sound quality and may damage the components.
SubBass Active two-way operation of the S12 Loudspeaker with the associated Subwoofer is
included in the Analogue S12 TDcontroller .
13.5.2 Front and Rear Panel view
BALANCED INPUTS
RIGHT LEFTRIGHT LEFTSUB L+R
OUPUT
LEVEL
+6dB
0dB
-6dB
BALANCED OUTPUTS
EARTH
LIFT
115-230V 50-60Hz 10W
CAUTION !
To reduce the risk of electric schock
grounding of the center pin
of this plug must be maintained.
MADE IN FRANCE
+ RIGHT - + LEFT -+ SUB -
SENSE INPUT
(from amp terminals)
CAUTION !
Sense line must be connected
for speaker protection.
10CE
PS8 TDcontroller
s.n:
03105
4004
