Nexo GEO S12 Series

Page 20/112 CONNECTION DIAGRAMS

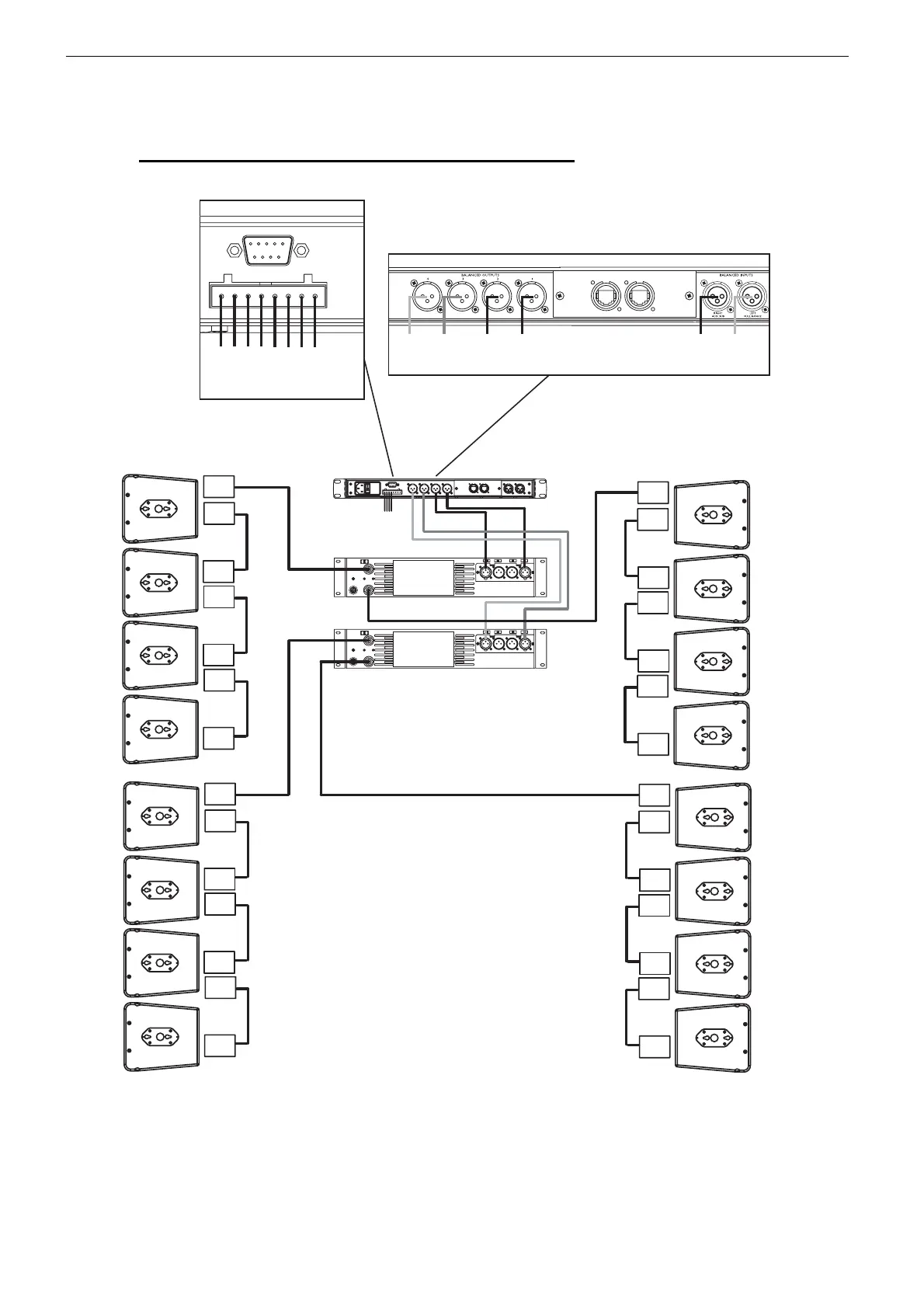

5.2 GEO S12 / NX242-ES4 (4 channels passive mode)
AMPLIFIER 1
AMPLIFIER 2
GEOS12
#3
IN
1
TO AMPLIFIERS
STEREO
FROM AMPLIFIERS
GEOS12 #3
GEOS12 #4
+ 4 - + 3-
STEREO
GEOS12
4 CHANNELS
+ 2 - + 1 -
Speakon 4
Speakon 4
Speakon 4
1 (+) / 1 (-) N.C.
2 (+) / 2 (-) FULL RANGE
GEOS12
#4
Speakon 4
Speakon 4
Speakon 4
Speakon 4
Speakon 4
GEOS12
#1
GEOS12
#2
IN
2
GEOS12 #1
GEOS12 #2
