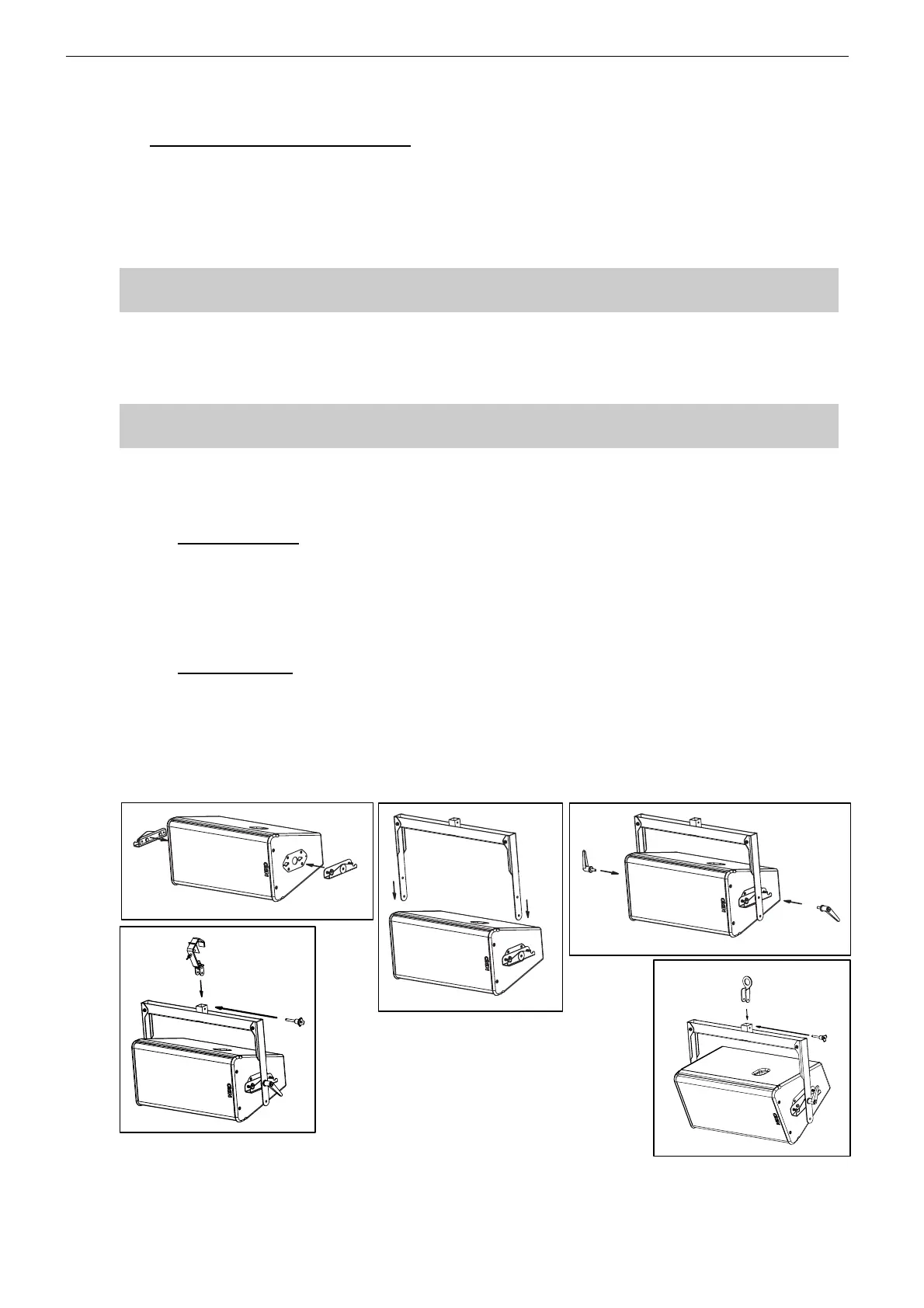

8.4.4 Single GEO S12 flown horizontally
Required items
• 1 x “U” Bracket for single horizontal GEO S12 (GEOS12-SSBRK-V2)
• 1 x Lifting Ring (GEOS12-XHBRK)
• Or 1 x Truss hook (GEOS12-TCBRK-V2)
IMPORTANT
Ensure that suspension point is strong enough to hold GEO S12 weight.
Procedure
• Slide GEOS12-SSBRK-V2 side plates into GEO S12 connecting plate oblong holes;
• Lock safety pins into GEO S12 connecting plate;
IMPORTANT
Ensure that safety pins are properly locked into GEO S12 connecting panels.
• Position “U” bracket over these side plates; align centre holes;
• Insert adjustment handles, adjust vertical angle and tight the handles to prevent GEO S12 from
rotating around “U” bracket;
Cable suspension:
• Connect lifting ring GEOS12-XHBRK to “U” bracket by inserting 8x45 quick release pin dedicated
holes;
• Ensure lifting ring is properly locked to “U” bracket;
• Connect assembly to suspension point with sling and shackle (not provided).
Truss suspension
• Connect truss hook GEOS12-TCBRK-V2 to “U” bracket by inserting 8x45 quick release pin in
dedicated holes;
• Ensure truss hook is properly locked to “U” bracket;
• Lift and position assembly, lock hook on truss suspension point and secure with hook cable.
