Page 38/112 GEO S12 HARDWARE SETUP PROCEDURE
8.3.2 Single GEO S12 rigidly mounted on a wall or a ceiling (vertical or horizontal)
Required items
• 1 x GEOS12-UBRK (allows all angles to be implemented)
• 4 x 12mm diameter screws (not provided)
IMPORTANT
Ensure that the surface – wall or ceiling – is strong enough to hold GEO S12 weight and
that the for screws 12mm diameter and corresponding plugs required to fix the “U”
bracket on the wall or under the ceiling are properly dimensioned.

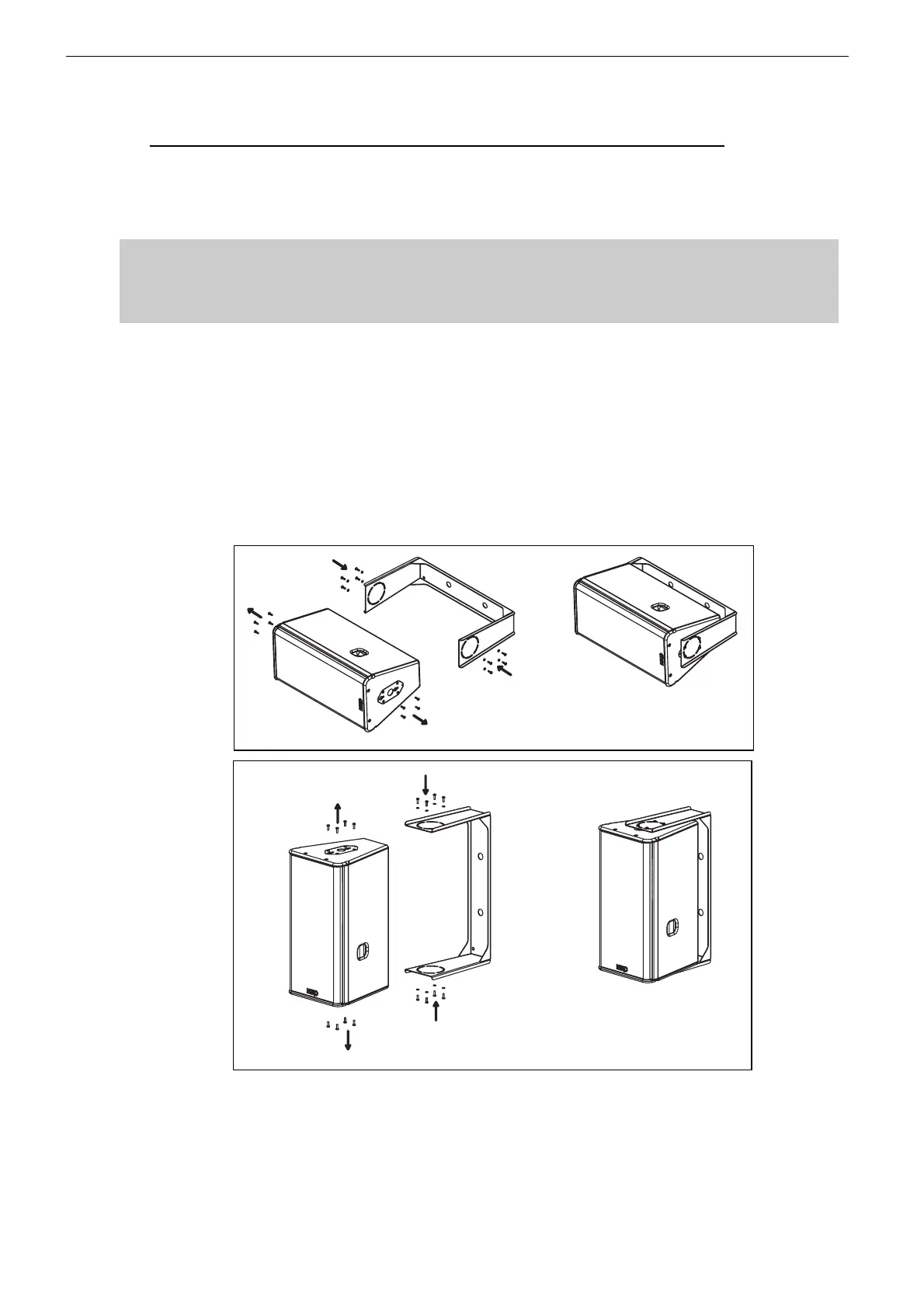

Procedure
• For screws 12mm diameter (not provided) are required to secure the “U” Bracket on the wall or
ceiling;
• Remove the four TORX screws holding connector plates on both sides of GEO S12;
• Fill each screw hole with Locktite 243 or equivalent;
• Position the GEO S12 inside the “U” Bracket to desired angle; “U” bracket oblong holes must be
properly aligned with panels holes;
• Use the eight screws and washers from GEOS12-UBRK kit to connect “U” bracket to cabinet.
