AMPLIFIER SELECTION FOR USE WITH GEO S12S Page 17/112

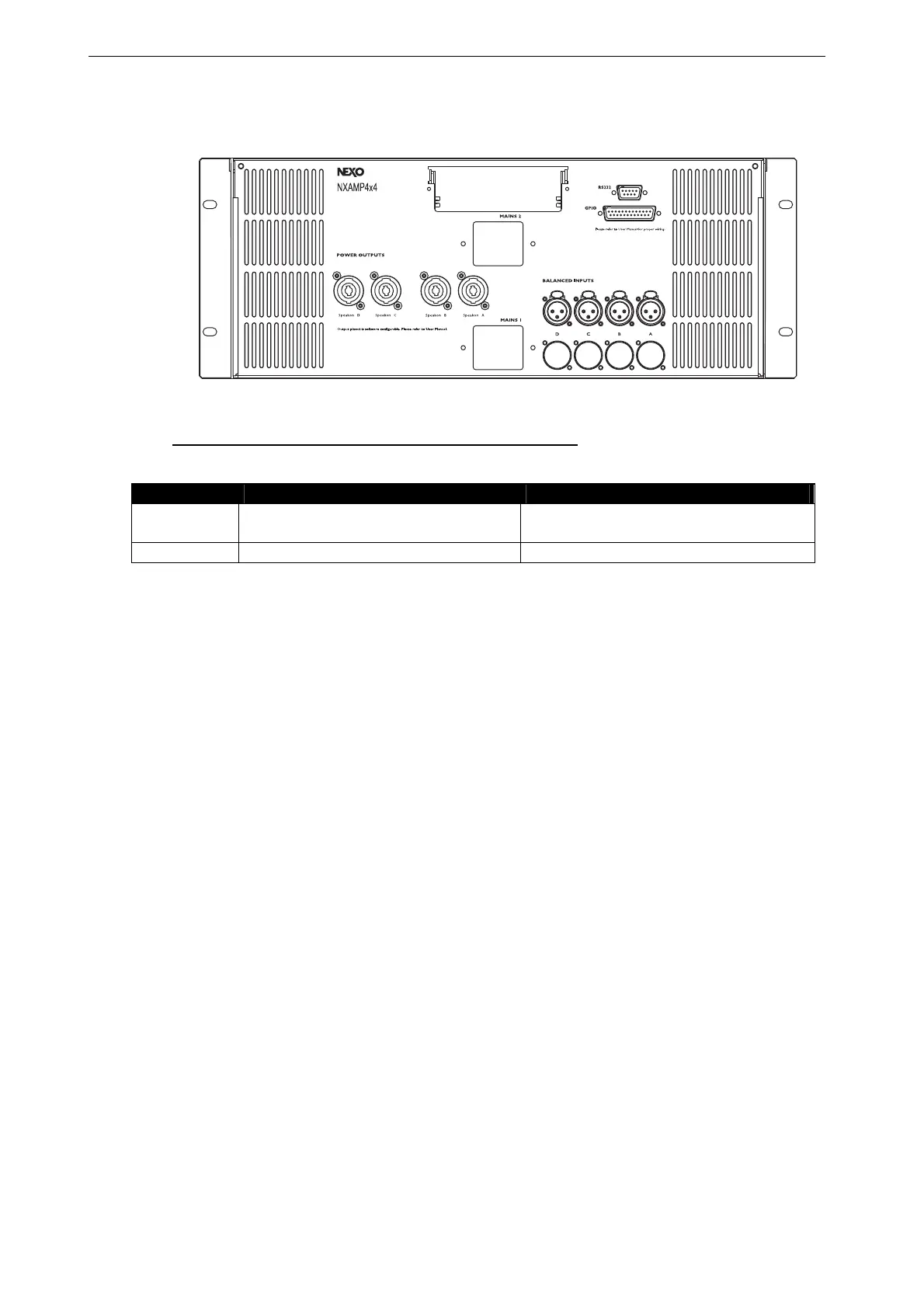

Figure below shows connectors implementation on the rear panel.
3.2.2 GEO S12s and NXAMP recommended configurations
Passive Mode Active Mode
3 GEO S12 1 channel of NXAMP4x1 in Bridge Stereo Mode
1 channel of NXAMP4x4 in 4 channels mode
2 channels of NXAMP4x1 in Bridge Stereo Mode
2 channels of NXAMP4x4 in 4 channels mode
4 GEO S12 1 channel of NXAMP4x4 in 4 channels mode 2 channels of NXAMP4x4 in 4 channels mode
