GEO S12 HARDWARE SETUP PROCEDURE Page 41/112
0°
1°
2°
3°
4°
5°
0°
1°
2°
3°
4°
5°

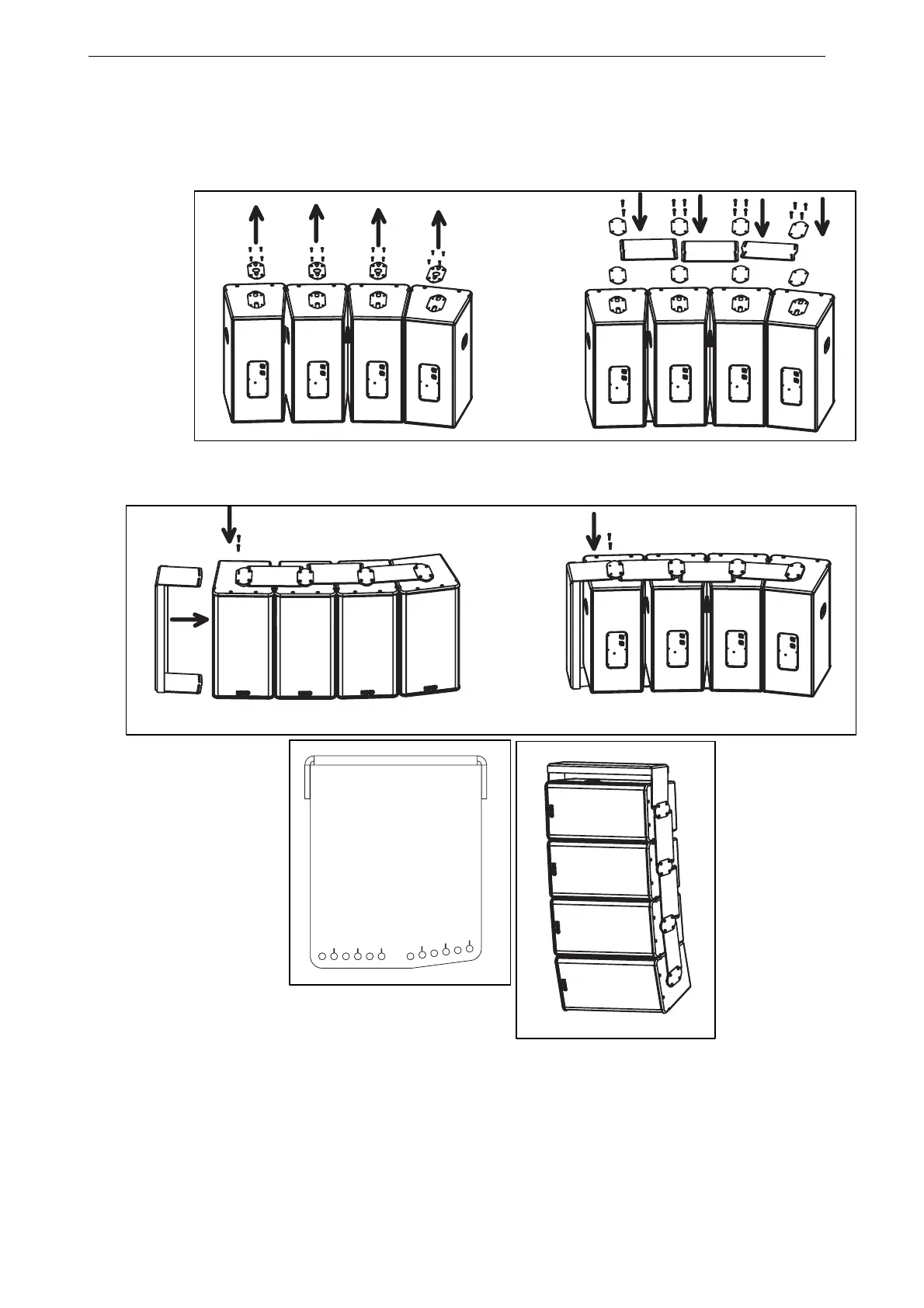

• (7) Flip the cluster upside down to access connector plates located on the down side;
• (8) Repeat all above steps from #2 to #6;
•
• (9) Position the GEOS12-FBUMPER bumper to required angle position and use the four
shoulder screws from GEOS12-FBUMPER kit to connect it the bumper to the top cabinet;
• (10) Flip GEO S12 cluster by 90° so that it is ready to be positioned under the ceiling;
• (11) Four screws 12mm diameter (not provided) are required to secure the bumper under the
ceiling.
