Contact with VVM 320
EXTERNAL INFORMATION
When the indoor module door is closed, information can be received via
an information window and a status lamp.

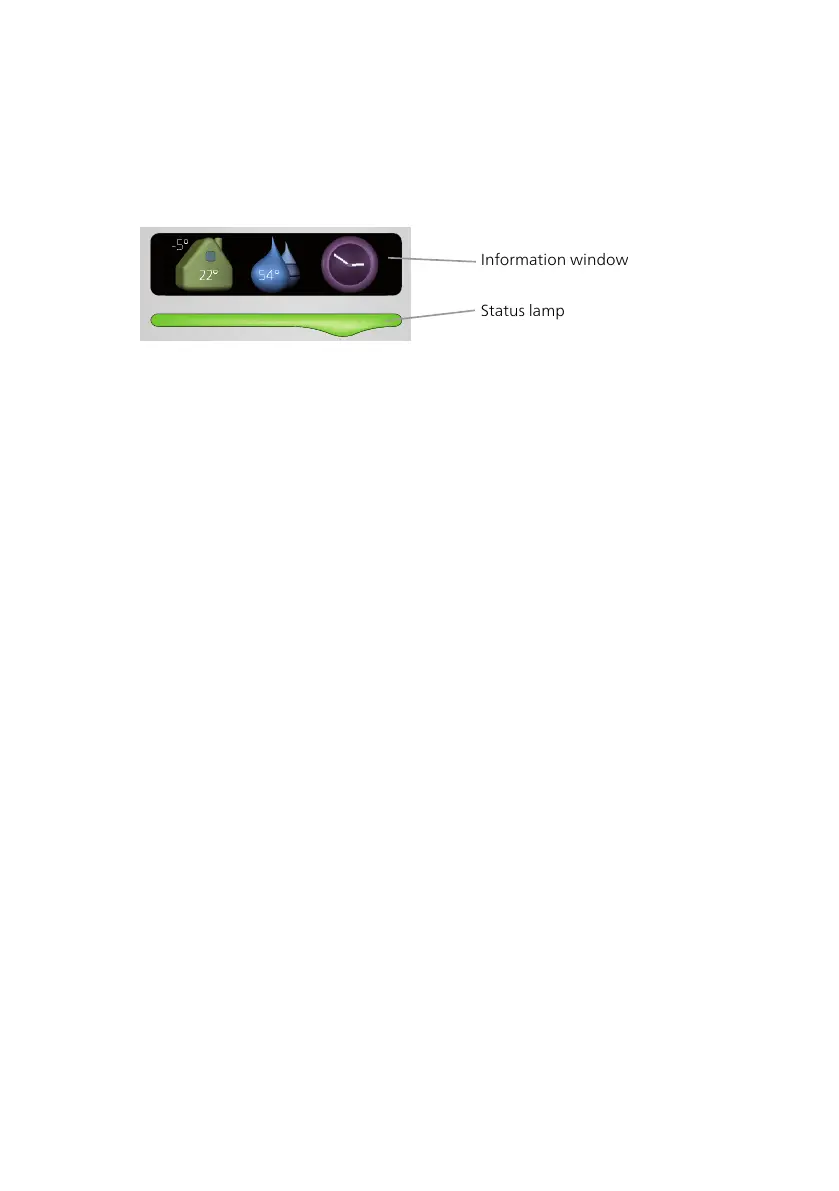

Information window
Status lamp
Information window
The information window shows part of the display that is on the display
unit (located behind the door to the indoor module). The information
window can display different types of information, e.g. temperatures,
clock, etc.
You determine what is to be displayed in the information window. Your
own combination of information is entered using the display unit. This
information is specific to the information window and disappears when
the front hatch of the indoor module door is opened.
Instructions on how to set the information window can be found on page
69.
Status lamp
The status lamp indicates the status of the indoor module: continuous
green light during normal function, continuous yellow light during activ-
ated emergency mode or continuous red light in the event of a deployed
alarm.
Alarm management is described on page 77.
11Chapter 2 | The heating installation – the heart of the houseNIBE VVM 320

Nibe VVM 320 Specifications

General

Dimensions (HxWxD)	1800 x 600 x 615 mm
Power Supply	230 V
Frequency	50 Hz
Protection class	IP21
Compatible with	Nibe heat pumps
Display	Touch display
Smart Home Integration	Yes, via NIBE Uplink
Operating temperature	0°C to +45°C
Relative humidity	Max. 95 %
Type	Control unit for heat pumps
