Nibe VVM 320 User Manual

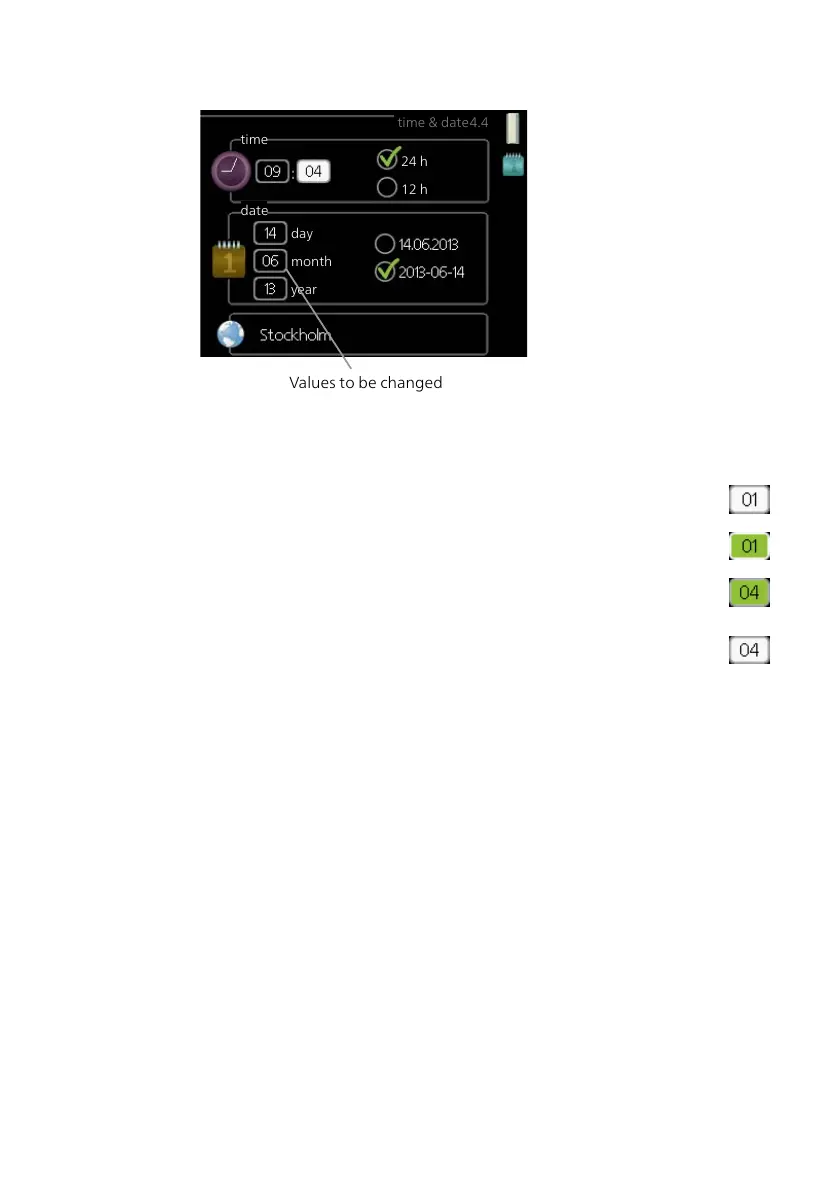

Setting a value
time & date4.4
time
day
year
month
24 h
12 h
date
Values to be changed
To set a value:
1.
Mark the value you want to set using the control knob.
2.
Press the OK button. The background of the value becomes
green, which means that you have accessed the setting mode.
3.
Turn the control knob to the right to increase the value and to
the left to reduce the value.
4.
Press the OK button to confirm the value you have set. To
change and return to the original value, press the Back button.
NIBE VVM 320Chapter 2 | The heating installation – the heart of the house18

Nibe VVM 320 Specifications

General

Dimensions (HxWxD)	1800 x 600 x 615 mm
Power Supply	230 V
Frequency	50 Hz
Protection class	IP21
Compatible with	Nibe heat pumps
Display	Touch display
Smart Home Integration	Yes, via NIBE Uplink
Operating temperature	0°C to +45°C
Relative humidity	Max. 95 %
Type	Control unit for heat pumps
