Nice MC424L - Page 29

IT
Italiano – IIIIII
L
N
T
S
U
T
6
TX RX
8-10 RX = PHOTO
8-11 RX = PHOTO1
8-13 RX = PHOTO2 (AUX)
MM 567 8910 11 12 1312 34MM
OGI
5c

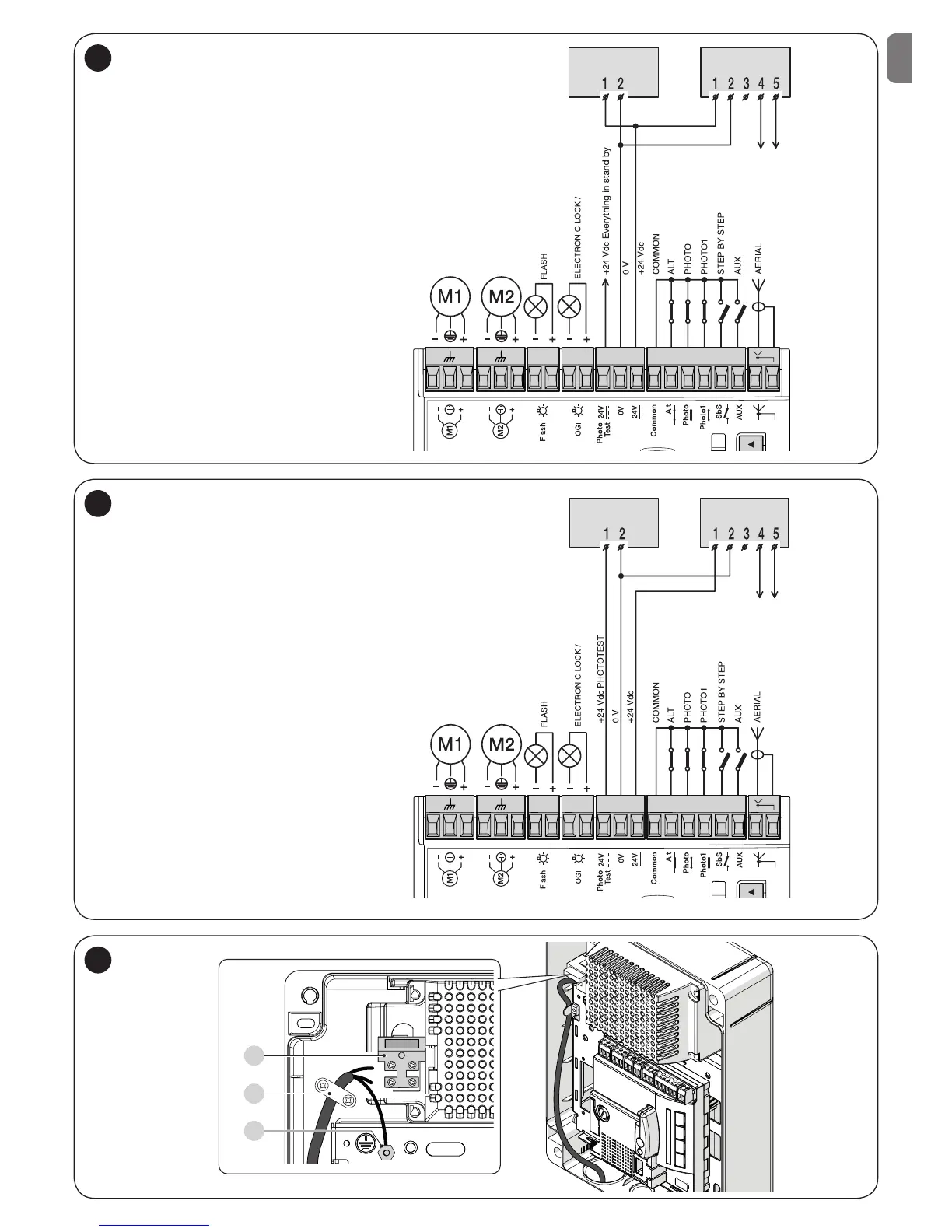

IT - Collegamento senza “Stand by tutto” con
“Fototest”
EN - Connection without “Everything in stand
by” with “Phototest”
MM 567 8910 11 12 1312 34MM
TX RX
8-10 RX = PHOTO
8-11 RX = PHOTO1
8-13 RX = PHOTO2 (AUX)
OGI
5b
IT - Collegamento standard: senza utilizzare
“Stand by tutto” e senza “Fototest”
EN - Standard connection: without using
“Everything in stand by” or “Phototest”
