3.5 INSTALLING THE GEARMOTOR
a
Incorrect installation may cause serious physical
injury to the person working on the system or to its
future users.
Before starting to assemble the automation, com-
plete the preliminary checks described in the “Pre-
installation checks” and “Product usage limits”
paragraphs.
m
Before proceeding with installation, it is advisa-
ble to position the door halfway along its path and
then anchor the gearmotor to the foundation plate.
This ensures that the mechanical limit switches can
self-adjust.
If the supporting surface already exists, the gearmotor must be
mounted directly onto the surface using appropriate fasteners,
for example expansion bolts.
Alternatively, to mount the gearmotor:

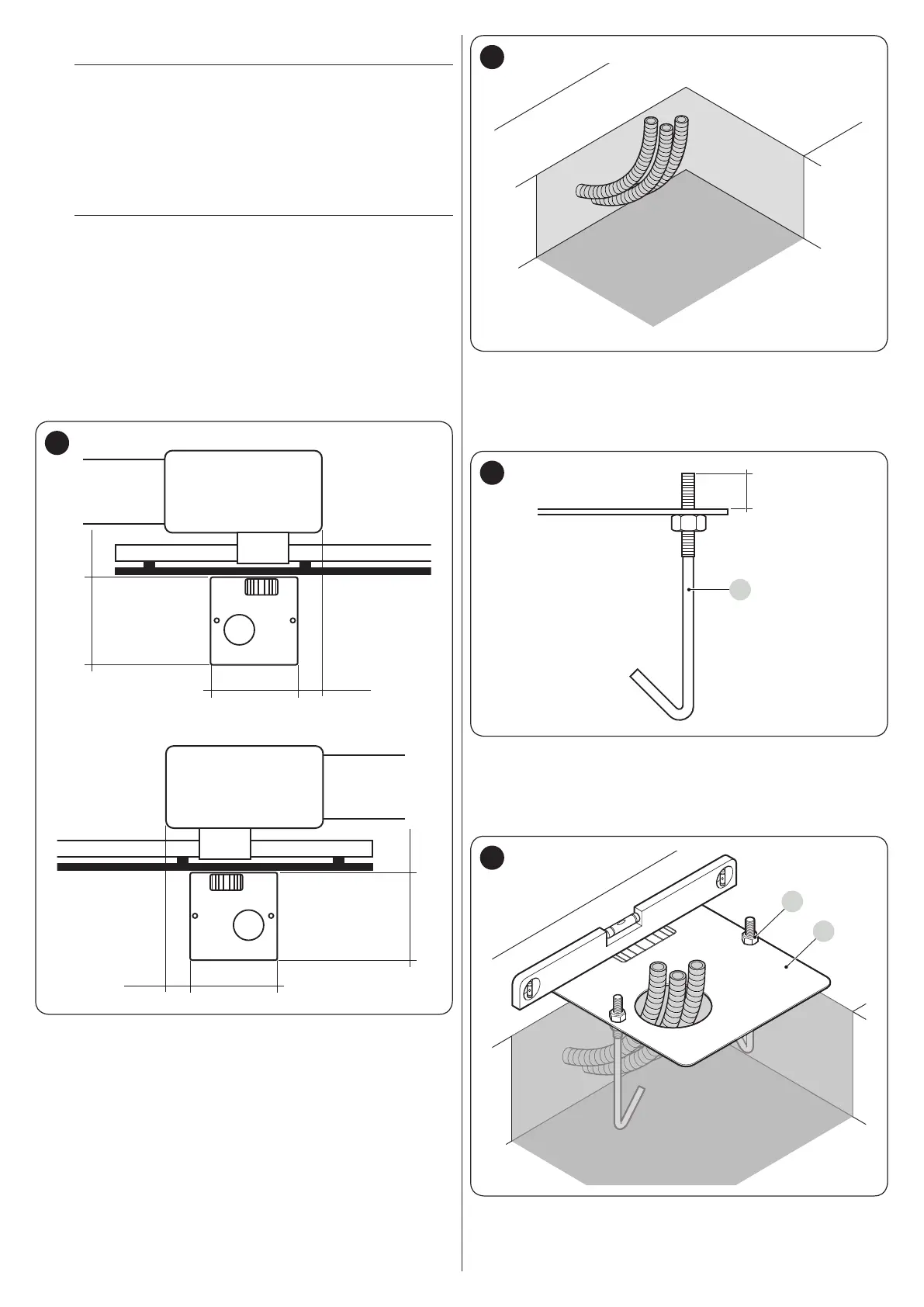

1. dig a suitably sized foundation using the indicated meas-
urements as a reference
194 0 ÷ 10
191 0 ÷ 50
194 0 ÷ 10
1910 ÷ 50
5
2. arrange one or two pipes for routing the electrical cables
6
3. assemble the two anchoring devices (A) onto the founda-
tion plate, placing one nut under and one over the plate;
the nut beneath the plate must be tightened so that the
threaded part protrudes by roughly 20÷30 mm above the
plate
A
7
4. pour the concrete and, before it starts to set, place the
foundation plate (B) at the levels indicated previously;
make sure that it lies parallel to the gate and perfectly level
5. wait for the concrete to set fully
6. remove the two nuts above the plate (C)
B
C
8
