3.4) Electrical connections
Only carry out electrical connections once the electric-
ity supply to the system has been switched off. Discon-
nect any buffer batteries present.
1. Open the protection cover in order to access the electronic con-
trol unit of the SPIN. To do this, press the side and rotate as
shown in figure 34.
2. Insert all the connection cables towards the various devices
through the hole, leaving a length of 20÷30 cm longer than nec-
essary. Pass the aerial cable through the cable retainer ring. See
Table 6 for information regarding the type of cables and Figure 2
for the connections.

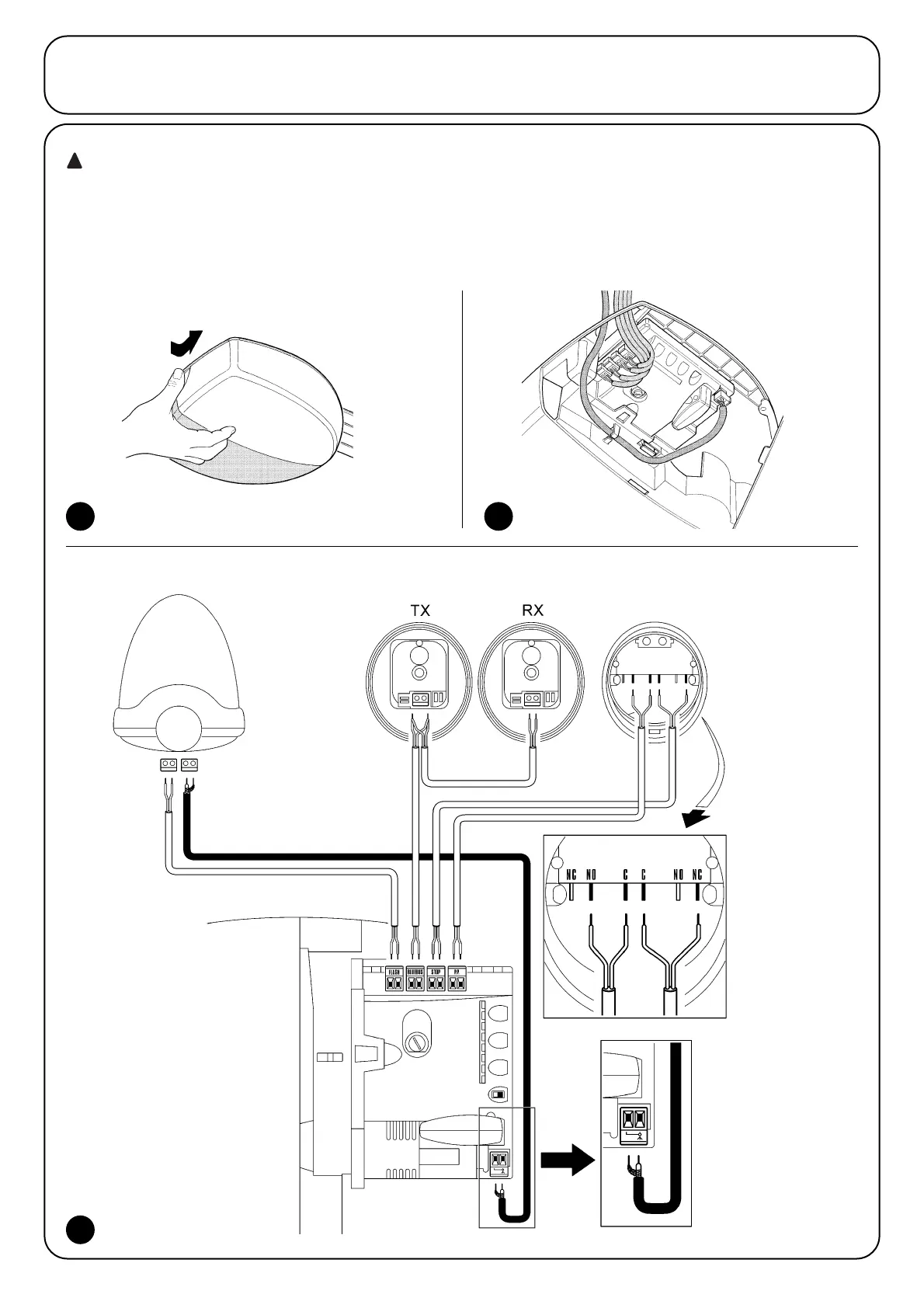

3. Connect up the cables according to the diagram in Figure 36. The
terminals can be removed in order to make this work easier.
34 35
36
3.3) Installation of the Various Devices
If other devices are needed, install them following the directions provided in the corresponding instructions. Check this in paragraph “3.5
Description of electrical connections” and the devices which can be connected to the SPIN in Figure 2..
