NE200/300 Series Drive User Manual
Appendix B: Adapted Encoder Instruction 217

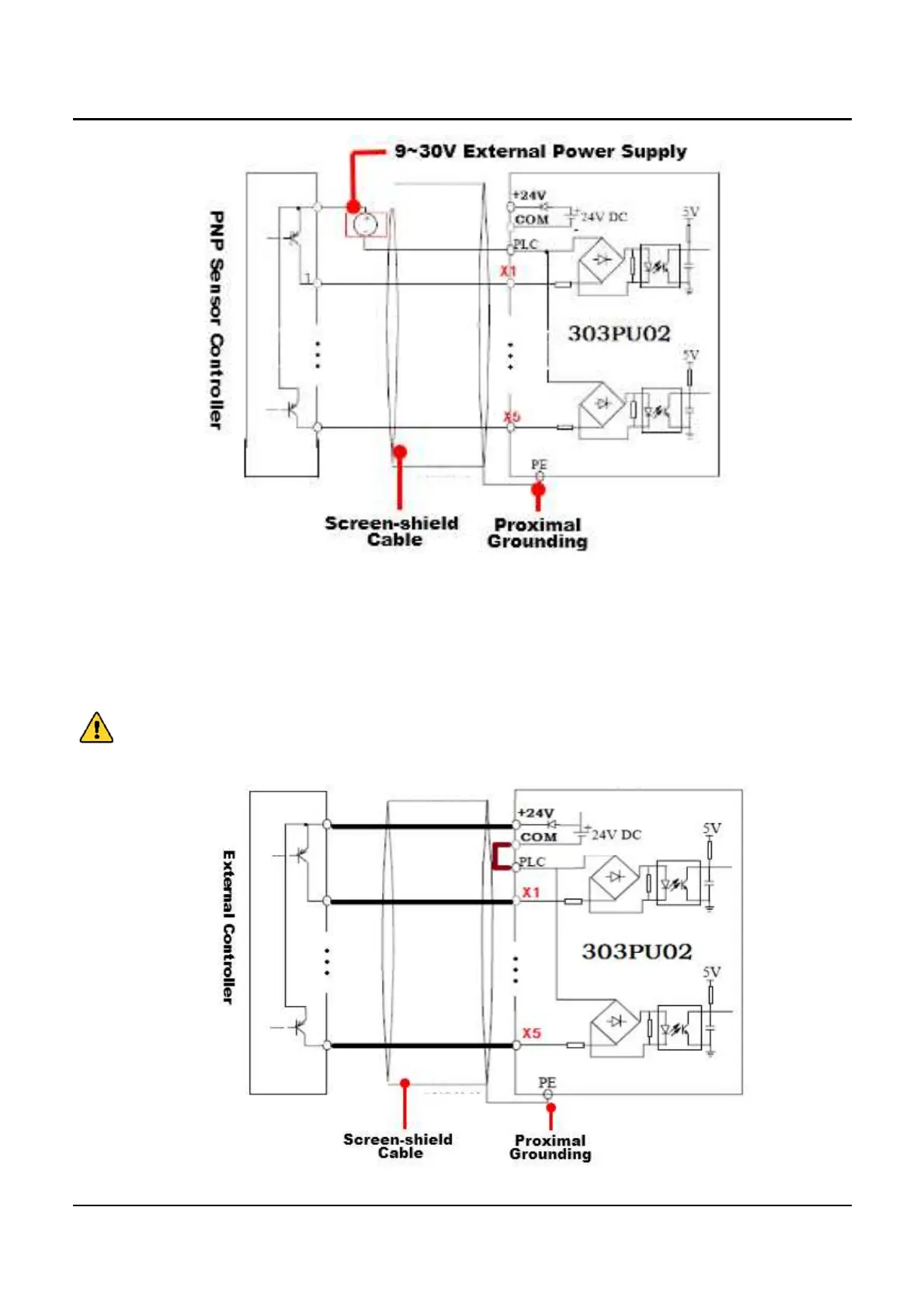

Fig. D-2 Drain connection wiring diagram
(Using external +24V)
Drain connection wiring (Using internal +24V)
Note:
Short-connect PLC and +24V
