Terminal correspondence Table:
Resolver option
terminal
Resolver PG
encoder
terminal
Resolver option
terminal
Resolver PG
encoder
terminal
R1 EXC+ S3 SIN-
R2 EXC- S2 COS+
S1 SIN+ S4 COS-
Note:
Toggle-switch on the option is at “ON’ location
See Fig. C-1 while the output signal of terminal AO+
、
AO-
、
BO+
、
BO-
、
ZO+
、
ZO-
is the
differential signal which can drive the 5V differential encoder.

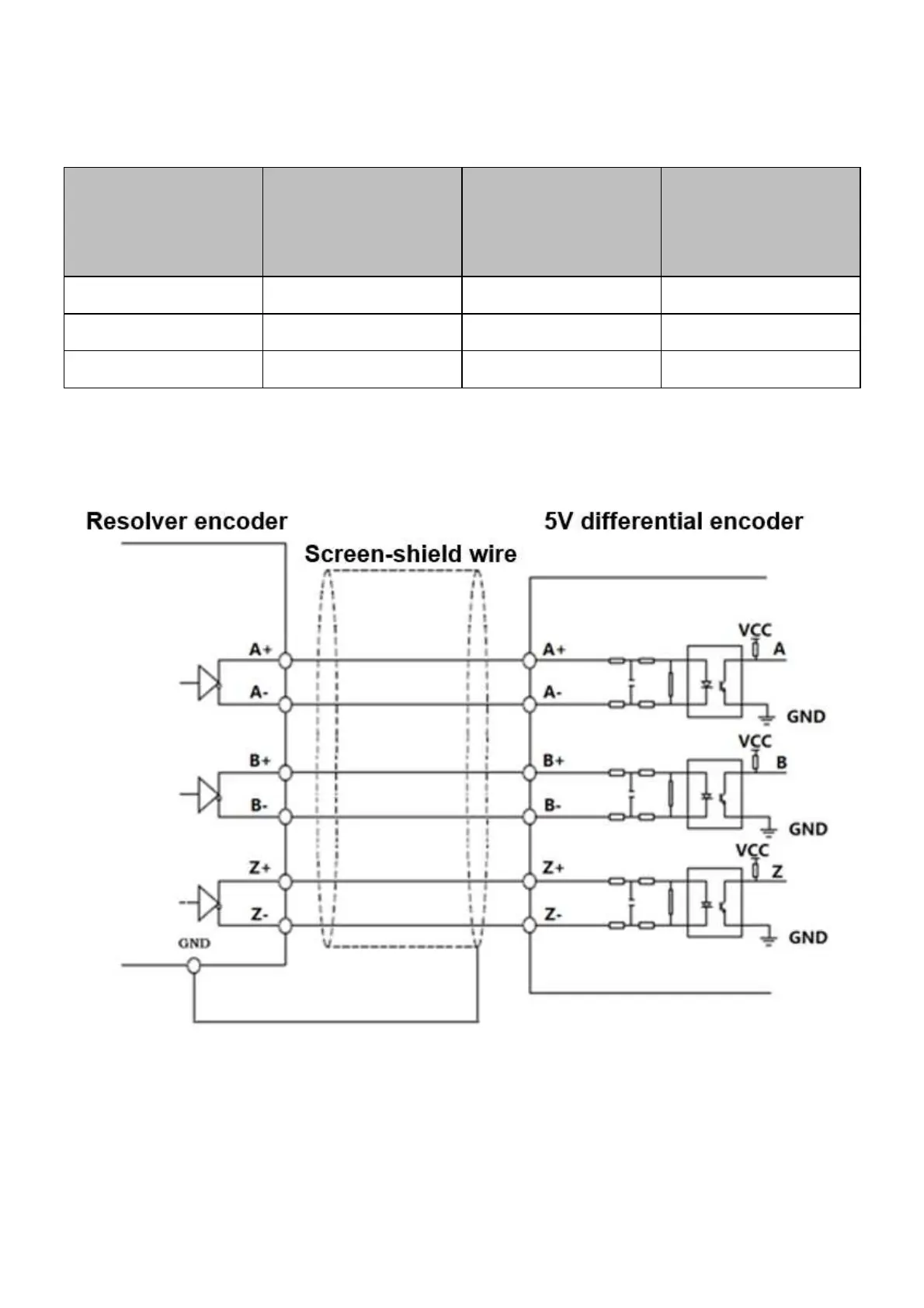

Fig. C-1 Wiring diagram between Resolver and 5V differential signal
encoder
