Nidec NE200 - Page 40

NE200/300 Series Drive User Manual
Chapter 3 Wiring of Drive 31
(0015G/0022PB~0220G/0300PB)
 3.4.4 NE300-4T0300G/0370P~NE300-4T1100G/1320P

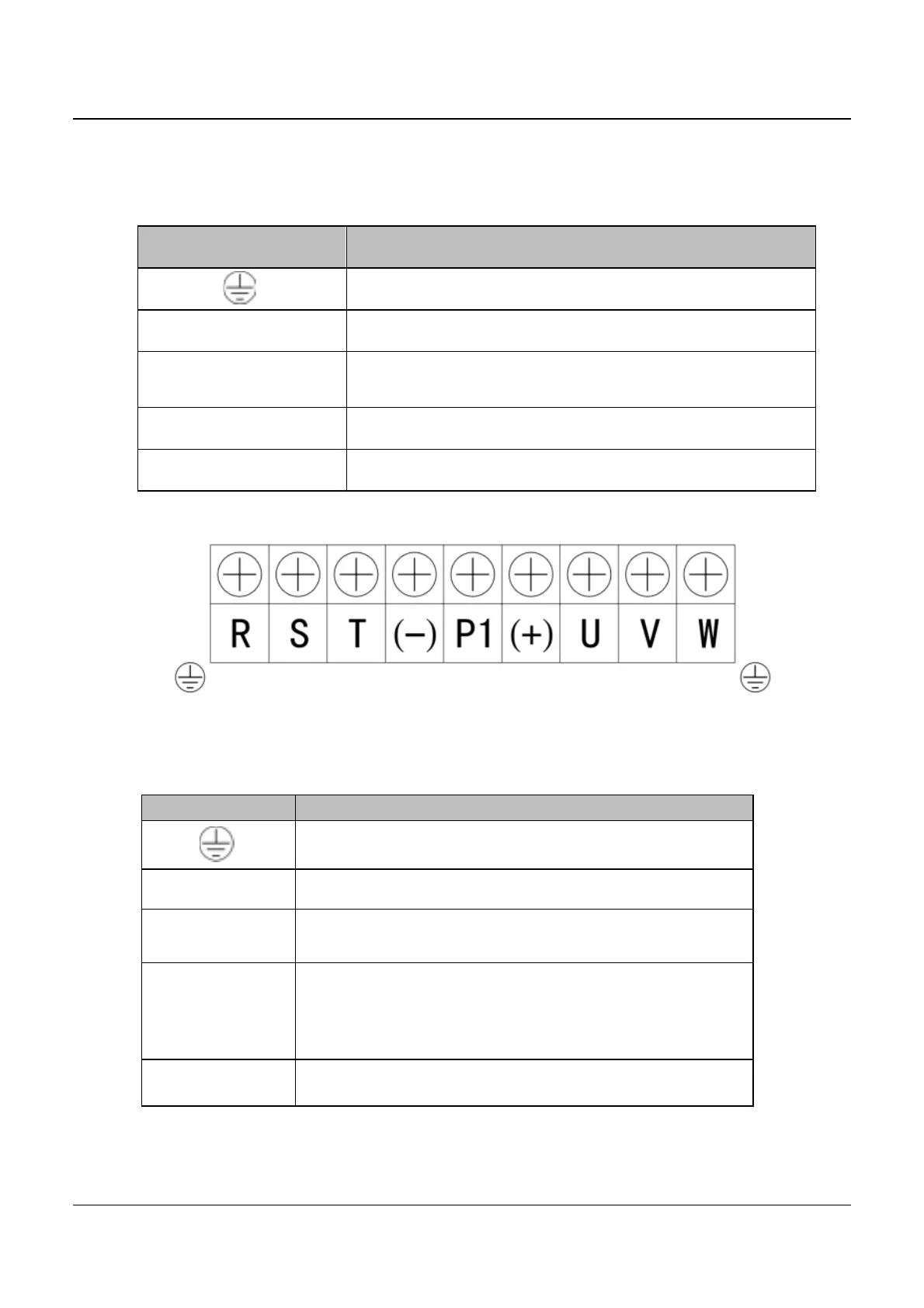

Fig.3-5 3 phase 400V main circuit wiring terminals
(0300G/0370P~1100G/1320P)
 3.4.5 NE300-4T1320G/1600P-U~NE300-4T2500G/2800P-U
Terminal symbol Terminal description
Grounding terminal PE
R
、
S
、
T
Three-phase AC input terminals
(-)
、
(+)
DC bus - + terminals for common bus DC
input
(+)
、
PB
Terminals reserved for braking resistor
U
、
V
、
W
Three-phase AC output terminals
Terminal
Terminal description
Grounding terminal PE
R
、
S
、
T
Three-phase AC input terminals
(-)
、
(+)
DC bus - + terminals for common bus DC
input
P1
、
(+)
Reserved for DC reactor connecting
terminal;
Short circuited with copper plate as factor
setting
U
、
V
、
W Three-phase AC output terminals
