Nikon Eclipse LV100POL User Manual

18
Filter type
NCB11
(color balancing filter)
ND4, 16
(ND filter)
GIF
( green interference filter )
IF
(interference filter)
Intended use
For color balance adjustment
and color photomicrography
For brightness adjustment
(ND4: transmittance 25%,
ND16: transmittance 6%)
For contrast adjustment
For interference
4
Episcopic Microscopy (with the Epi Illuminator Option)
When the epi illuminator is attached, you can perform the episcopic microscopy with the episcopic
illumination lamp house.
Check the cumulative lit-on time of the lamp before the microscopy. If the cumulative lit-on time has
exceeded the average operation life, replace the lamp with new one.

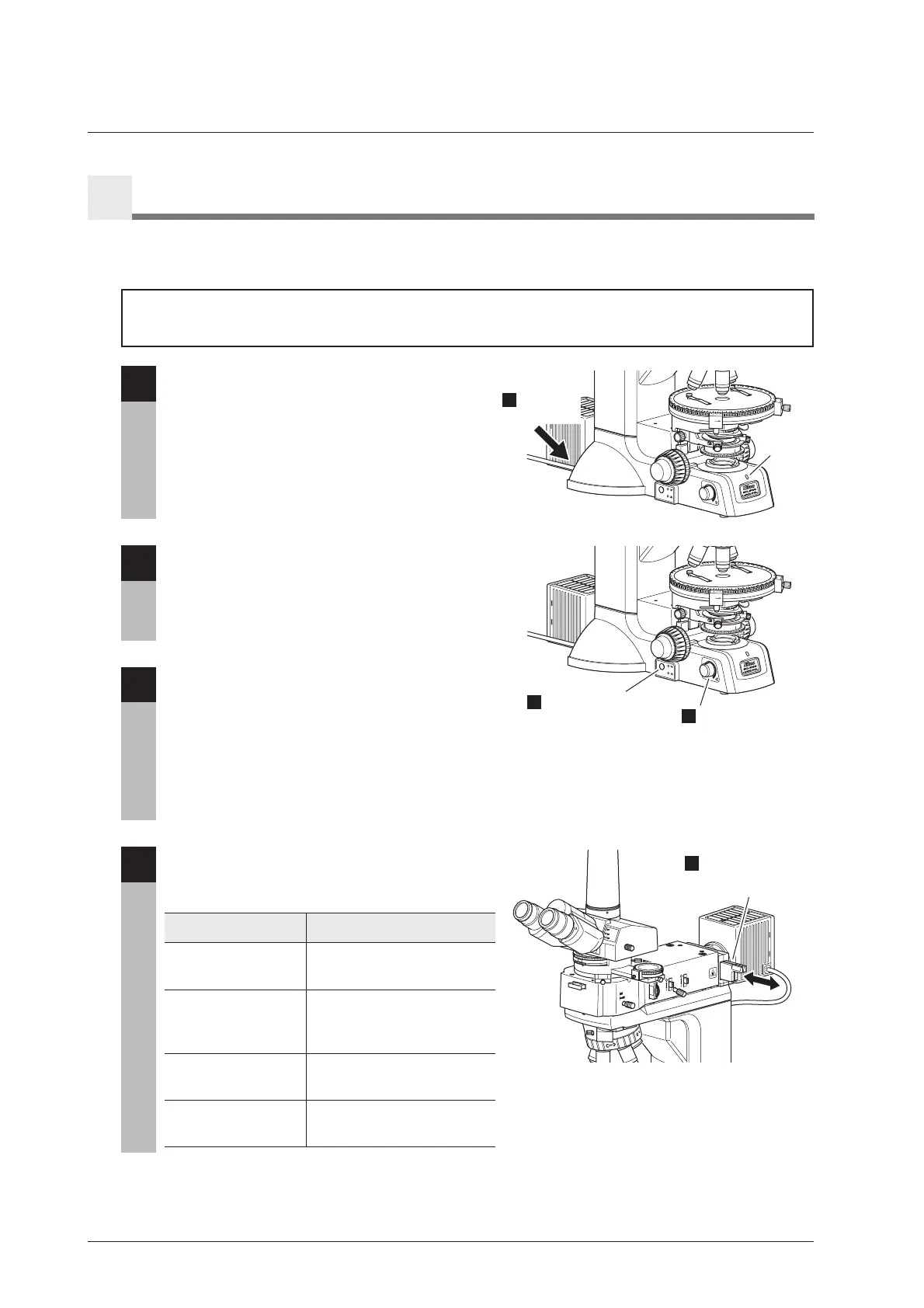

1
Turn on the power switch of the microscope.
When the microscope power is turned on, the
power indicator on the microscope base is lit.
See Page 22.
2
Push the epi/dia selection switch to select
the episcopic illumination. The indicator
for the episcopic illumination (upper side)
turns on.
See Page 23.
3
Turn the brightness control knob to adjust
the brightness.
When the brightness control knob is turned, the
brightness of the illumination selected by the epi/
dia selection switch is changed.
See Page 23.
When the lamp lights, the power indicator on the
microscope base lights green.
4
When necessary, operate the filter slider
on the epi illuminator to locate the desired
filters into the optical path.
E
P
I/D
IA
O
F
F
0.6
0.
8
0.
2
0
.
4
J
A
PA
N
A
chr
0.
9
0
CL
I
CK
ON
0
1
Power
indicator
Tu r n on
the power.
EP
I/D
IA
O
FF
0.6
0.
8
0
.
2
0
.
4
J
APA
N
A
chr
0
.
9
0
CL
I
CK
ON
0
2
Select the episcopic
illumination. The upper
indicator lights.
3
Adjust the
brightness.
F
.
STOP
A
.
STOP
BF
D
F
0
BINO
BINO
&
4
Set the appropriate
filter into the
optical path.
