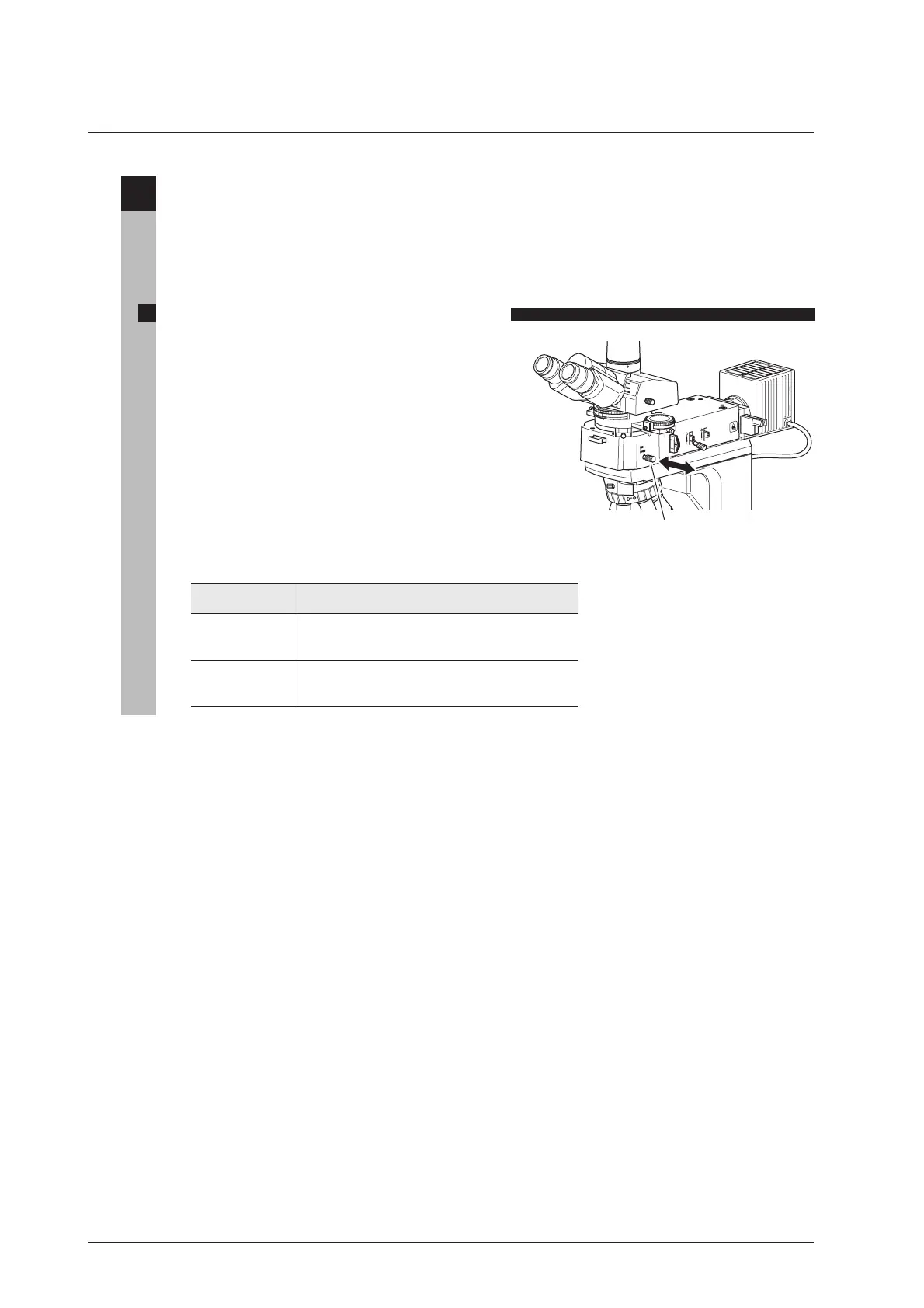

Episcopic Microscopy
To perform episcopic microscopy, attach the LV-UEPI universal epi illuminator and a lamp for the
epi illumination to the microscope.
1. Switching the Episcopic Illumination
You can switch the illumination between the bright-
field and the dark-field to be used for the episcopic
microscopy by operating the illumination selector
lever on the right side of the epi illuminator.
When the lever is pushed in, the bright-field (BF)
illumination is specified. And when the lever is pulled
out, the dark-field (DF) illumination is specified. But
you cannot perform the episcopic dark-field
microscopy with this microscope. Note that the dark-
field setting (DF) is used for the diascopic
illumination.
N
D
8
NC
B
F.S
.
0
.
4
0
.
2
0
.
8
0
.
6
J
A
P
A
N
A
chr
0
.
9
0
F
.
STOP
A
.
STOP
BF
D
F
0
BINO
PHO
T
O
PHO
T
O
BINO &
Illumination selector lever
Lever position
Push in (BF)
Pull out (DF)
Illumination method
Episcopic bright-field illumination
(and Episcopic polarization microscopy)
Diascopic bright-field illumination
(The dark-field microscopy is not available.)
