Nikon ECLIPSE Ni-E User Manual

Chapter 3 Individual Operations
90
Individual
Operations
3

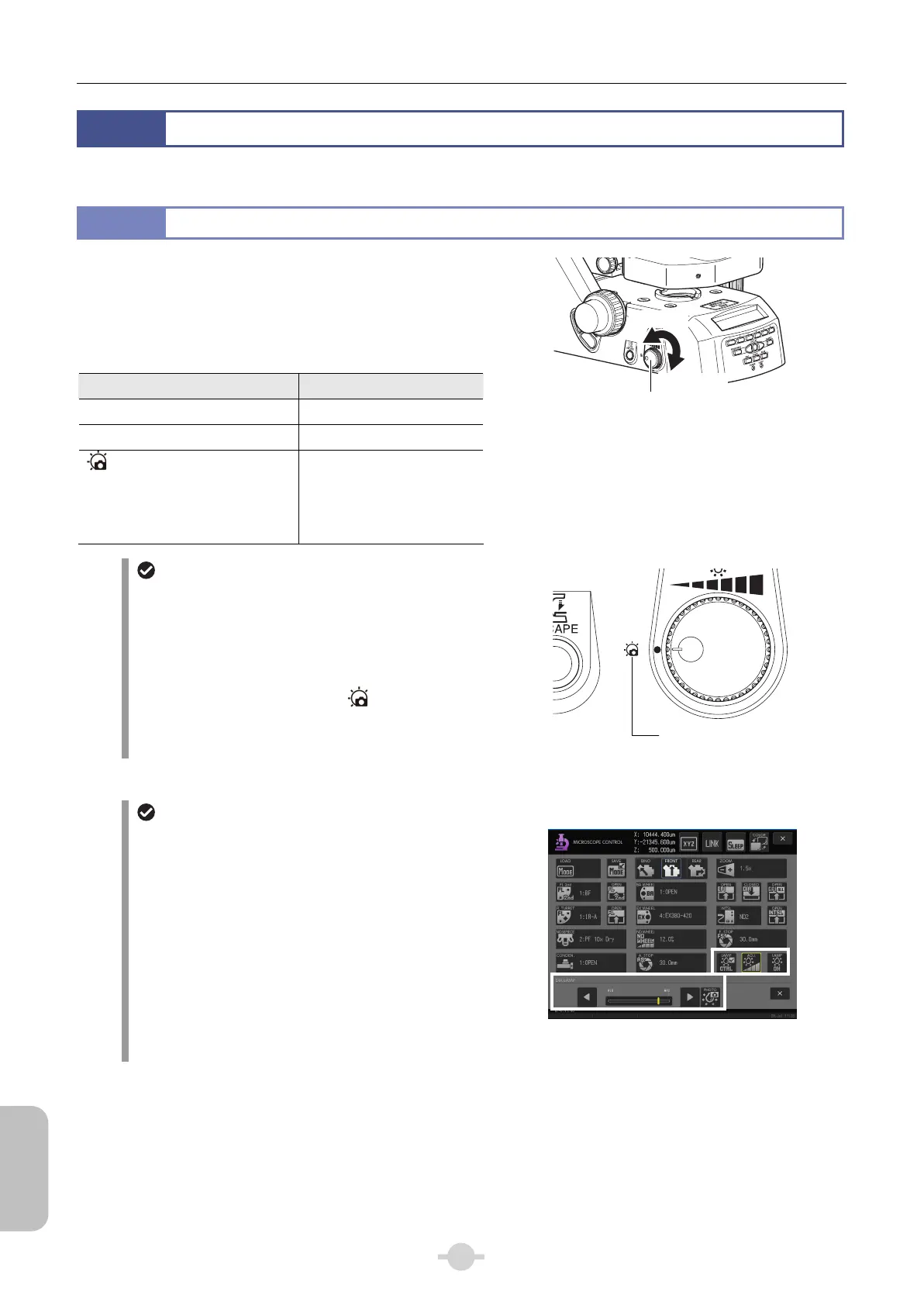

Adjusting the Brightness of a Diascopic Image
The brightness of a diascopic image can be adjusted by changing the lamp voltage or by using ND filters.
3.1
Adjustment by Lamp Voltage
Turning the dia-illumination brightness control knob changes the
voltage of the lamp to change the brightness of the diascopic
image.
Brightness Control Knob Rotation and Brightness of the
Brightness control knob Image brightness
Clockwise rotation Brighter
Counterclockwise rotation Darker
mark position
(Where the knob clicks to a stop
after rotating in counterclockwise
direction past the point of least
brightness)
Brightness with best color
reproduction
(photomicrography voltage)
Brightness Adjustment
Photomicrography voltage setting: for
improved color reproduction
Changing the lamp voltage for brightness adjustment will
affect the lamp color temperature and alter the color
balance of the image. Increasing the voltage will result in
a bluish tint, while reducing the voltage results in a
reddish tint. If accurate color reproduction is critical, set
the brightness control knob at the
mark and bring
the NCB11 filter in the filter cassette into the optical path
for optimal color reproduction. To adjust the brightness,
use the ND filters.
Photomicrography voltage Setting
Control of illumination and brightness
adjustments of the lamp
The lamp can also be turned on and adjusted from DS-L3
by configuring the lamp control button on the DS-L3's
[MICROSCOPE CONTROL] screen or [CAM-MIC
CONTROL] screen. When Ni-E is turned on, control
switches on the Ni-E are enabled.
To control from DS-L3, switch control to the DS-L3 side by
pressing the [LAMP CTRL] button configured on DS-L3.
DS-L3 will have control when the button is checked.
[MICROSCOPE CONTROL] screen
[LAMP CTRL] button: Switch lamp control
Sub screen: Brightness control
Operation on DS-L3 (See “23.2 Controlling the Microscope”.)
Brighter
Darker
Dia-illumination brightness
control knob
Photomicro
g
ra
p
h
y
volta
g
e
