Chapter 3 Individual Operations
111
Individual
Operations
Various interlocking settings along with the switch of objectives
The following can be interlocked when switching objectives:
Retraction of the elevating section (stage)
Adjustment of the size of the aperture diaphragm
Adjustment of the size of the field diaphragm
Adjustment of the ND value of the motorized ND filter wheel
Switching of the turret of the motorized universal condenser
Switching of an XYZ speed
ALF (parfocal correction)
See “19.2 Interlocking Function” for conditions for interlocking and interlocked operations.
11.2
Intelligent/Manual Nosepiece Operation
To switch objectives using an intelligent nosepiece or manual
nosepiece, manually turn the nosepiece.
Turn the nosepiece correctly so that it comes to the click stop
position.
Attach the objective so that the magnification increases when
the nosepiece is rotated clockwise when viewed from the top.
When using an intelligent nosepiece, as with the motorized
nosepiece, setting the attachment information on the objectives
helps you check the objective, that is in the optical path, on the
display.

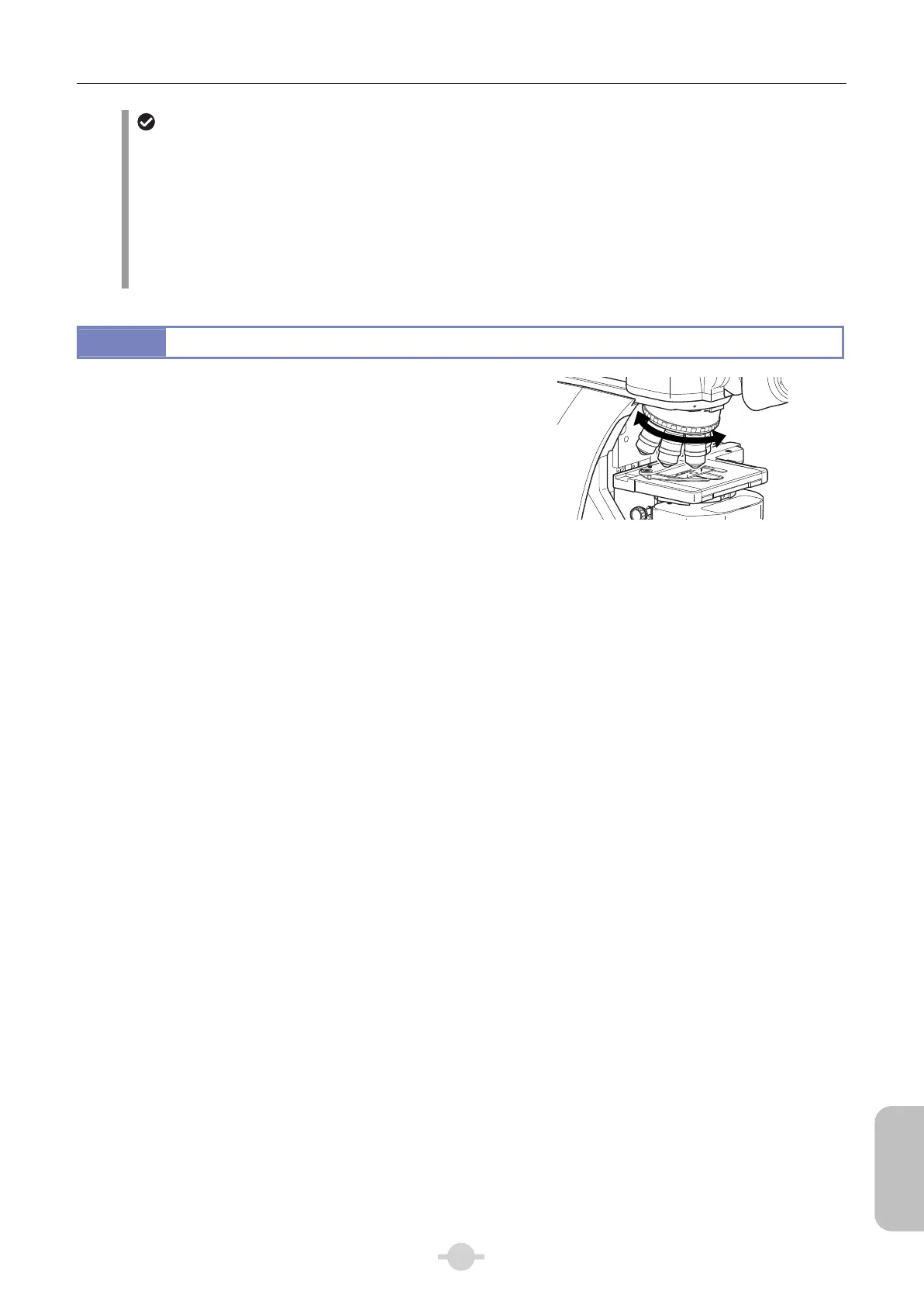

Manual nosepiece operation
