Nikon ECLIPSE Ni-E User Manual

Chapter 3 Individual Operations
167
Individual
Operations
(2) Buttons on the [MICROSCOPE CONTROL] Screen
In order to control the microscope from DS-L3, press the [MIC]
or [CAM-MIC] button on the [MICROSCOPE CONTROL] top
screen to display the [MICROSCOPE CONTROL] or [CAM-MIC
CONTROL] screen. The same operation is available from either
screen, but the [MICROSCOPE CONTROL] screen is used as
an example to summarize the operation in this document.
The [MICROSCOPE CONTROL] screen displays the buttons as
shown below. The button alignment is set to the default setting.
When you want to use a function that is not shown, see “23.1
Setting Up the Microscope - (3) Configuring the Button
Functions - (3-3) Buttons on the Screens on DS-L3” to display
your desired button.

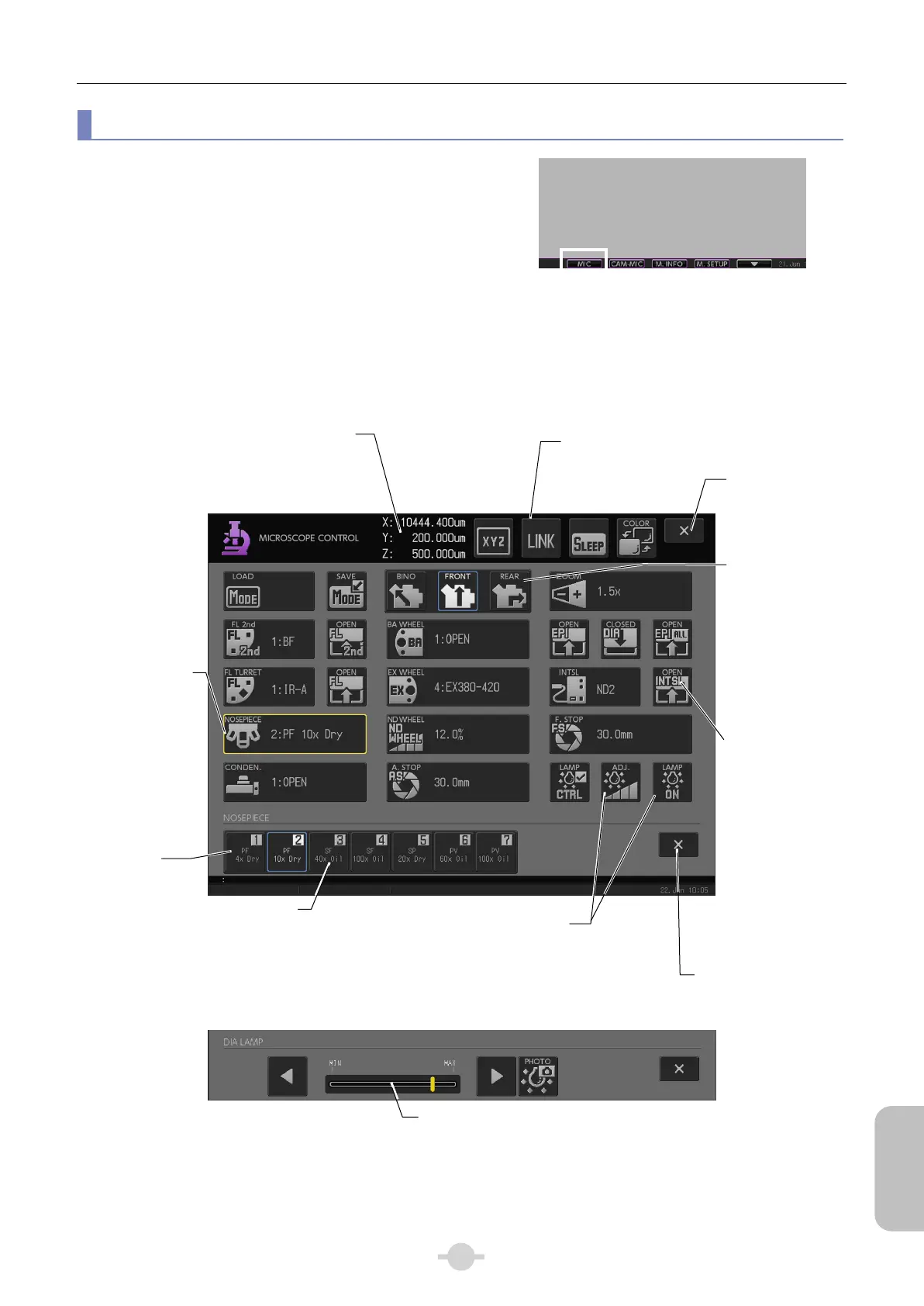

MICROSCOPE CONTROL top screen
Example of a sub screen with a slider (Lamp adjustment)
A
button for
opening an
operation sub
screen
(nosepiece, FL
turret, etc.)
Press the button
to open a sub
screen at the
bottom of the
screen.
X: X coordinate of the motorized XY stage
Y: Y coordinate of the motorized XY stage
Z: Z coordinate of the microscope's
elevating section
Closes the
[MICROSCOPE
CONTROL]
screen.
Operation
buttons (optical
path, etc.)
Press a button to
operate the
corresponding
motorized device.
The selected
button is
displayed with a
blue frame.
ON/OFF or
OPEN/CLOSE
button (lamp,
motorized shutter,
etc.)
Indicates the
current status with
an icon. Each time
the button is
pressed, the
status switches
and the
corresponding
motorized device
operates.
Closes the sub screen.
Operation Button
Press a button to operate the
corresponding motorized device.
The selected button is displayed
with a blue frame.
Sub screen
Moves to the [SETUP MENU] - [MOVEMENT]
screen.
These buttons are
enabled when DS-L3
has control of the
lamp.
Slider
A
vailable operations:
- Dragging the yellow marker being pressed
- [Press the [◄][►] buttons.
- Pressing the area to the left or right of the yellow marker (for greater
movement than when using the [◄] or [►] button)
