Attaching the filter slider
Attached the desired filter to the filter slider, and
attach the filter slider to the slot of the dia-illuminator.
Do not touch filters or other optical components
with your bare hands.
Although the filter slider for the 30W dia-illuminator
has a different shape, the method for securing the
filters is the same.

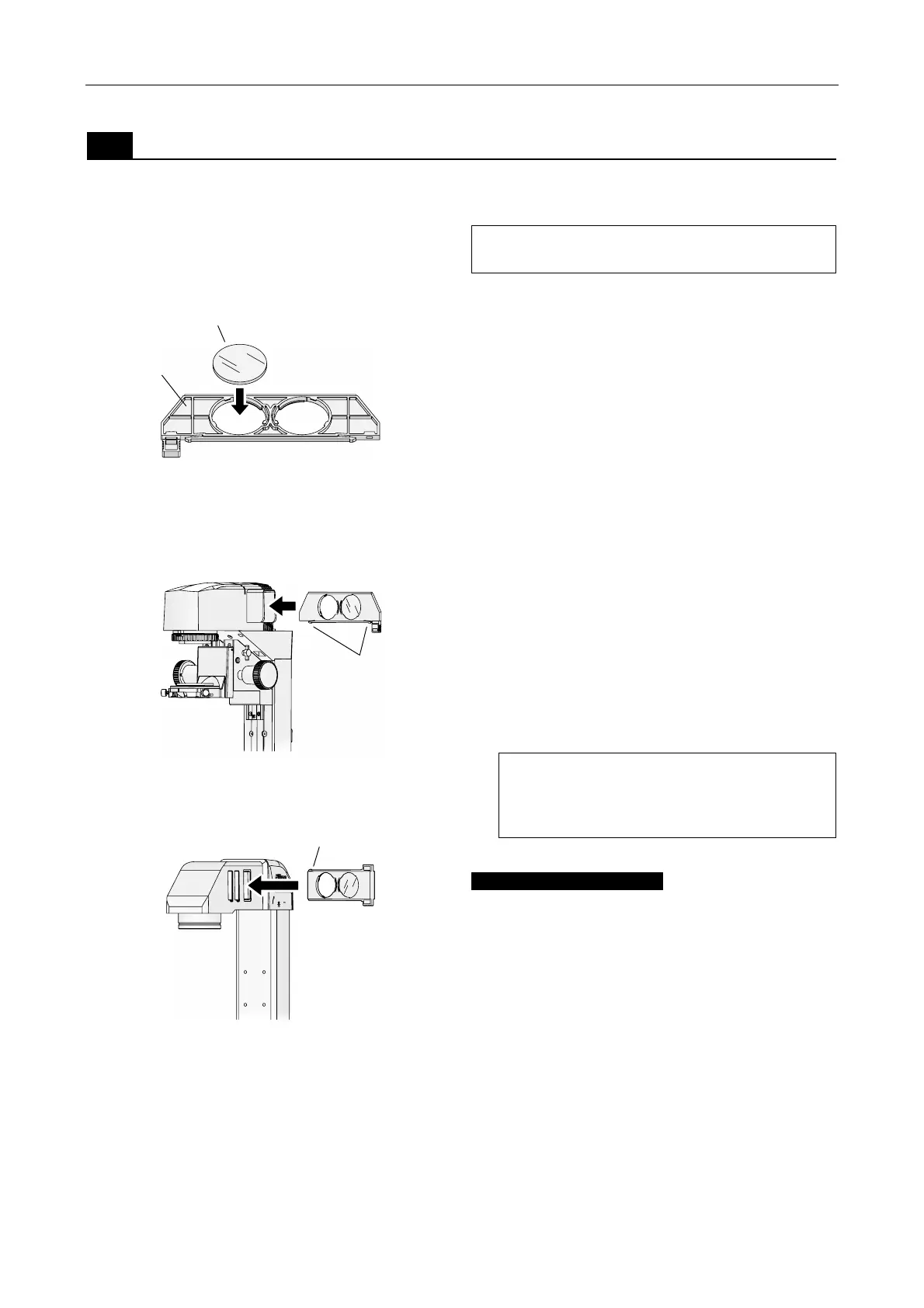

Figure 4-25 Attaching filters
Figure 4-26 Inserting filter sliders
(for Dia Pillar Illuminator 100W)
OPEN
TI
-
DS 30W
6V 30W
HALOGEN
Figure 4-27 Inserting filter sliders
(for Dia Pillar Illuminator 30W)
1. Attach the desired filter to the filter slider.
Attach it from the back of the filter slider. The
mounting hole has three tabs to keep the filter
from falling. Only one tab can be moved to the
side. Move this tab aside, and attach the filter.
2. Affix a label indicating the filter type on the
tab of the filter slider.
3. Insert the filter slider into the slot of the dia
pillar illuminator.
The filter slider has latches that determine the
limit of slide operation. Press the latches up, and
press the filter into the slot.
You can insert up to four filter sliders for 100 W
type illuminator and three filter sliders for 30 W
type illuminator.
You can insert filters sliders from the right or the
left. If they are all inserted from the same
direction, they will be difficult to handle, so you
should insert them alternately from the left and
right.
To maintain uniformity with the Dia Pillar
Illuminator 100W, install the diffusion filter
(filter slider D) into the slot nearest to the
lamphouse.
Removing a filter slider
Latches at both ends of the filter slider are at their
end point when sliding. When removing a filter slider,
you can slide it out by pushing the latch on the
opposite side up with your finger to release the filter
slider. Applying undue force on the filter slider can
break the latches.
Filter
Filter slider (back)
Latches
Latch
