Nikon Eclipse Ti-E

Chapter 4 Assembly
108

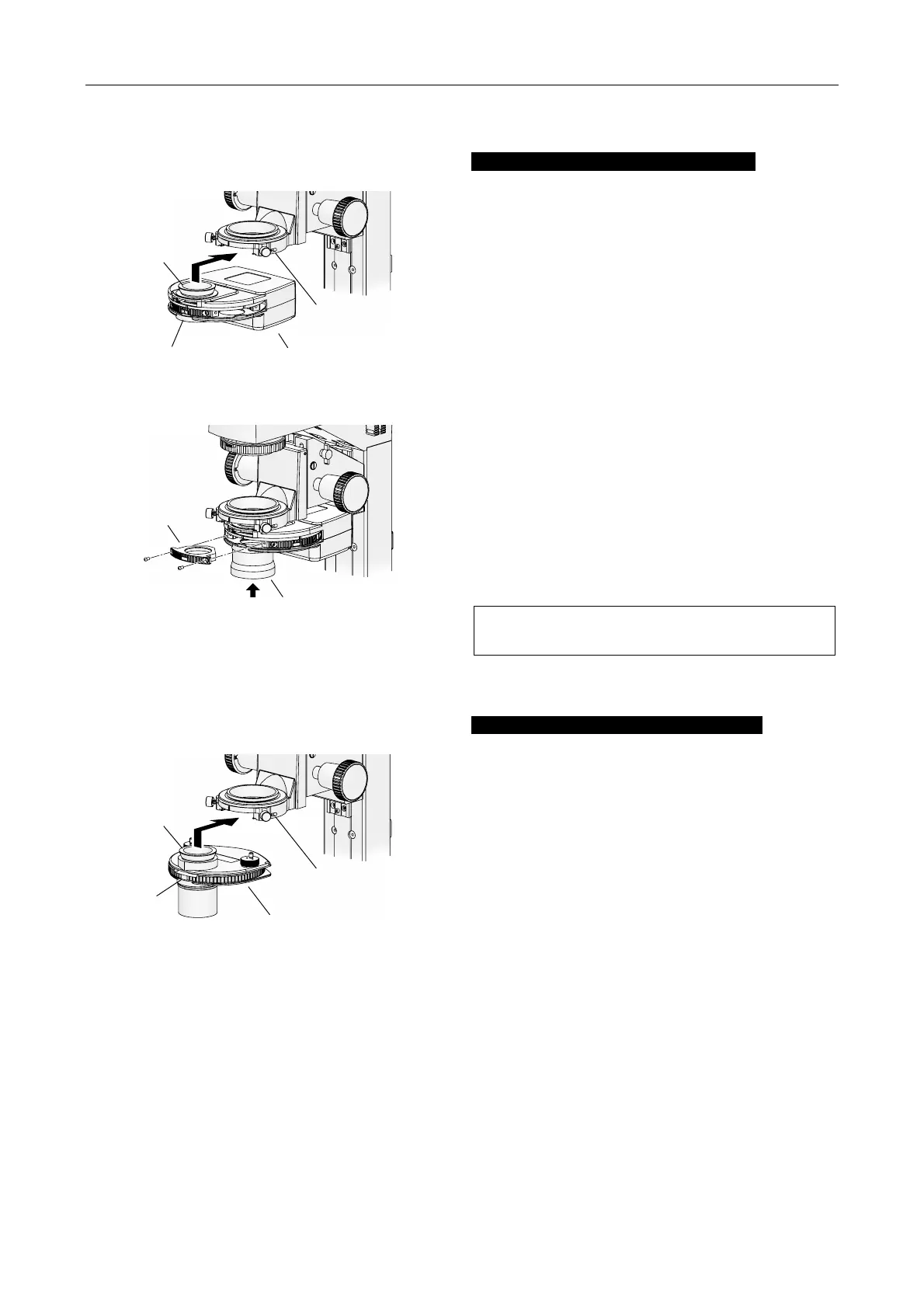

(2) Attaching the system condenser
Figure 4-36 System condenser attachment
Figure 4-37 Condenser cassette and
condenser lens attachment
1. Rotate the condenser turret to the “A”
position (vacant hole cassette position for
bright-field microscopy).
2. With the “A” label facing the front (towards
yourself), insert the circular dovetail joint on
the system condenser into the bottom of the
condenser holder, and secure it by tightening
the condenser clamp screw.
Attach the condenser turret by sliding it in from
the front.
3. Insert the condenser cassette into the
condenser turret, and secure it with two hex
socket head screws.
Up to five condenser cassettes can be attached
to the turret. Attach the cassettes so that their
numbering is increased by rotating the turret
clockwise (as viewed from above).
4. Screw in the condenser lens into the bottom
of the turret.
For combinations of condenser lenses and
condenser cassettes, see Chapter 3, “Operation.”
(3) Attaching the ELWD-S condenser
Figure 4-38 ELWD-S Condenser attachment
With the indication on the turret facing the front
(towards yourself), insert the condenser turret into
the bottom of the condenser holder, and secure it by
tightening the condenser clamp screw.
Condenser
clamp screw
Dovetail joint
System condenser
Position “A”
Condenser
cassette
Condenser lens
Condenser
clamp screw
Dovetail joint
ELWD-S Condenser
Condenser
display
