Nikon Eclipse Ti-E

Chapter 4 Assembly
109
(2) Attaching to TI-DS Dia Pillar Illuminator 30W
The following condensers can be attached to TI-DS
Dia Pillar Illuminator 30W:
• ELWD-S Condenser
• HMC Condenser
(1) Attaching the ELWD-S condenser
EN
TI
-
DS 30W
6V
30W
HALOGEN

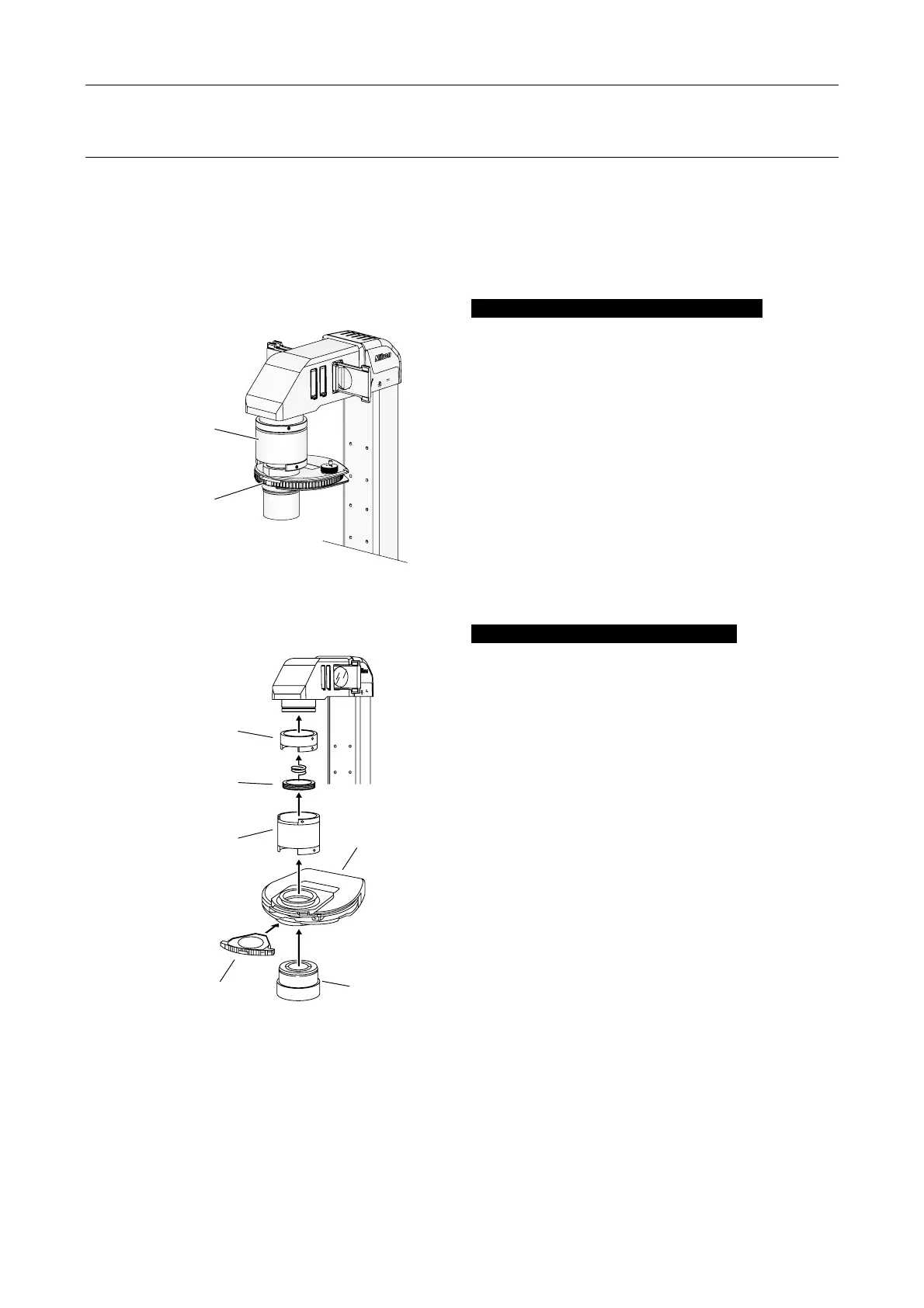

Figure 4-39 ELWD-S Condenser attachment
1. Secure the condenser holder to the dia pillar
illuminator.
2. Attach the ELWD-S condenser to the
condenser holder.
(2) Attaching the HMC condenser
OPEN
TI
- DS 30W
6V 30W
HALOGEN
Figure 4-40 HMC Condenser attachment
(system condenser)
1. Attach the 52 mm polarization filter to the
extension tube provided with the HMC
condenser lens.
Threads are cut on the inside of the extension
tube and on the outside of the polarization filter.
2. Attach the extension tube to the dia pillar
illuminator.
3. Attach the condenser holder to the extension
tube.
4. Attach the turret on the system condenser to
the condenser holder.
5. Screw in the HMC condenser lens into the
turret.
6. Attach the HMC condenser cassette to the
turret.
Condenser holde
r
ELWD-S Condense
r
Extension tube
System condenser
turret
HMC condenser
lens
Condenser cassette
52 mm polarization filte
r
Condenser holde
r
