Installation
Positioning the unit
ATTENTION
Good clearance in front of the unit is recommended (see table). When positioning the unit, you
should always consider future services and maintenance. It must be easy to replace filters and
it must be possible to replace fans or other components. There must be space for easy cleaning
of the unit. When cleaning the unit, water may run out of cleaning and condensation drains.
There must therefore be space for mounting water locks at condensate drains as well as any.
shut-off taps at cleaning drains.

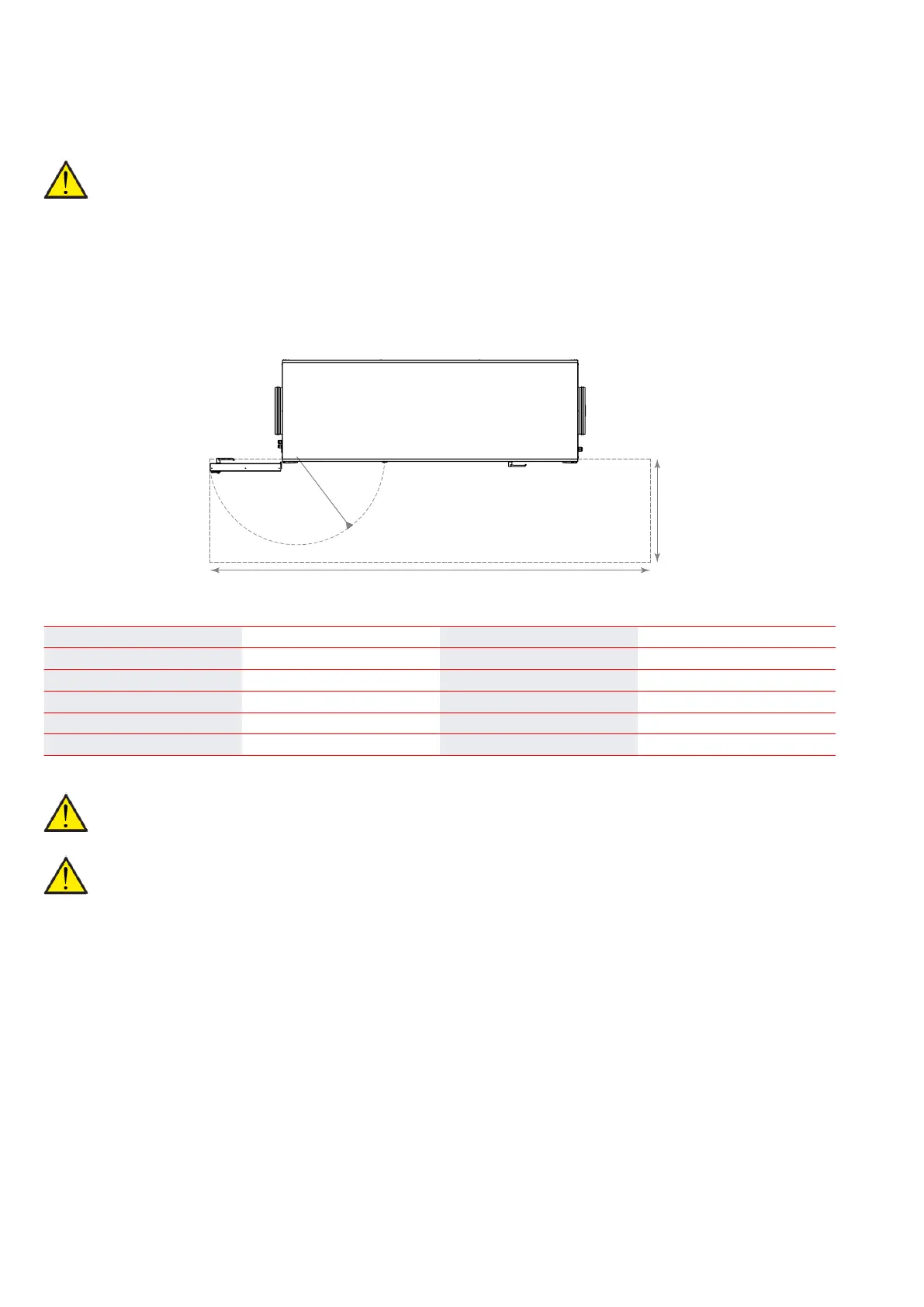

X and Y = Recommended service distance. Z = Door turning radius.
Y
Z
Unit X (in mm) Y (in mm) Z (in mm)
VPM 120 3007 676 516
VPM 240 3285 750 565
VPM 360 3385 900 565
VPM 480 3385 900 565
VPM 560 3385 900 565
ATTENTION
The unit must be level to enable proper drainage from the condensate tray.
ATTENTION
The unit produces little noise and only weak vibrations, but you should still take into account
potential vibrations that can spread from the unit to individual building components. In order to
separate the unit from its foundation, it is therefore recommended that you install vibration
absorbers under the unit. There should be approx. 10 mm distance to other building
components and to permanent fixtures.
