Plumbing connections - accessories

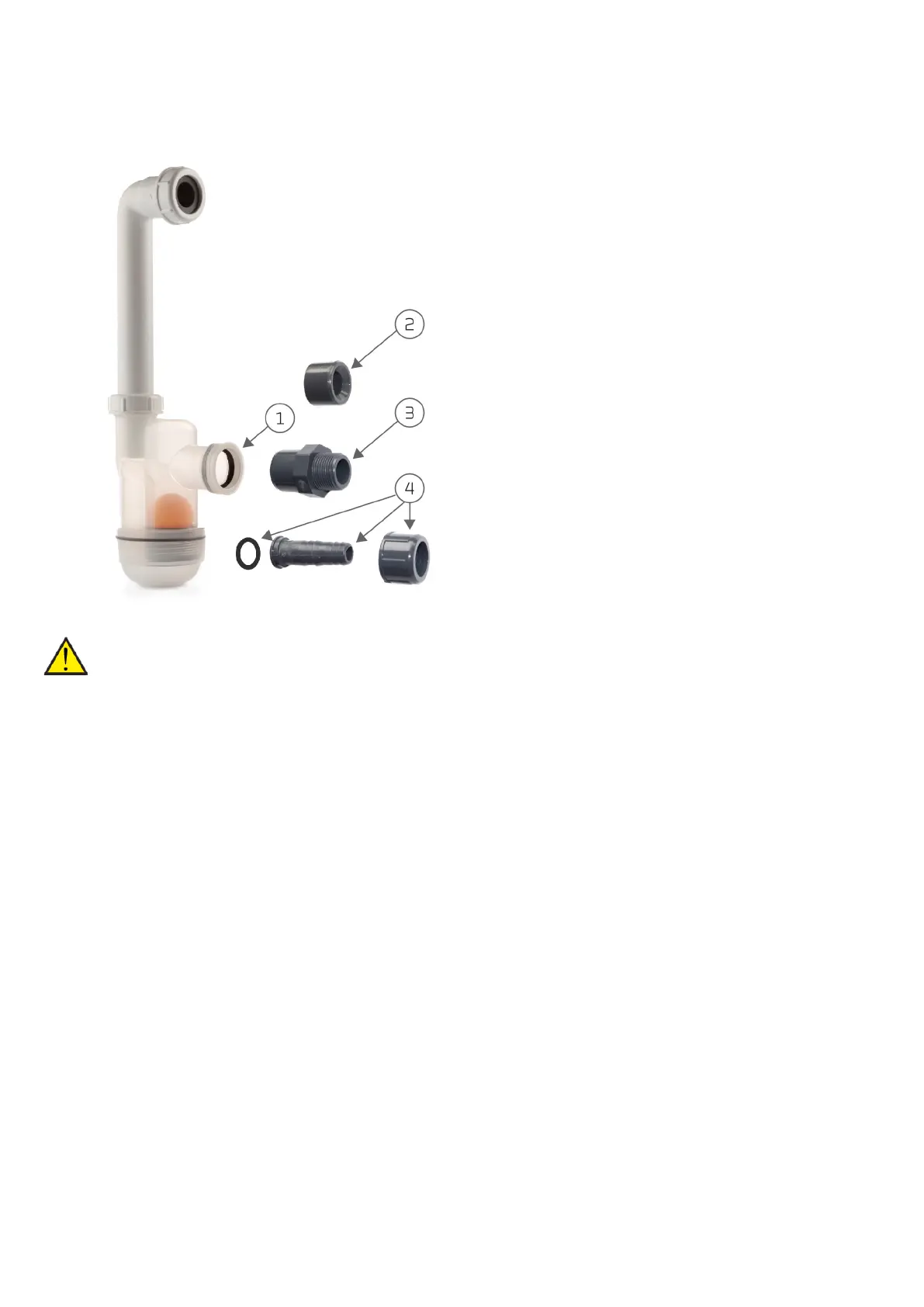

Water trap with ball (option)
Connection options with Nilan’s water trap:
1.
Water trap with Ø32 mm reducing fitting
2.
Reducing fitting for Ø20 mm
3.
Reducing fitting for
¾
" RG
4.
Reducing fitting for
½
" tube
ATTENTION
Water trap with ball can only be used at the condensation drain in the suction side of the unit.
30
29
31
Table of Contents
Default Chapter
2
Table of Contents
2
Safety
4
Power Supply
4
Pressure-Bearing Equipment
4
Disposal
4
Heat Pump
4
General Information Introduction
5
General Information Prior to Installation
5
Disclaimer
5
Symbol Explanation
5
Supervision of Application
5
Type Plate
6
Warnings and Rules
7
Not Areas of Application
7
No Duct Connection
7
Opening the Unit
7
Unit in Pause Mode
7
Unit Type
8
Product Description
8
Dimensional Drawing VPM 120
10
Dimensional Drawing VPM 240
11
Dimensional Drawing VPM 360
12
Dimensional Drawing VPM 480/560
13
Location of Vibration Dampers
14
Functional Diagram VPM 120-560
15
Accessories
16
Handle with Lock Cylinder
16
VTZ Compressor
16
Shut-Off Damper
16
Water After-Heating Element
16
Electrical After-Heating Element
16
Filter Monitoring - Pressure Transmitter
17
Humidity Control
17
Heating Cable
17
Water Trap with Ball
17
Vibration Absorbers
17
Pressure Control
17
CO2 Sensor
18
Top Cover
18
Handling
19
Unpacking
19
Transport after Unpacking
19
Installation
20
Positioning the Unit
20
Placement and Installation of Units
21
Outdoor Mounting
21
Electrical Installation
22
Electrical Connections
22
Safety
22
Connections Overview
22
Electrical Connection of the Unit
23
Power Supply
23
Unit
23
Control Panel
24
Cts602I HMI Touch
24
Wall Bracket
25
Electrical Connection of Accessories
26
Connection to User Selection and Modbus
26
Water After-Heating Element (Accessory)
27
Electrical After-Heating Element (Accessory)
28
Plumbing Installation
29
Condensate Drain
29
Important Information
29
Connecting Condensate Drain
29
Plumbing Connections - Accessories
30
Water Trap with Ball (Option)
30
Water After-Heating Element (Accessory)
31
Ventilation Installation
35
Duct System
35
Legislation
35
Duct Connections
35
Balancing
35
Important Information
35
Curves for Airflow Measurement
36
Vpm 120
36
Vpm 240
36
Vpm 360
37
Vpm 480
37
Vpm 560
38
Maintenance and Cleaning
39
Important Information
39
Maintenance
39
Maintenance Scheme
39
Replacement of Filters
40
Cleaning
40
Cleaning the Unit
40
Ordering Spare Parts
41
Filtre VPM 120
41
Filtre VPM 240
41
Filtre VPM 360
41
Filtre VPM 480-560
41
