Wall bracket
M
ount the HMI panel on the wall using the integrated wall bracket.
The panel should be visible so it is possible to change settings and to monitor warnings or alarms
regarding operation.

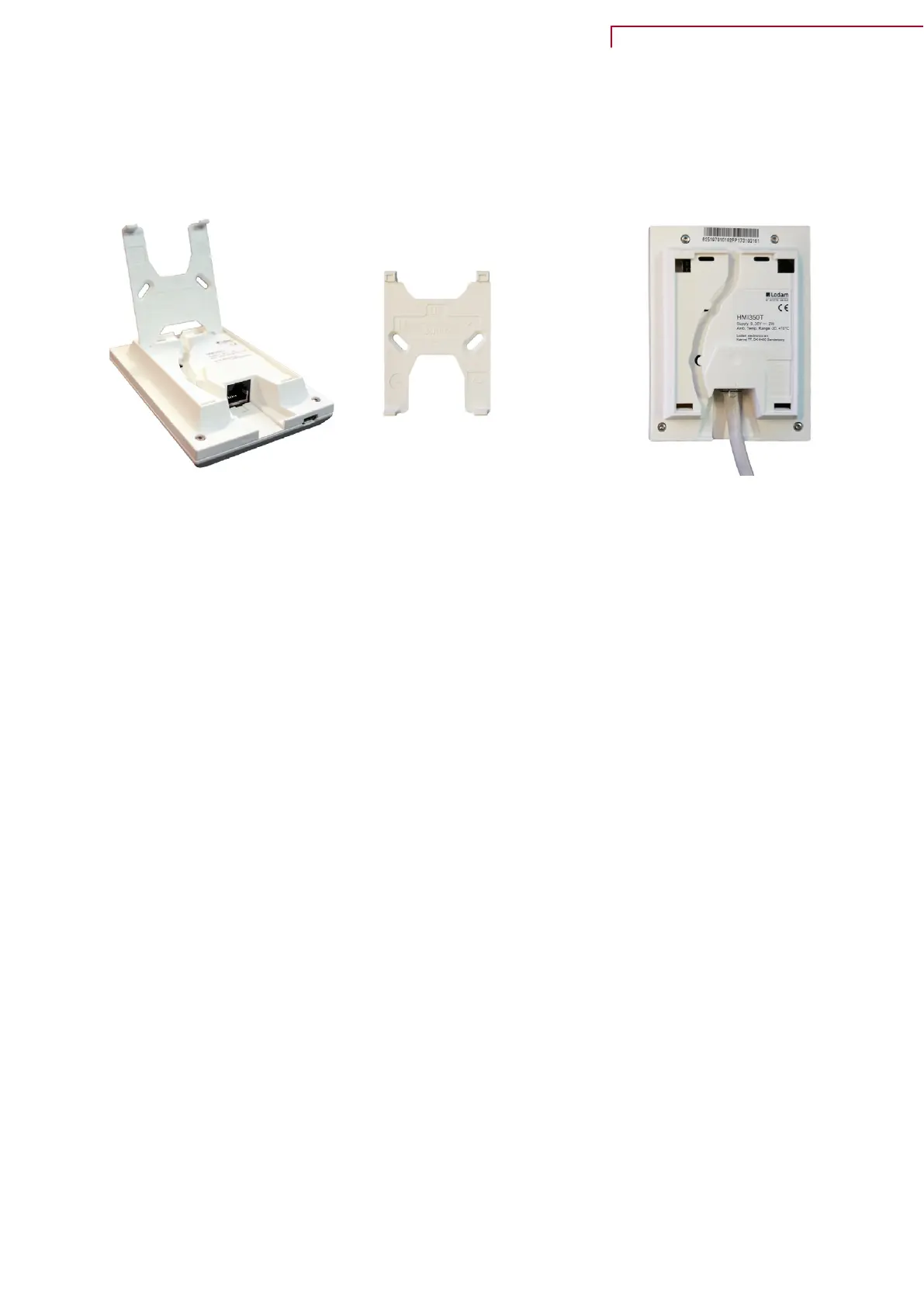

The wall bracket is located at the back of
t
he panel. You can detach it by loosening
the bracket at the bottom of the panel.
You can then remove it.
Mount the bracket on the wall using 2
s
crews.
Click the RJ12 plug into place at the
bottom of the HMI panel. The wire can
run down along the wall, into the wall or
through the groove at the back of the
panel.
VPM 120-560 (English)
BY NILAN
25
