VPM 360
A
ssessment of electricity consumption at different air volumes / pressure losses.
0
50
100
150
200
250
300
350
400
450
500
550
600
650
700
500 1000 1500 2000 2500 3000 3500 4000
Pt External pressure drop [Pa]
q
V
[m
3
/h]

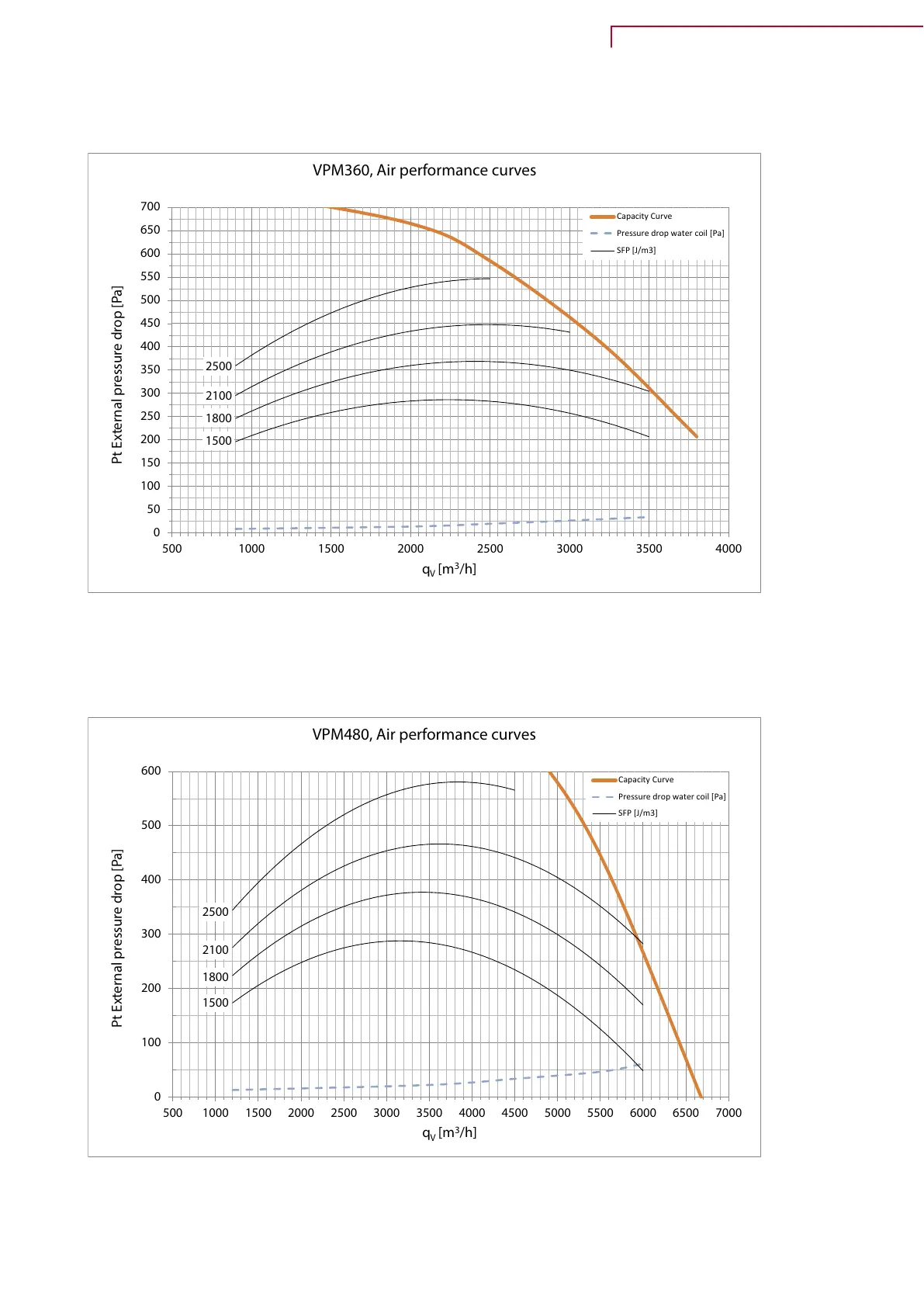

VPM360, Air performance curves
Capacity Curve
Pressure drop water coil [Pa]
SFP [J/m3]
1500
1800
2100
2500
VPM 480
A
ssessment of electricity consumption at different air volumes / pressure losses.
1800
0
100
200
300
400
500
600
500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000
Pt External pressure drop [Pa]
q
V
[m
3
/h]
VPM480, Air performance curves
Capacity Curve
Pressure drop water coil [Pa]
SFP [J/m3]
2500
2100
1500
VPM 120-560 (English)
