Control panel

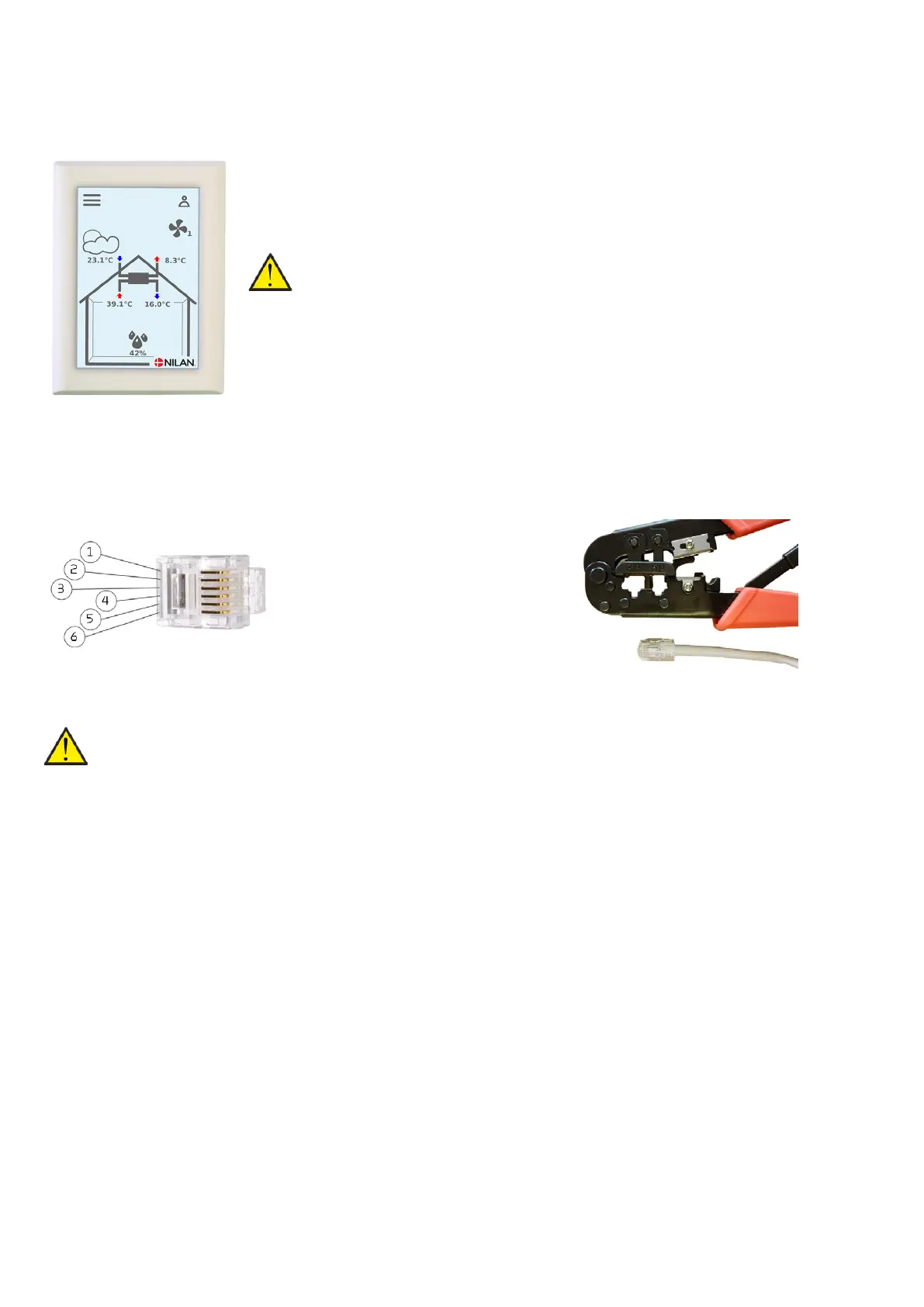

CTS602i HMI Touch
With the CTS602i HMI Touch panel, Nilan's units can be controlled on-site.
The control panel is connected to the CTS602i control unit in the factory via
a connection box on the side of the plant, and comes with a 3 meter Cat.5e
cable of the type 4x2x0.5mm pair cord.
ATTENTION
If you want a longer cable, use a standard LAN cable (maximum
length 50 meters).
If you want to extend the cable, please be aware of the following:
Installation in the RJ12 plug
1. Empty
2. Empty
3. Green (A2)
4. Green/white (B2)
5. Brown (12V)
6. Brown/white (GND)
Use RJ12 plug and RJ12 crimping tool.
ATTENTION
It is possible to purchase a 10 or 20 meter cable with pre-assembled RJ12 plug for the control
panel respectively.
24
