Nilan delivery:
1
. Water after-heating element
2. Actuator and control valve (loosely attached,
the wiring is connected from the factory)
B3 Frost thermostat sensor
T9 temperature sensor
Non-Nilan delivery:
3. Circulation pump (eg Grundfoss UPS 25-40 or
equivalent)
4. Dirt strainer
5. Stop valve
6. Bypass valve

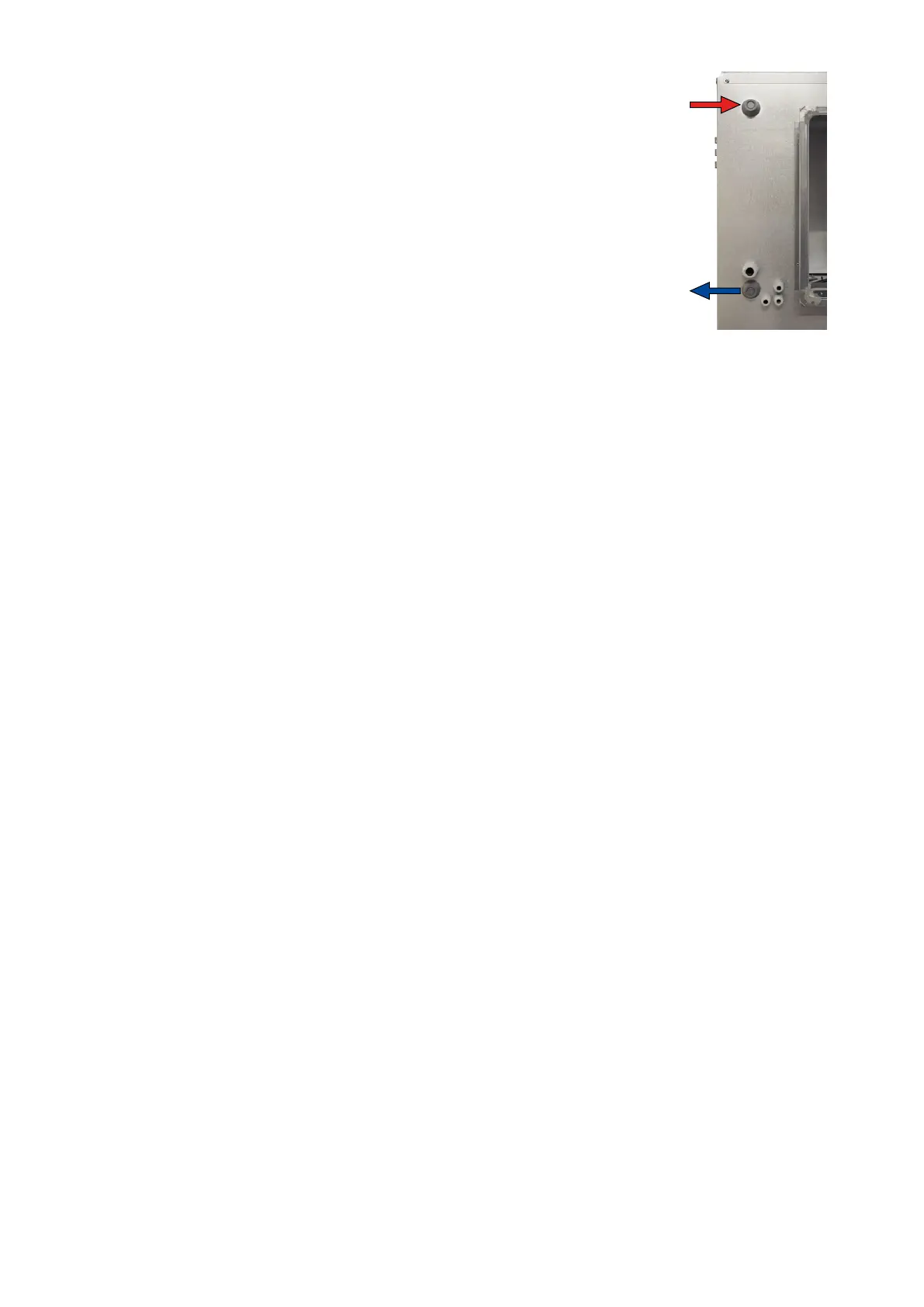

Supply flow
Return flow
IMPORTANT regarding Danfoss Actuator type AME 140:
R
einstallation of the actuator MUST be done in the following manner:
1. Disconnect the power supply and remove the cover from the actuator.
2. Release the gear by pressing and holding the button at the bottom of the actuator, while turning the
spindle fully (anticlockwise)
3. Install the actuator and connect the power supply.
4. Move DIP-switch no. 1 to ON, and then to OFF.
5. Calibration runs automatically for up to 6 minutes (LED flashes during calibration. Then steady
light).
6. Put the cover on the actuator.
32
