ZIGBEE™ NETWORKS (CONTINUED)
CONNECTING THE MASTER CHARGING BASE
At least one iRemote Charging Base must remain con-
nected to the IntelliControl ICS Modular MultiZone
Receiver, via a CAT-5 cable, to convert ZigBee radio
communication messages to system control commands.
Once connected, designate this base the “Master Charg-
ing Base” (See below). All other iRemote Charging
Bases in the system can be plugged into any unswitched
AC outlet to provide wireless two-way radio connectivity
and iRemote battery charging.
GXR2
7*%&0
065
$"4$"%&"6%*0
065
$0..
$0/5
CAT-5 Cable
12V DC
Power
Supply
iREMOTE Master
Charging Base
CONNECTING THE REMAINING
IREMOTE’S FOR NETWORK CONFIGURATION
All remaining iRemote’s must be placed in a charging
base and temporarily connected to the IntelliControl
ICS Modular MultiZone Receiver for network config-
uration. This ensures that both the handheld remote
controls and the charging bases will be configured cor-
rectly (See below).
Before proceeding, make sure you have decided which
iRemote charging base will be assigned as the Master
Charging Base. Place the MAC ID sticker on the GXR2
Installation worksheet.
7*%&0
065
$"4$"%&"6%*0
065
'.
"/5
5.".'.
".
"/5
-
3
$"4$"%&"6%*0
065
/JMFT"VEJP$PSQPSBUJPO.JBNJ'MPSJEB64"
CAT-5 Cables
iREMOTE Master
Charging Base
iREMOTE
Repeater Base
iREMOTE
Repeater Base
iREMOTE
Repeater Base
GXR2

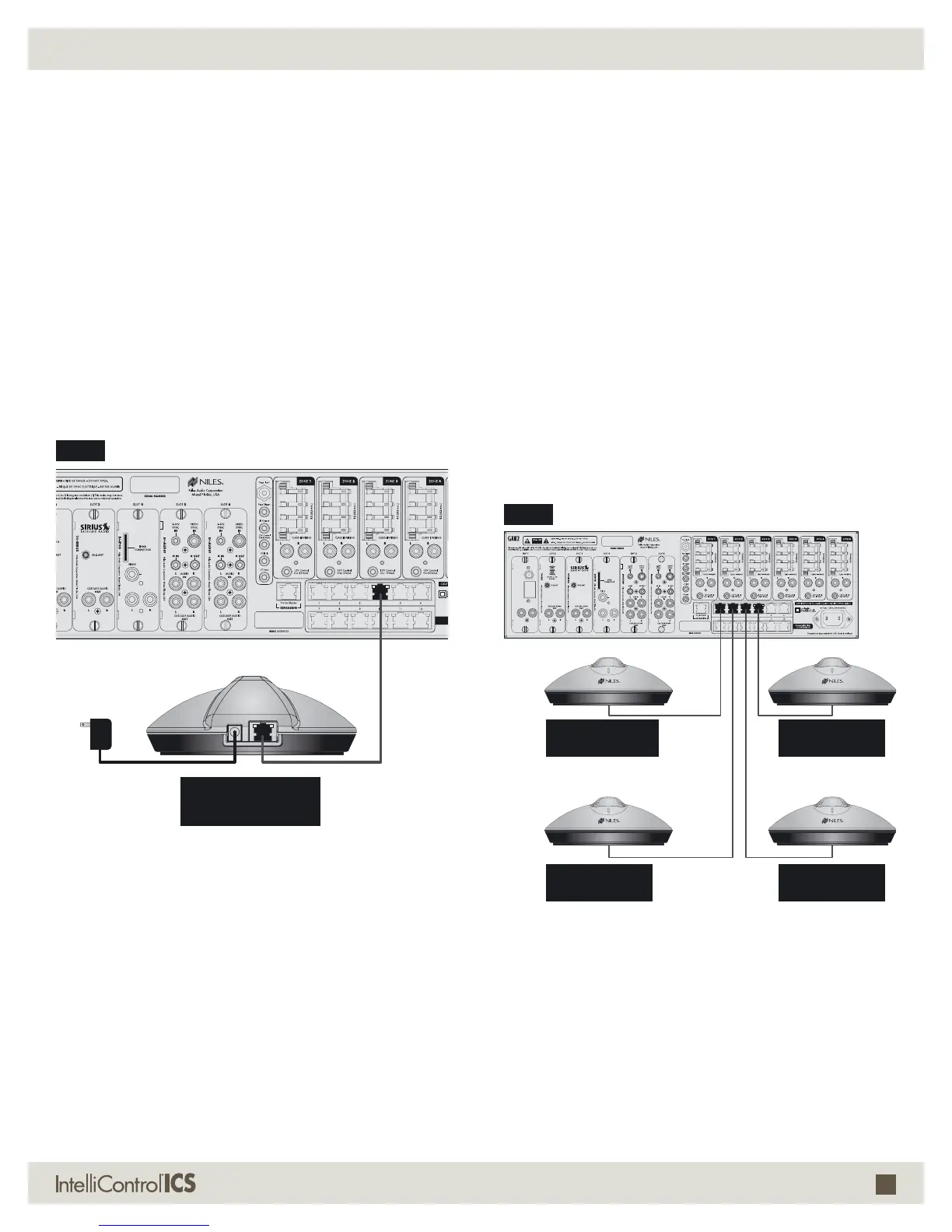

EXAMPLES OF INTELLICONTROL
®
ICS SYSTEM CONFIGURATIONS
To Next Page
