CONFIGURING THE iREMOTE
®
NETWORK
To ensure optimal two-way communication between
multiple iRemote’s and a IntelliControl ICS Modular
MultiZone Receiver, we have devised a methodology
that assigns and tracks 3 characteristics for each iRemote
in a system. During iRemote Network configuration,
each iRemote is assigned an Net work ID #, an RF Chan-
nel # and a unique Unit ID #.
Up to fifteen iRemote’s can exist on one RF Network.
Currently, two networks are provided to allow a total of
thirty iRemotes to communicate simultaneously, in a sin-
gle system. An advantage of utilizing this methodology
is that if your neighbor owns an IntelliControl ICS sys-
tem with iRemote’s, their iRemotes will not interfere with
the iRemotes from your system.
Confi guring the iRemote ZigBee RF Network is accom-
plished during system confi guration using the IntelliFile
®
3
software after all the components are connected and
powered up (see below).

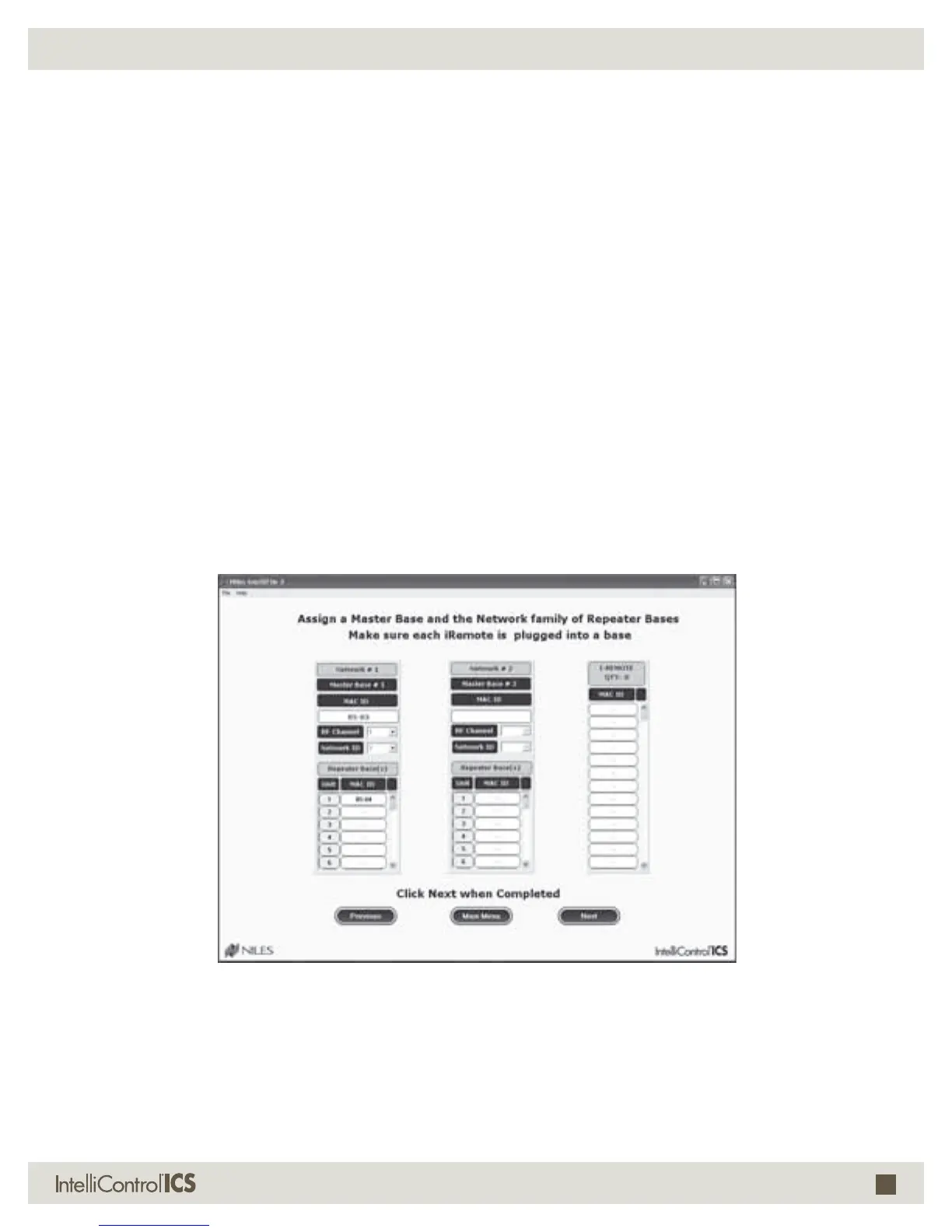

CONFIGURING THE iREMOTE NETWORK
Network ID #(1-15): Selects unique Network ID
number for the first fifteen iRemotes in a system.
RF Channel #(1-15): Selects a specifi c RF frequency for
communication to the system on the selected Network.
Unit ID #(1-15): Selects a unique ID Number for
each iRemote in the Network so multiple iRemotes can
simultaneously communicate to the system without any
interference.
EXAMPLES OF INTELLICONTROL
®
ICS SYSTEM CONFIGURATIONS
To Next Page
