79Service Manual – SC5000 14 - Wheel System, Non-Traction

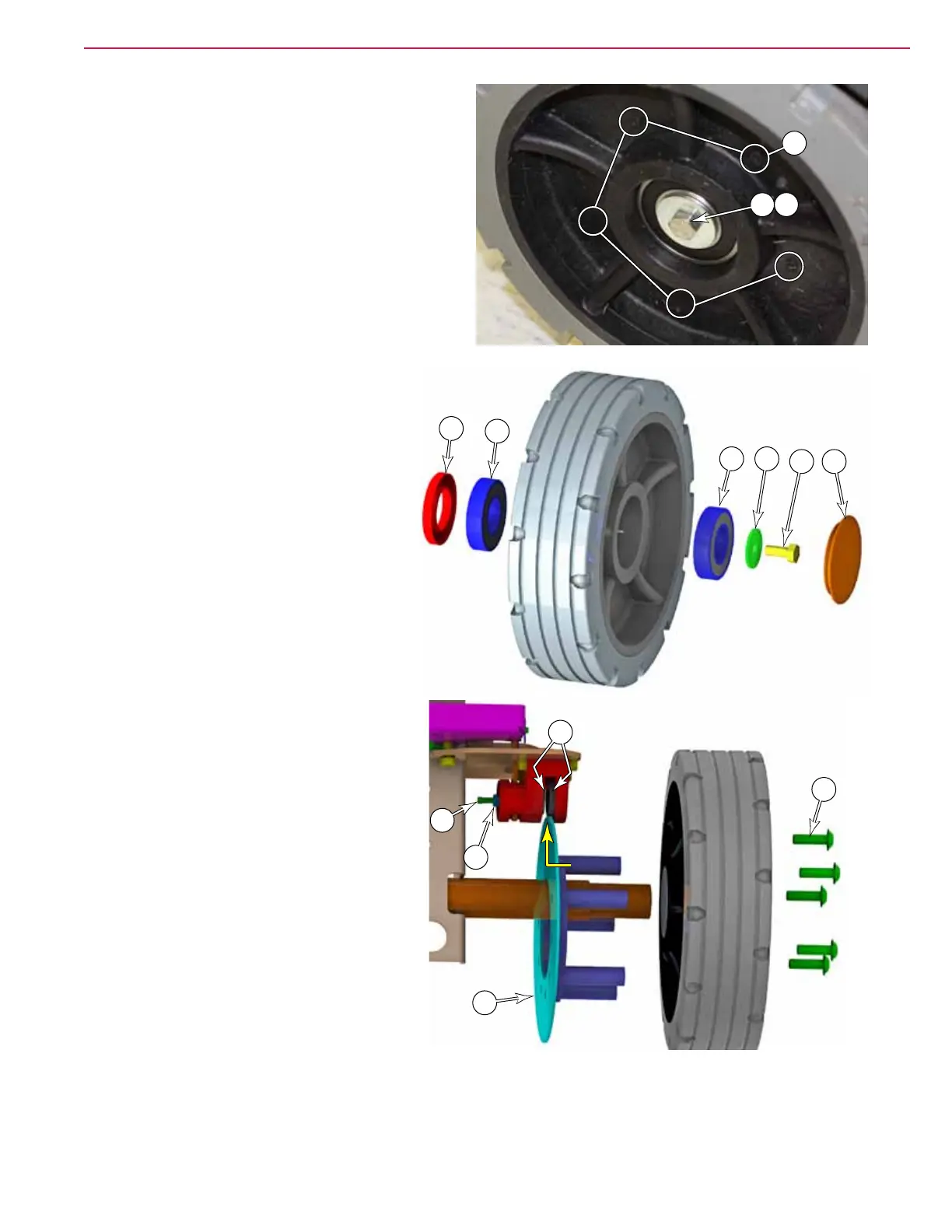

4. Remove the 5 screws (I) that secure the brake
rotor to the wheel, and rest the rotor on the axle.
5. Using a sharp tool, such as a knife or chisel, pry
the dust cap (L) off the wheel hub.
6. Using a 17mm socket, remove the screw (G) and
washer (H) that secures the wheel to the axle,
and remove the wheel.
7. Using a seal puller or similar means,
pull the inboard seal (K) from the wheel
hub.
• The act of removing the seal will
destroy the seal. You must replace
the seal with a new one.
8. Using a suitable bearing puller, remove
both the inboard and outboard bearings
(J).
Replacement
9. Press new bearings into the hub. Make
sure to press along the outer race (72mm
Ø) to avoid damaging the bearing.
10. Press a new inboard seal into the hub,
and apply a light lm of general purpose
lithium grease to the seal lip.
11. Apply a thin lm of anti-seize (loctite
LB 8150, LB 8009, or equal) to the axles
before installing the wheels.
12. Slide the rotor disk (S) in between the
inboard and outboard brake pads (T).
13. Slide the wheel on to the axle, and
reinstall the 5 screws (I) holding the
rotor to the wheel.
14. Reinstall the wheel.
G
H
I
K
J
J H
G L
S
Q
R
I
T
To Next Page
