Squeegee Lifting Cable Disassembly/Assembly
Disassembly
1. Remove the squeegee lifting assembly (see the
previous paragraph, steps 1 to 6).
2. At the workbench, remove the screw (A) and
recover the nut.
3. Carefully remove the squeegee lifting cable (B)
from the pulleys.
Assembly
4. Install the lifting cable and note the following:
◦ Apply AGIP GR 30 grease or equivalent on
the entire length of the cable.
◦ Insert the cable in the direction shown by the
arrow (C).
◦ Route the cable in the pulleys (D), (E) and (F)
in sequence.
◦ Fasten the cable grommet with the screw (A)
and nut.

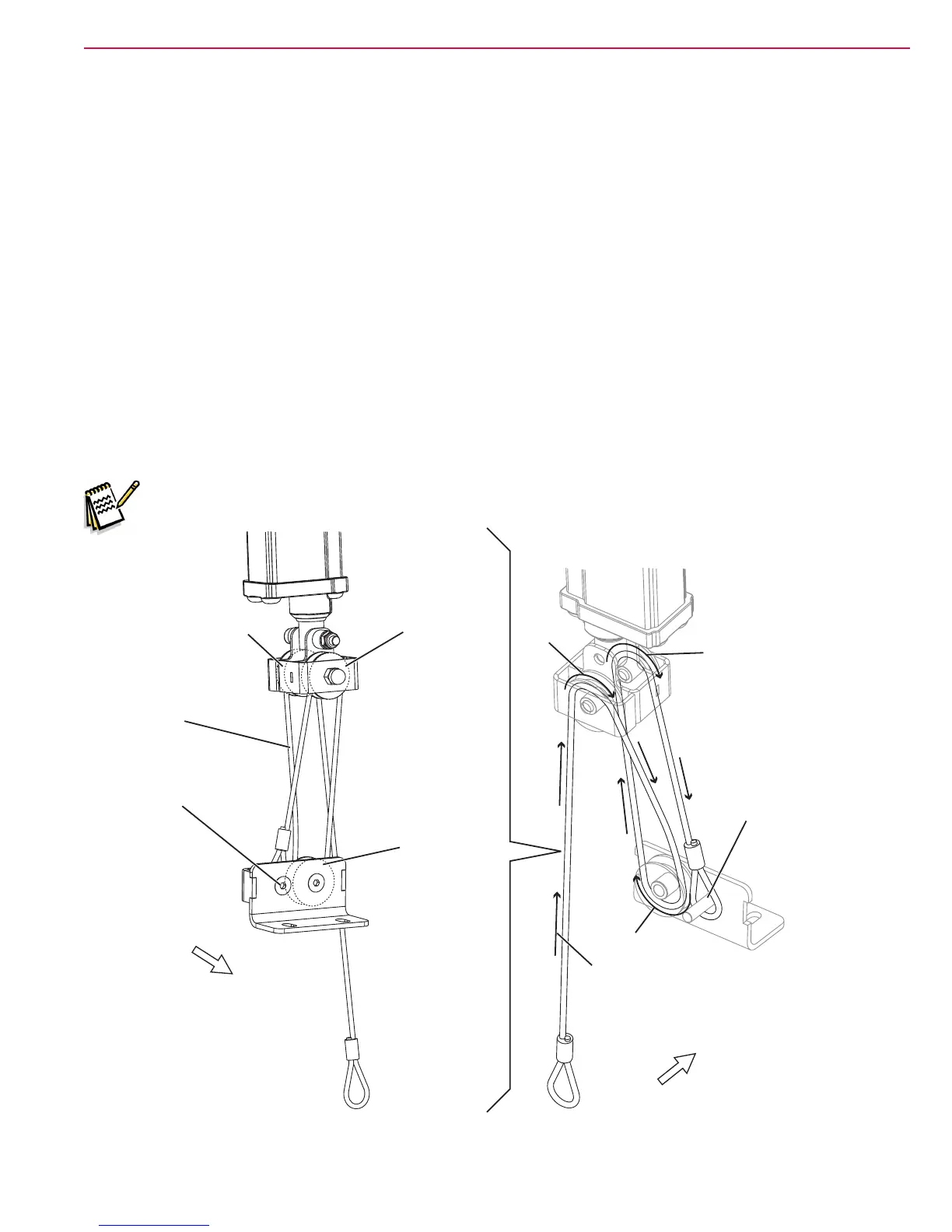

5. The components must be carefully installed as
shown in the gure for the proper operation of
the lifting system.
6. Install the squeegee lifting assembly (see the
previous paragraph).
7. Check the proper operation of the squeegee
lifting system.
Note: The squeegee lifting system pulleys are self-lubricating and do not require maintenance.
A
B
D
E
F
A
D
C
E
F
Front
Front
P100386
