Control System 34Service Manual – SC3000
Removal and Installation
Display Electronic Board and Dashboard Electronic Board Replacement

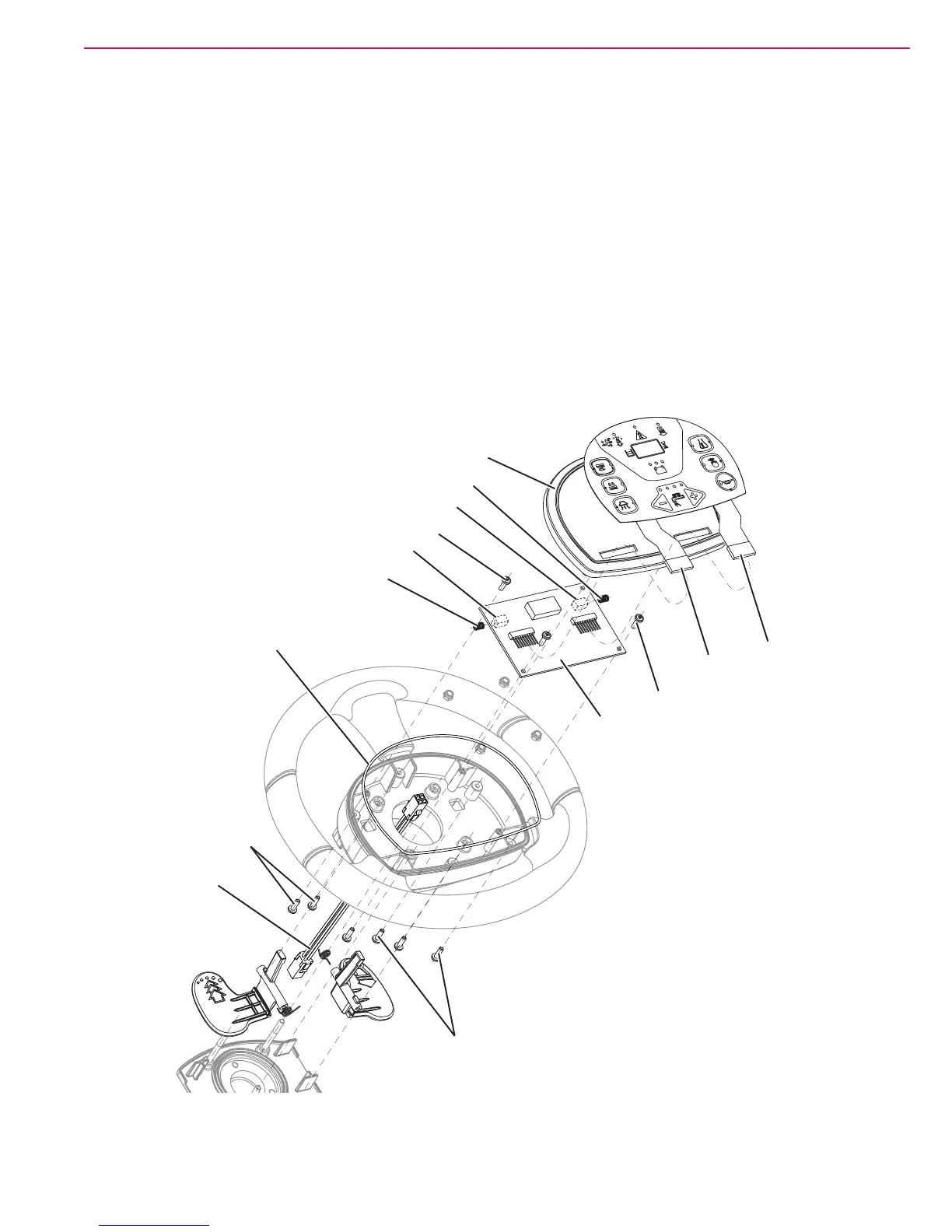

Display Electronic Board Disassembly
1. Drive the machine on a level oor.
2. Turn the ignition key to “0” and disconnect the batteries.
3. Remove the steering wheel height control lever and disconnect the wiring harness connection (A).
4. At the workbench, remove the screws (B), the cover (C) and recover the gasket (D).
5. Disconnect the at connections (E) and (F) from the display electronic board.
6. Remove the screws (I), remove the display electronic board (G) and recover the springs (J) of the
microswitches (K).
A
C
G
J
K
K
J
I
D
B
B
E
I
F
P100398
