Nilfisk-Advance SC3000

Scrub System, Cylindrical 64Service Manual – SC3000

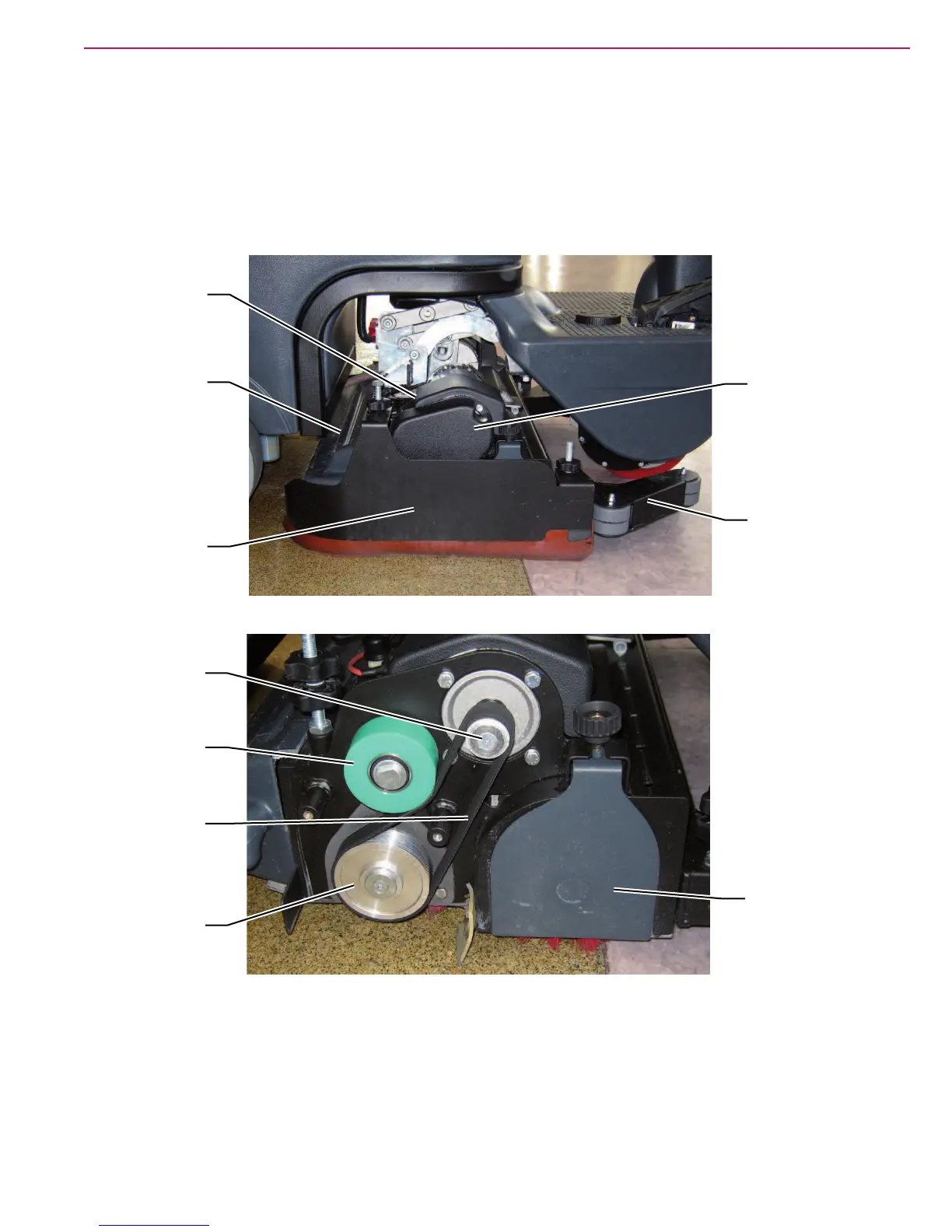

Component Location
• Cylindrical brush deck
• Debris container
• Side skirts
• Crankcase belt protection
• Front deck protection
• Motor pulley
• Roller belt tensioner
• Driving belt
• Brush pulley
• Support brush
Crankcase belt pro-
tection
1
4
2
3
Cylindrical brush
deck
Debris container
Side skirts
Front deck protec-
tion
P100565
10
6
12
11
5
Motor pulley
Roller belt tensioner
Brush pulley
Driving belt
Support brush
P100566
