Scrub System, Cylindrical 65Service Manual – SC3000

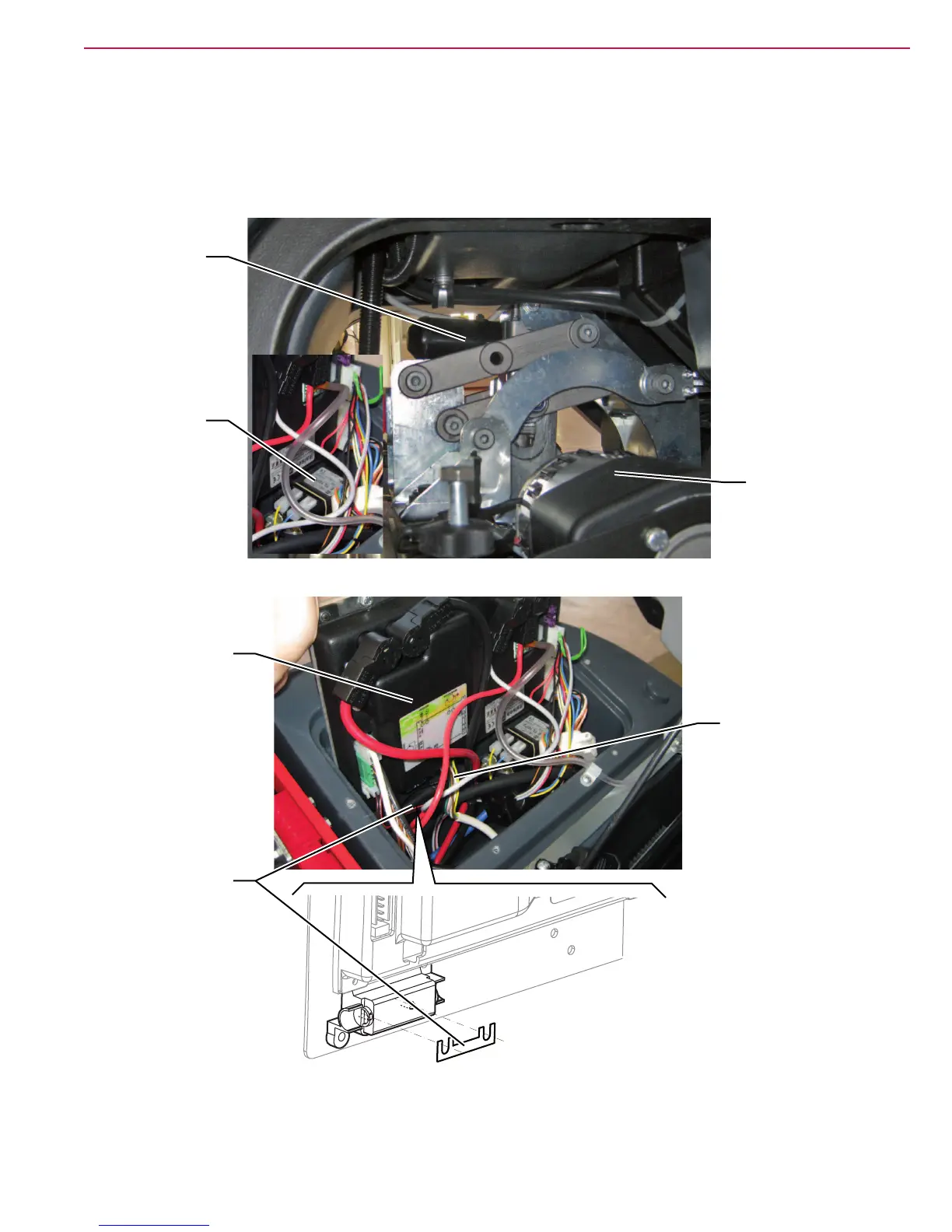

Component Location (continued)
• Brush deck lifting/lowering actuator
• Brush motor electromagnetic switch (ES1)
• Brush motor (M1.1 - M1.2)
• Function electronic board (EB1)
• Brush deck fuse (F1)
• Actuator system wiring harness connection
12
13
11
Brush deck lifting/
lowering actuator
Brush motor elec-
tromagnetic switch
(ES1)
Brush motor (M1.1 -
M1.2)
P100567
Brush deck fuse (F1)
(into fuse holder)
Function electronic
board (EB1)
Actuator system
wiring harness con-
nection
P100568
