Nilfisk-Advance SC3000 Service Manual

Electrical System 44Service Manual – SC3000

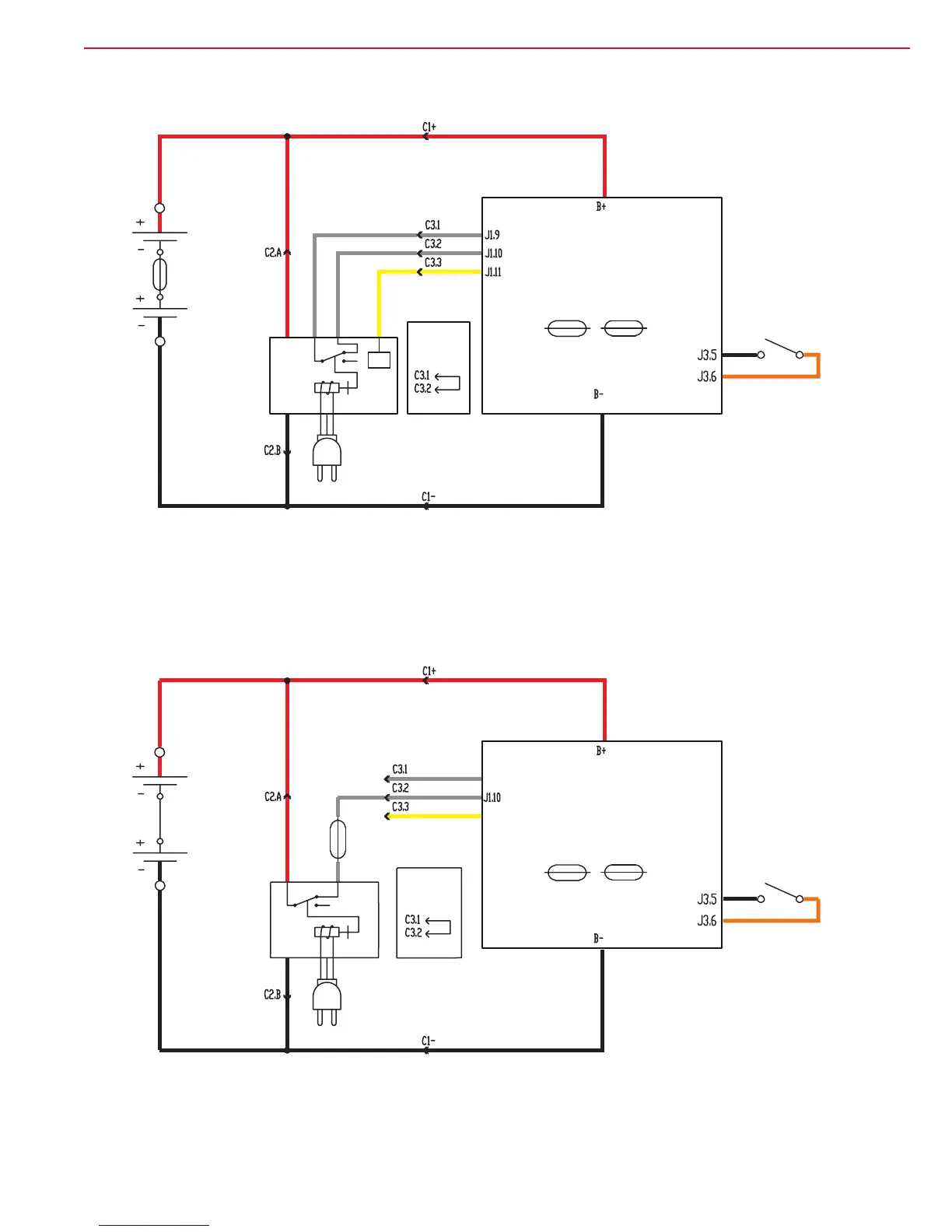

Wiring Diagram (SPE charger)
Power supply for key circuit
Return from key
Consent for battery charger
Enabling from battery charger
Battery charger data communication
24 V battery
box (BAT)
Battery fuse
(F0) (**)
Main electronic
board fuse (F2)
Function
electronic
board (EB1)
Signal circuit
fuse (F3)
Ignition
switch (K1)
Battery
charger (CH)
(*)
B+
B-
MP
P100554SPE
(*) Versions without on-board battery charger
(**) For Nilsk scrubbers version only
Wiring Diagram (Delta-Q charger)
Power supply for key circuit
Return from key
Enabling from battery charger
24 V battery
box (BAT)
Main electronic
board fuse (F2)
Function
electronic
board (EB1)
(***)
Signal circuit
fuse (F3)
Ignition
switch (K1)
Battery
charger (CH)
(*)
B+
B-
P100554DQ
(*) Versions without on-board battery charger
(***) F3 on the Function electronic board is not used. Its function is performed by the F3 fuse on the wire
